It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
• Test Oscillating Axles
WARNING
DO NOT operate any control on
platform control console without proper
fall protection secured to designated
location in platform. Failure to avoid this
hazard could result in death or serious
injury!
1. Extend y boom 12 in. (30 cm) while on a
rm level ground.
Result: The steer axles should be locked.
2. Drive one of the steer tires up onto a
6 in. (15 cm) block or curb.
Result: An appropriate tilt of the aerial
platform chassis should occur.
3. Retract y boom while in tilt position.
Result: The steer axles should unlock and
the aerial platform chassis should level
itself to ground.
• Test Cables (61T/66T)
1. Raise the main boom to approximately
horizontal.
2. Extend and retract the boom sections.
Result: There should be no delay in the
movement of the y boom section.

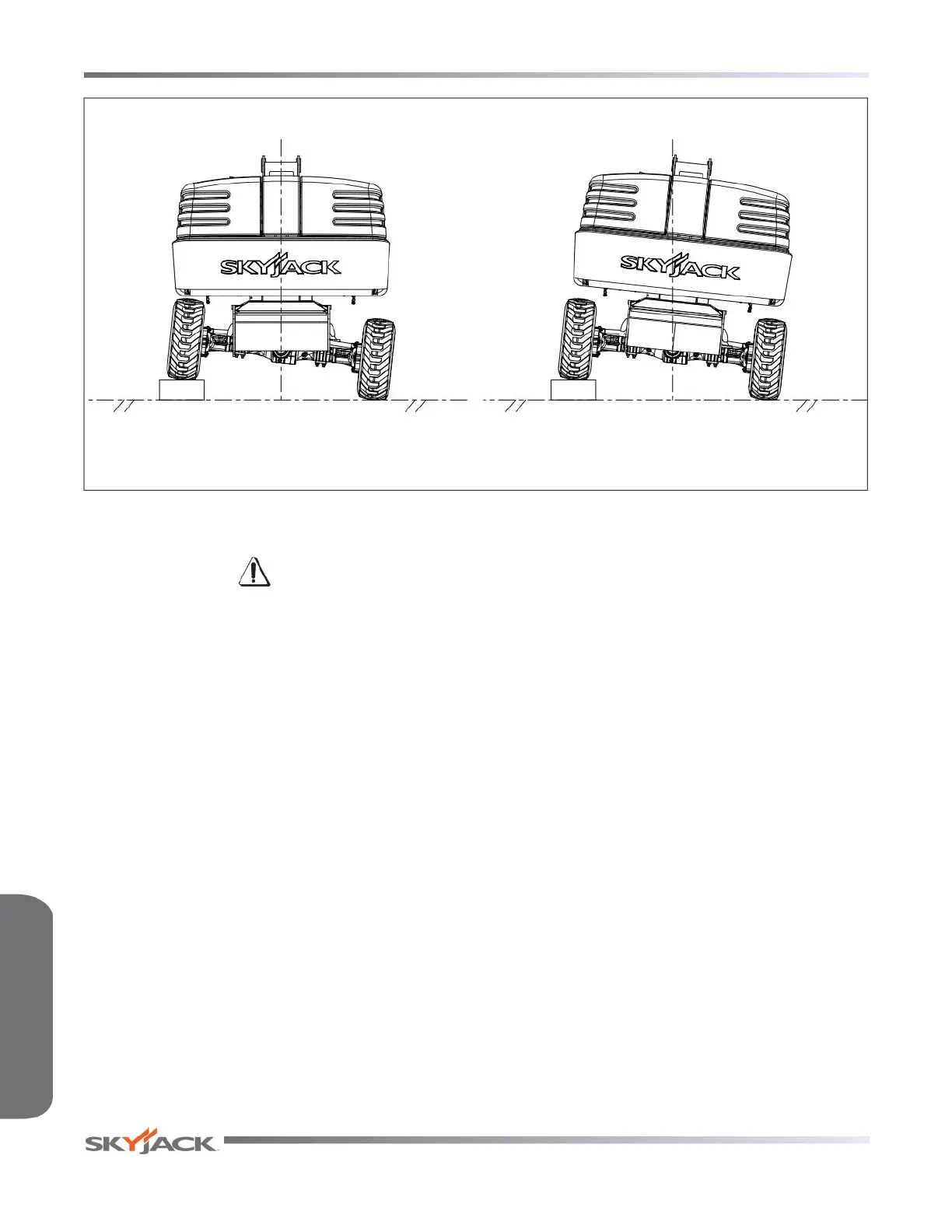

Oscillating Axle LockedOscillating Axle Unlocked
Page 38
SJ 40T & SJ 45T
SJ 61T & SJ 66T
Function Tests Section 2 - Familiarization
