Loading/Unloading Section 3 - Operation
3.10-2 Locking the Turret
1. Ensure that turret is positioned so that turret
transportation lock (item 1 - Figure 3-13) is aligned
into one of four turret locking points.
2. Pull out turret lock retaining pin (item 2 - Figure 3-13).
Lower turret lock into locked position and reinsert
turret lock retaining pin.
3.10-3a Lifting (40T/45T)
1. Place boom in stowed position (boom lowered and
fully retracted, jib fully down, if equipped) centered
between drive wheels. Lock turret using turret
transportation locking pin (refer to Section 3.10-2)
into one of two transport/lift points only (refer to
Figure 3-13).
2. Turn main power disconnect switch to “ ” off
position.
3. Clear platform of all personnel, tools and materials.
WARNING
When lifting the aerial platform, lifting
devices must be attached to designated
lift points only (refer to Figure 3-14).
WARNING
Use chains with load capacity sufcient
to withstand aerial platform weight.
Refer to the serial plate of the aerial
platform for specic weight.
4. Properly adjust rigging to ensure aerial platform
remains level during lifting. See Center of gravity
location (Figure 3-14).
2
1
Transport/Lift Point
Transport Point
Transport Point
Transport/Lift Point

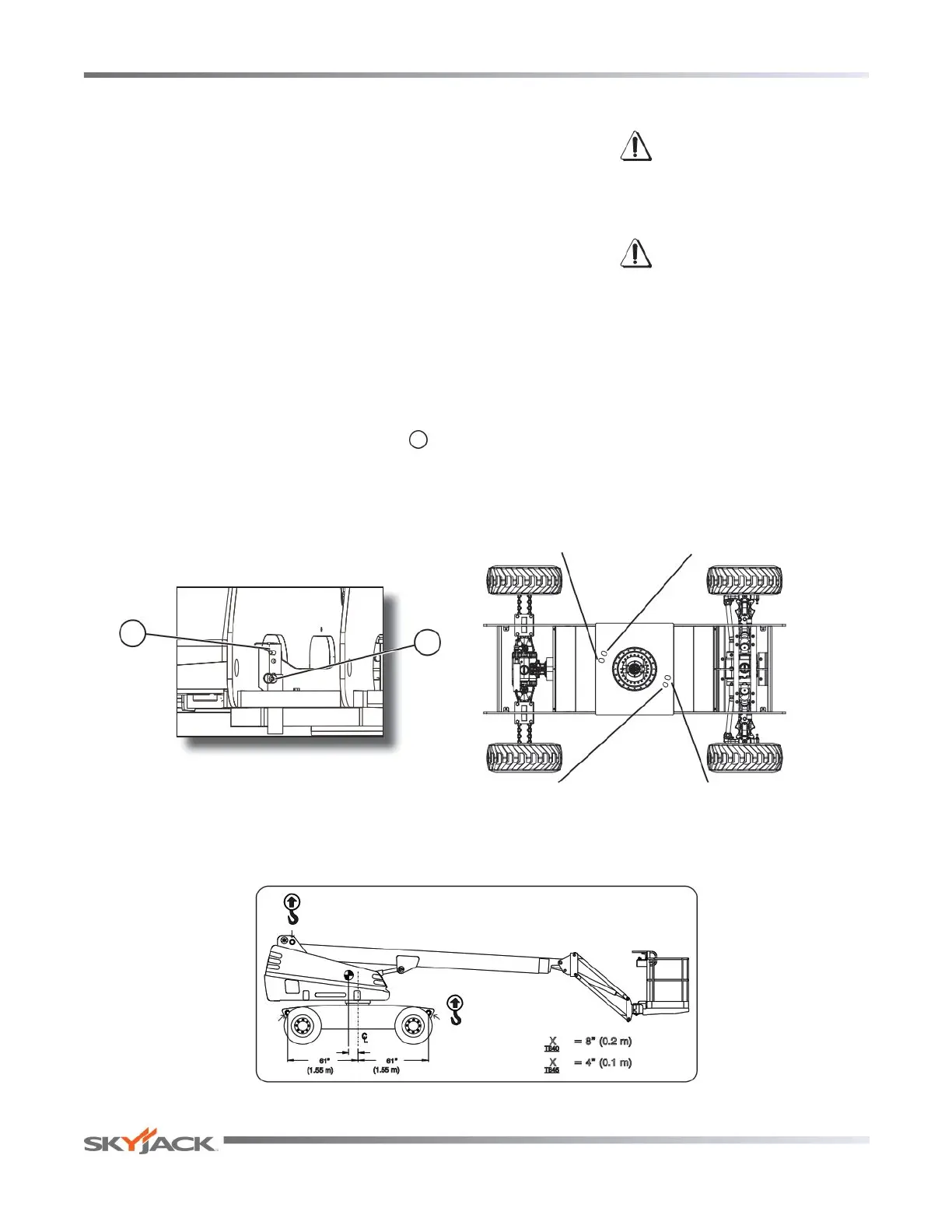

Figure 3-13. 40/45T Turret Transportation Lock & Locking Points
Figure 3-14. 40/45T Lifting Points
61”
X
C
L
X = 8” (0.2 m)
X = 4” (0.1 m)
