It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
2.3-11 Rotary Actuator
- Ensure there are no loose or missing parts and
there is no visible damage.
- Ensure all bolts and pins are properly tightened.
- Ensure all hoses are properly tightened and
there is no evidence of hydraulic leakage.
2.3-12 Jib (If Equipped)
- Ensure there are no loose or missing parts and
there is no visible damage.
- Ensure all bolts and pins are properly tightened.
- Ensure all hoses are properly tightened and
there is no evidence of hydraulic leakage.
2.3-13 Boom
- Ensure there are no loose or missing parts and
there is no visible damage.
- Ensure all bolts and pins are properly tightened.
- Ensure there are no visible cracks in welds or
structure and there are no signs of deformation.
- Ensure all hoses are properly tightened and
there is no evidence of hydraulic leakage.
• Cylinders
- Ensure all cylinders are properly secured
and there is no evidence of leakage.
• Wear Pads
- Ensure all bolts are tight, there is no visible
damage to the wear pads and that no parts
are missing.
• Hoses
- Ensure all hoses are properly tightened
and there is no evidence of hydraulic
leakage.
• Power Track
- Ensure there are no loose or missing parts
and there is no visible damage.
• Cables (61T/66T)
- Ensure there are no loose or missing parts
with no signs of visible damage.
- Ensure that nuts are not loose and are
locked together.
- Ensure that there are no gaps between
springs (see Figure 2-7). If there are
gaps, tighten nuts to remove gaps
and then add another half turn more.

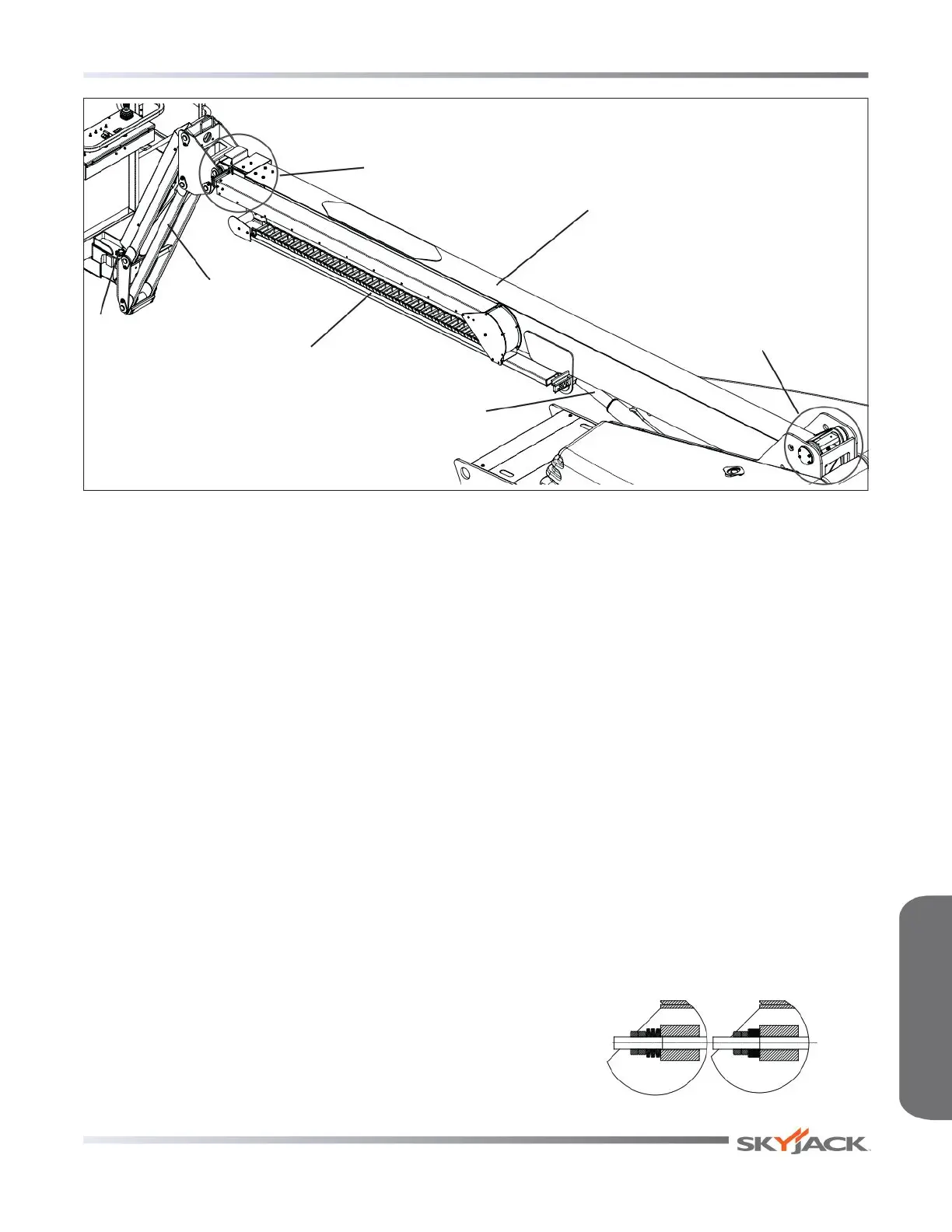

With Gaps No Gaps
Figure 2-7. Springs
Rotary Actuator
Jib
Boom
Power Track
Lift Cylinder
Wear Pad
Wear Pad
SJ 45T
SJ 40T & SJ 45T
SJ 61T & SJ 66T
Page 27
Section 2 - Familiarization Visual & Maintenance Inspection
