It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
• Fuel Leaks
- Ensure that there no fuel leaks.
DANGER
Engine fuels are combustible. Inspect
the aerial platform in an open, well-
ventilated area away from heaters,
sparks and flames. Always have an
approved re extinguisher within easy
reach.
- Ensure fuel tank, shutoff valve, hoses and
ttings show no visible damage and no
evidence of fuel leakage.
2.3-7 Base
• Turret Transportation Lock
- Ensure turret transportation lock is
unlocked, there are no loose or missing
parts and there is no visible damage.
• Drive Axle
- Ensure drive axle is properly secured,
there are no loose or missing parts, all
ttings and hoses are properly tightened
and there is no evidence of hydraulic
leakage.
• Oscillating Cylinder Assembly
- Ensure oscillating cylinder assembly is
properly secured, there are no loose
or missing parts, all ttings and hoses
are properly tightened and there is no
evidence of hydraulic leakage.
NOTE
Oscillating axle is locked when aerial
platform is in low speed. Refer to
Diagram 3.5 Axle Oscillation Diagrams.
• Steer Cylinder Assembly
- Ensure steer cylinder assembly is
properly secured, there are no loose
or missing parts, all ttings and hoses
are properly tightened and there is no
evidence of hydraulic leakage.
• Tie Rod
- Ensure there are no loose or missing
parts, tie rod end studs are locked and
there is no visible damage.
• Wheel/Tire Assembly
The aerial platform is either equipped with
air tires or foam-lled tires. Tire and/or wheel
failure could result in an aerial platform tip
over. Component damage may also result if
problems are not discovered and repaired in
a timely fashion.

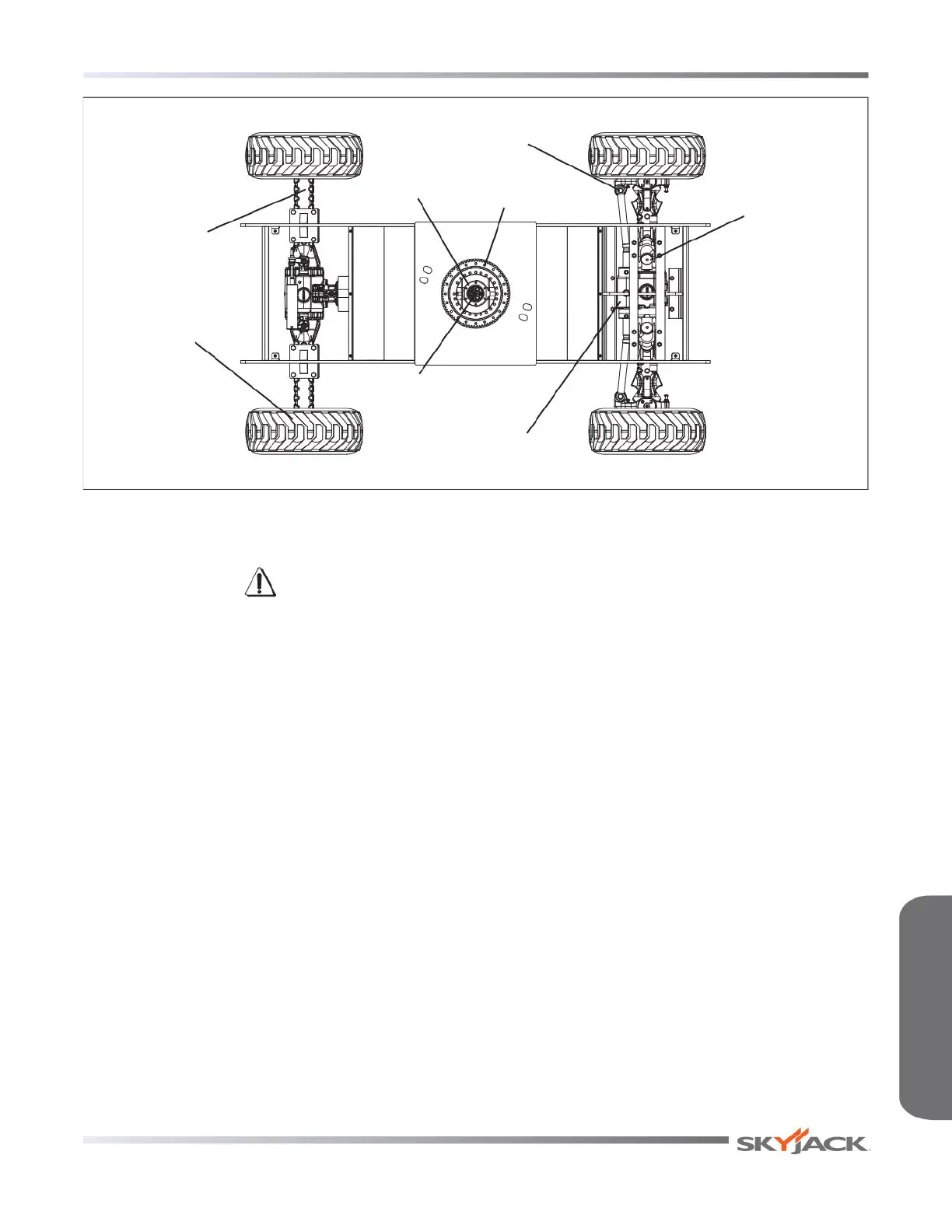

Wheel/Tire
Assembly
Tie Rod
Steer Cylinder
Assembly
Oscillating
Cylinder
Assembly
Turret Rotation
Gear
Rotary
Manifold
Limit Switch
Drive Axle
Overhead View
SJ 40T & SJ 45T
SJ 61T & SJ 66T
Page 25
Section 2 - Familiarization Visual & Maintenance Inspection
