Component Identification Operation - Section 3
3.5 Component Identification
The following descriptions are for identification,
explanation and locating purposes only.
3.5-1 Turret Transportation Lock
This locking device is located in the turret.
2
1

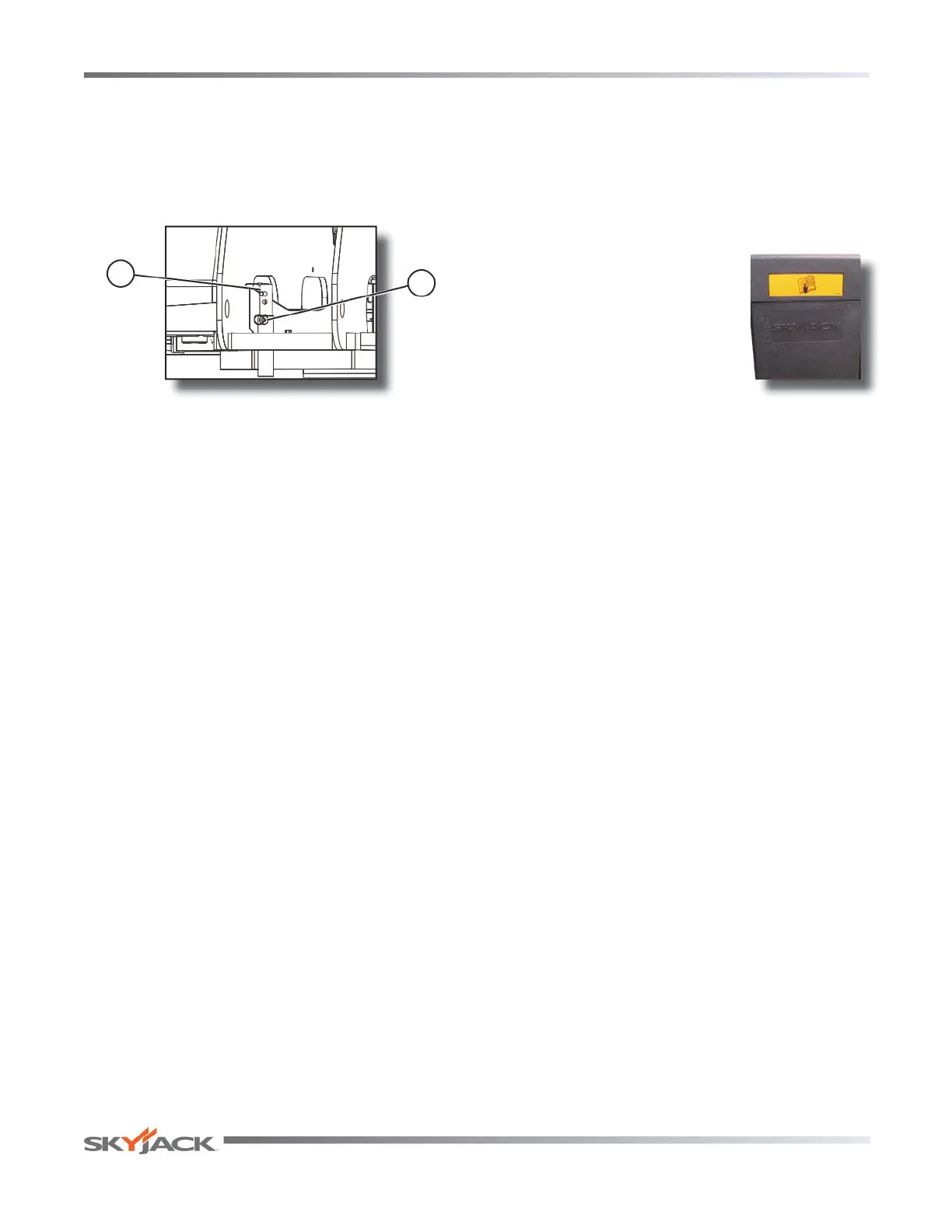

Figure 3-1. Turret Transportation Lock
1. Turret Transportation Lock - This locking device
is used to lock turret in place during shipping only.
2. Turret Transportation Lock Retaining Pin - This
retaining pin is used to hold transportation lock
in either locked or unlocked position.
Refer to Section 3.10-2 for procedure on how to lock
the turret.
3.5-2 All Motion Alarm
This alarm produces an audible sound when any boom
function is activated. On aerial platforms with certain op-
tions, a ashing amber light will accompany this alarm.
3.5-3 Manual Storage Box
This weather-resistant box is mounted under the
control console on the platform. It
contains operating manual and other
important documents. The operating
manual for this make and model of
aerial platform must remain with the
aerial platform and should be stored
in this box.
