It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
• Test Brakes
WARNING
Brakes will engage instantly when
you release footswitch, causing aerial
platform to stop immediately.
1. Move aerial platform to a rm level surface
to ensure similar traction on left and right.
2. Ensure boom is in stowed position.
3. Depress and hold footswitch and drive
aerial platform rst “ ” forward then “ ”
reverse at full speed.
4. Remove your foot from footswitch.
Result: Aerial platform should come to an
instant and abrupt stop. If aerial platform
does not stop immediately, or if aerial
platform pulls to one side while stopping,
do not operate aerial platform until brake
adjustments have been checked.
• Test Manual Platform Leveling
1. Depress and hold footswitch.
2. On platform leveling override switch,
select “ ” up position to tilt platform
up or “ ” down position to tilt
platform down.
Result: Platform should tilt up or down.
• Test Differential Lock Switch
WARNING
Before engaging differential lock,
ensure drive/steer controller is in
neutral position.
1. On platform control console, push
d i f fe r en t i al l o c k s w i tc h f o r wa r d
“ ” to the locked position and then
release.
Result: Differential light should turn on.
Differential lock should be engaged.
2. Pull differential lock switch backward
“ ” to the unlocked position and then
release.
Result: Differential light should turn off.
Differential lock will disengage when
drive torque is released. Refer to
Section 3 for operation.

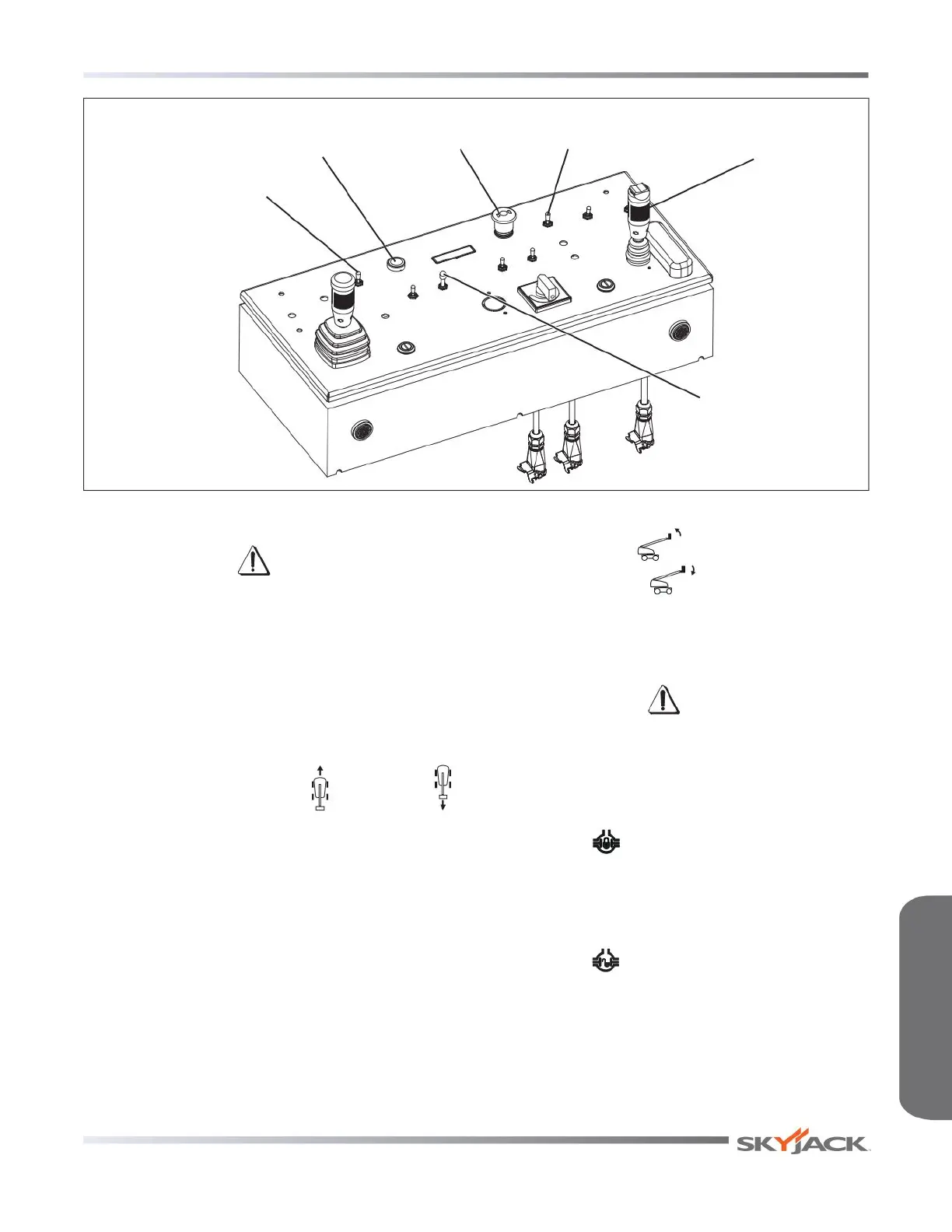

Drive/Steer
Controller
Horn
Emergency Power
Switch
Emergency Stop
Engine Start/On/
Off Switch
Platform Leveling
Override Switch
SJ 40T & SJ 45T
SJ 61T & SJ 66T
Page 37
Section 2 - Familiarization Function Tests
