It is the responsibility of the operator to read, completely understand and follow all instructions and warnings
contained in this operating manual and on the aerial platform.
FAMILIARIZATION
8. Fly Boom Extend/Retract Switch - This switch
controls “ ” extension or “ ” retraction of
y boom.
9. Jib Up/Down Switch (If Equipped) - This switch
controls “ ” up or “ ” down movement
of jib.
10. Platform Leveling Override Switch - This switch
overrides automatic leveling of platform and
controls “ ” tilting up or “ ” tilting down
of platform.
11. Engine Diagnosis Switch - When held in either
direction, this switch “ ” enables an error blink
code for engine control unit (ECU).
12. Circuit Breakers - In the event of a power overload
or positive circuit grounding, the circuit breaker
pops out. Push breaker back in to reset.
13a. Status Indicator Pilot Lights - These lights
indicate operational status and errors in any
function in the controls/engine.
A B C D E F
A. Water In Fuel Light - This light indicates water
separator is full. Open drain to release water.
Engine damage could occur if ignored for
excessive length of time.
B. Engine Oil Pressure - This light indicates low
engine oil pressure.
C. Engine Coolant Temperature/Level - This
light indicates overheating of engine coolant
and low level of engine coolant.
D. Engine - This light indicates failure in engine
control system.
E. Fuel - This light indicates low fuel level.
F. Glow Plug (Diesel) - This light illuminates
until glow plugs have completed their timed
cycle. When the lamp goes out, the engine is
ready to be started.
2.2-7 Base Control Console (Continued)
12 11
1
2
3a
10
9
76
13a
54a
8
3b
3c
13b
4b
14

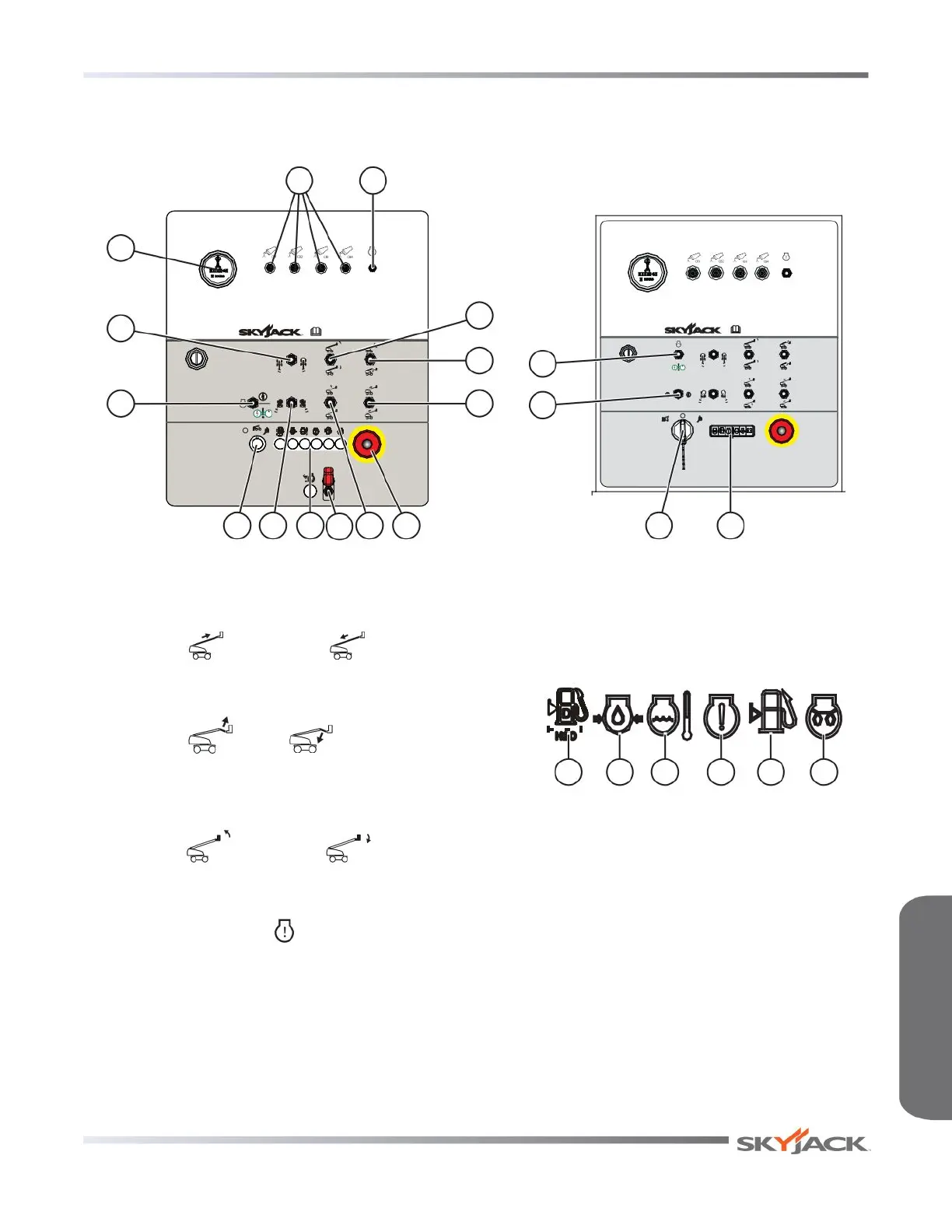

Figure 2-5. Base Control Console
SJ 40T & SJ 45T
SJ 61T & SJ 66T
Page 17
