Section 3 - Operation Diagrams

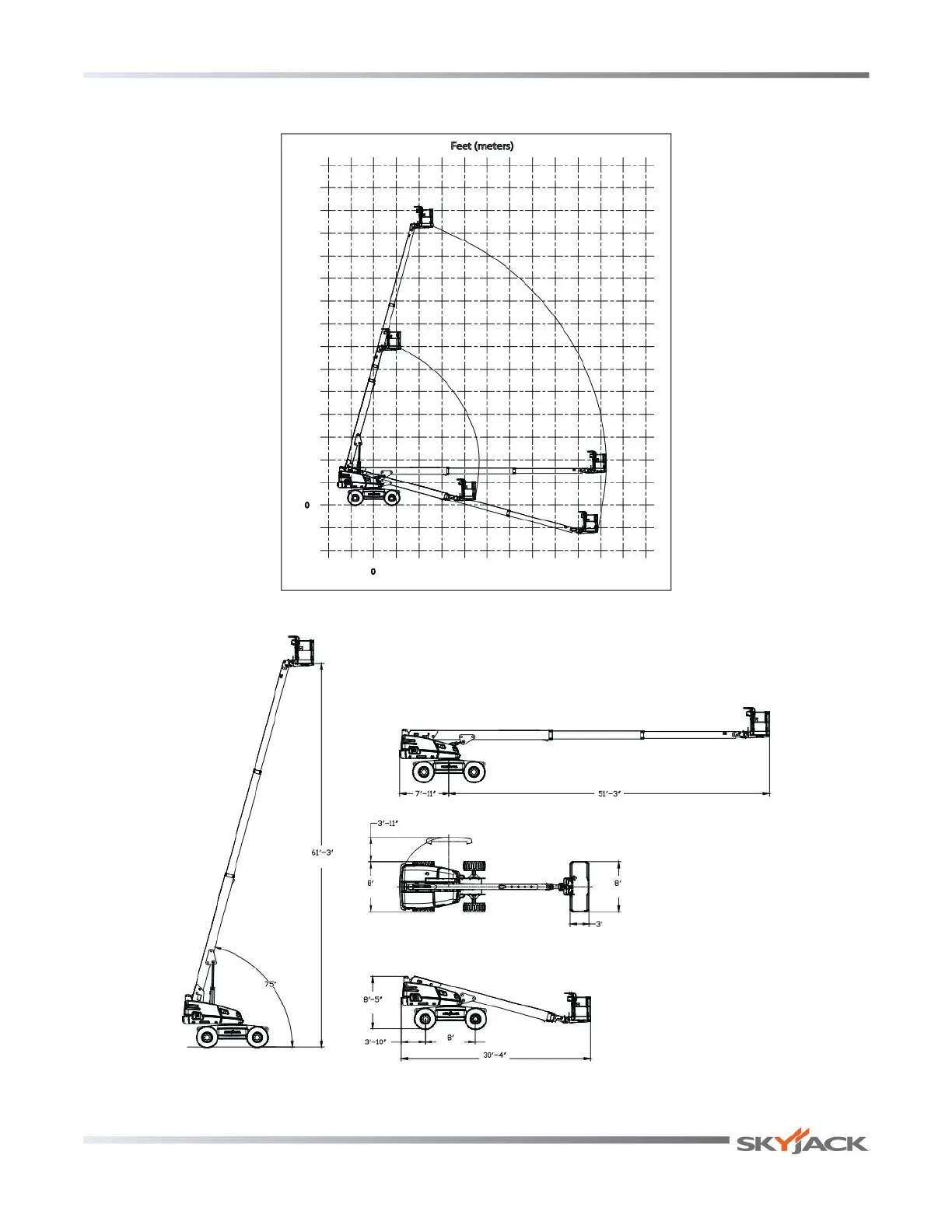

Diagram 3.3 Dimension and Reach Diagram - SJ 61T
75
(22.86)
70
(21.34)
5
(1.52)
60
(18.29)
55
(16.76)
50
(15.24)
45
(13.72)
40
(12.19)
35
(10.67)
30
(9.14)
25
(7.62)
20
(6.10)
15
(4.57)
10
(3.05)
-5
(-1.52)
-10
(-3.05)
Feet (meters)
65
(19.81)
60
(18.29)
55
(16.76)
50
(15.24)
45
(13.72)
40
(12.19)
35
(10.67)
30
(9.14)
25
(7.62)
20
(6.10)
15
(4.57)
10
(3.05)
5
(1.52)
-5
(-1.52)
-10
(-3.05)
Figure 3-24. Reach Diagram - 61T
(2.41 m) (15.63 m)
(18.67 m)
(1.20 m)
(2.43 m) (2.43 m)
(0.92 m)
(2.56 m)
(9.24 m)
(2.44 m)
(1.18 m)
Figure 3-25. Dimension - 61T
