Symbols & Nomenclature Section 1 – About Your Telehandler
Symbol Description Symbol Description
D
Diesel Fuel
Fuel Tank
Engine Oil Level
Engine Air Intake Hydraulic Oil
Engine Coolant Hydraulic Oil Level
Engine Coolant Level Positive Air Shutoff (Engine high idle)
Drain Water/Fuel Separator Transmission Oil Level
Engine Oil

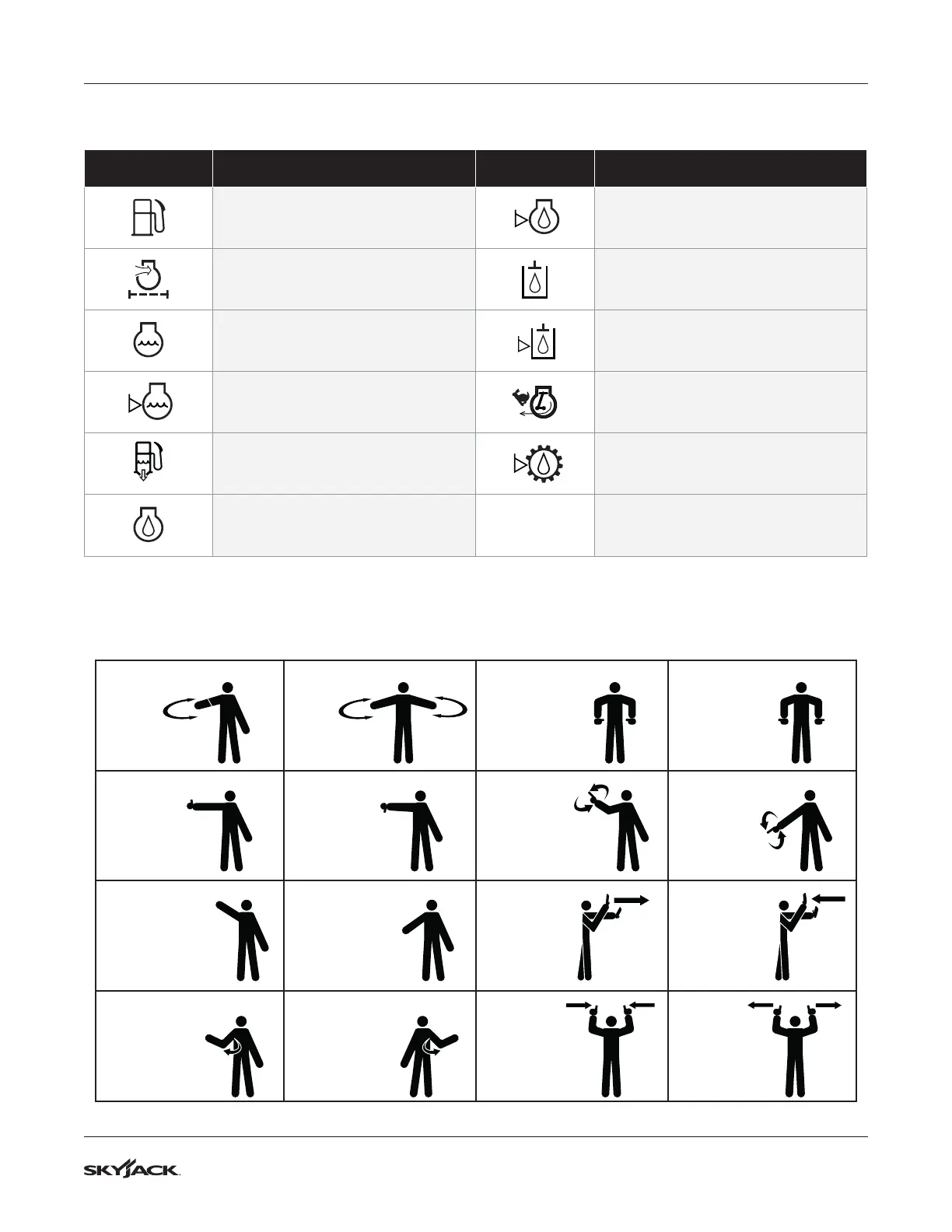

1.2 Symbols & Nomenclature
1.3 Forklift Hand Signals
1. Stop 3. Retract boom
2. Emergency
Stop
7. Hoist load 8. Lower load
9. Tilt forks/attachment
up
10. Tilt forks/
attachment
down
5. Raise boom/mast
6. Lower boom/mast
11. Travel
backwards
12. Travel
forwards
4. Extend boom
13. Swing
attachment
left
14. Swing
attachment
right
15. Fork Spread -
Closed
16. Fork Spread -
Open
