Section 3 – Familiarization Optional Equipment
3.5-7 Back-up Sensor/Camera with
Monitor (If Equipped)
The back-up monitor is mounted on the dash inside
the cab and operational when the key switch is in on
position. When active, the monitor displays the area
behind the telehandler. A green status symbol
3
indicates the sensor and camera are connected and
no objects are detected.
When in reverse and objects are detected, the monitor
beeps, the status symbol turns red, and range
symbols
2
indicate distance to the objects. As
objects become closer the range symbols increase
in number and change to red. Five symbols indicate
immediate proximity.
3
1
2

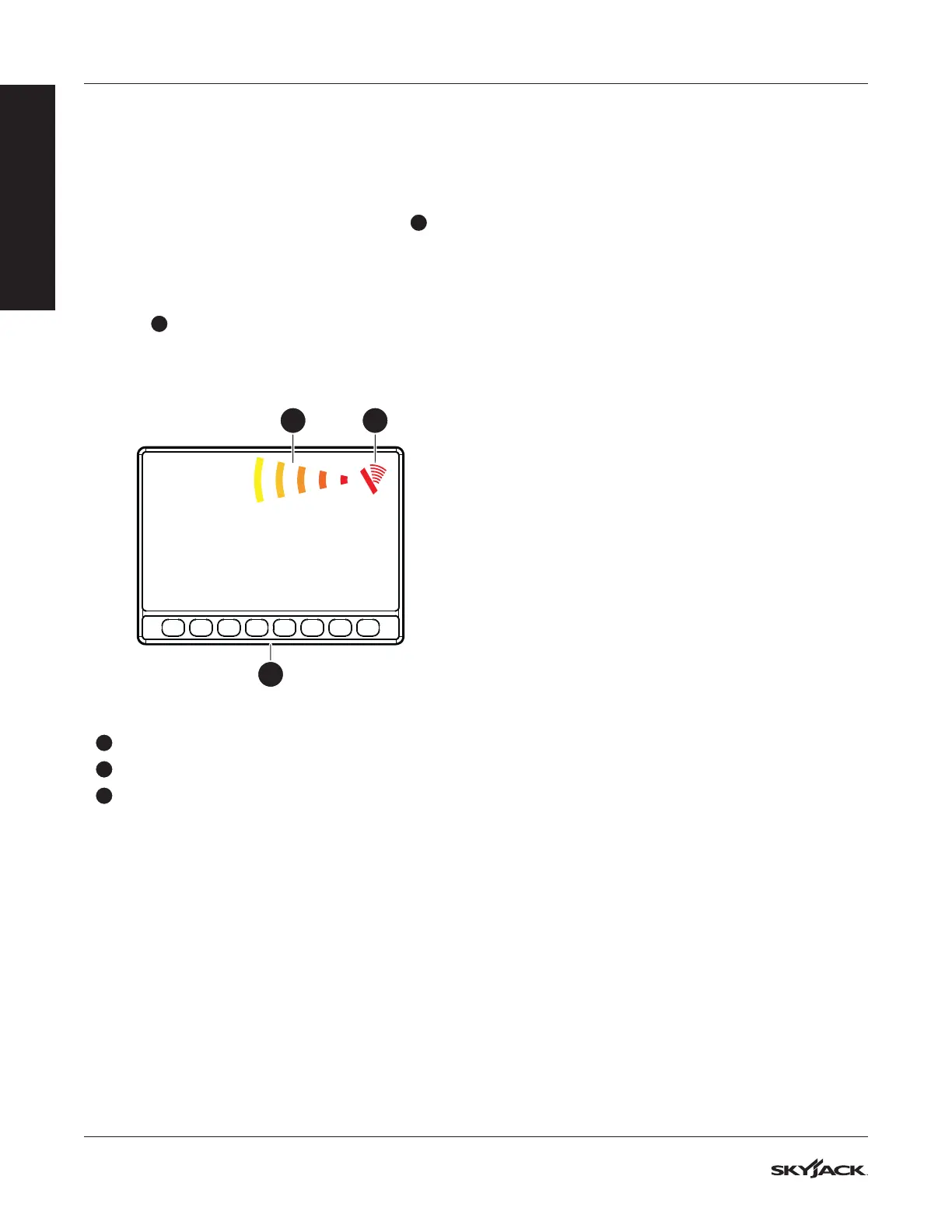

Figure 09 Back-up Monitor and Symbols
1
Back-up Monitor
2
Range Indicator symbols
3
Sensor/Camera status symbol
