Skyjack SJ643 TH - 3.2 Manual Storage Box; 3.3 Operators Cab Controls

SJ643 TH & SJ843 TH 216201ADA
23
Manual Storage Box Section 3 – Familiarization
FAMILIARIZATION

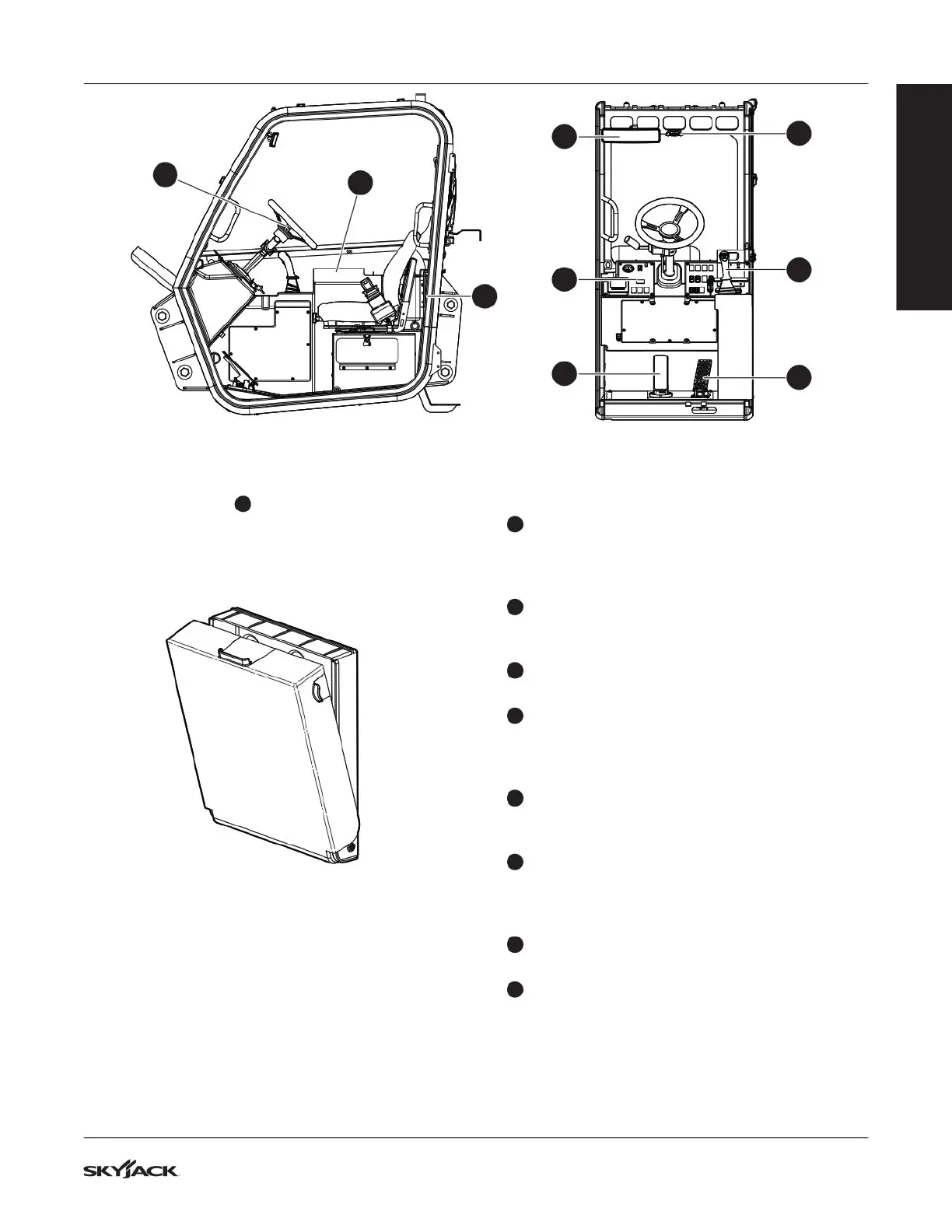

3.2 Manual Storage Box
This weather-resistant box is mounted at the back
of the operator’s seat
1
. It contains the operating
manual and other important documentation. The
operating manual for this make and model of
telehandler must remain with the telehandler and
should be stored in this box.
Figure 04 Manual Storage Box
3.3 Control Functions
3.3-1 Operator’s Cab Controls
2
Steering Wheel: Turn the steering wheel to
the left or right to steer the telehandler in the
corresponding direction. Three steering modes
are available (refer to Section 5.3).
3
Cab Heater and Air Conditioner Controls (If
Equipped): A switch and two knobs to adjust the
temperature inside the cab.
4
Rear View Mirror: Allows the operator to check
the surrounding area behind telehandler.
5
Level Indicator: Located on the upper cross
member of the overhead guard. When the ball
is centred in the indicator, this indicates that
telehandler frame is level.
6
Front Dash: Location of controls essential to
the operation of the telehandler (refer to Section
3.3-4 for details).
7
Multi-functional Joystick: A control allowing
the operator to control boom and attachment
operation (refer to Section 3.3-2 or Section 3.3-3
for details).
8
Service Brake Pedal: The service brake is foot
operated and is used to decrease speed or stop.
9
Accelerator Pedal: Press pedal to increase
speed and release pedal to decrease speed.
5
9
7
1
4
3
2
6
8
