Use of the Capacity Charts Section 5 – Operation

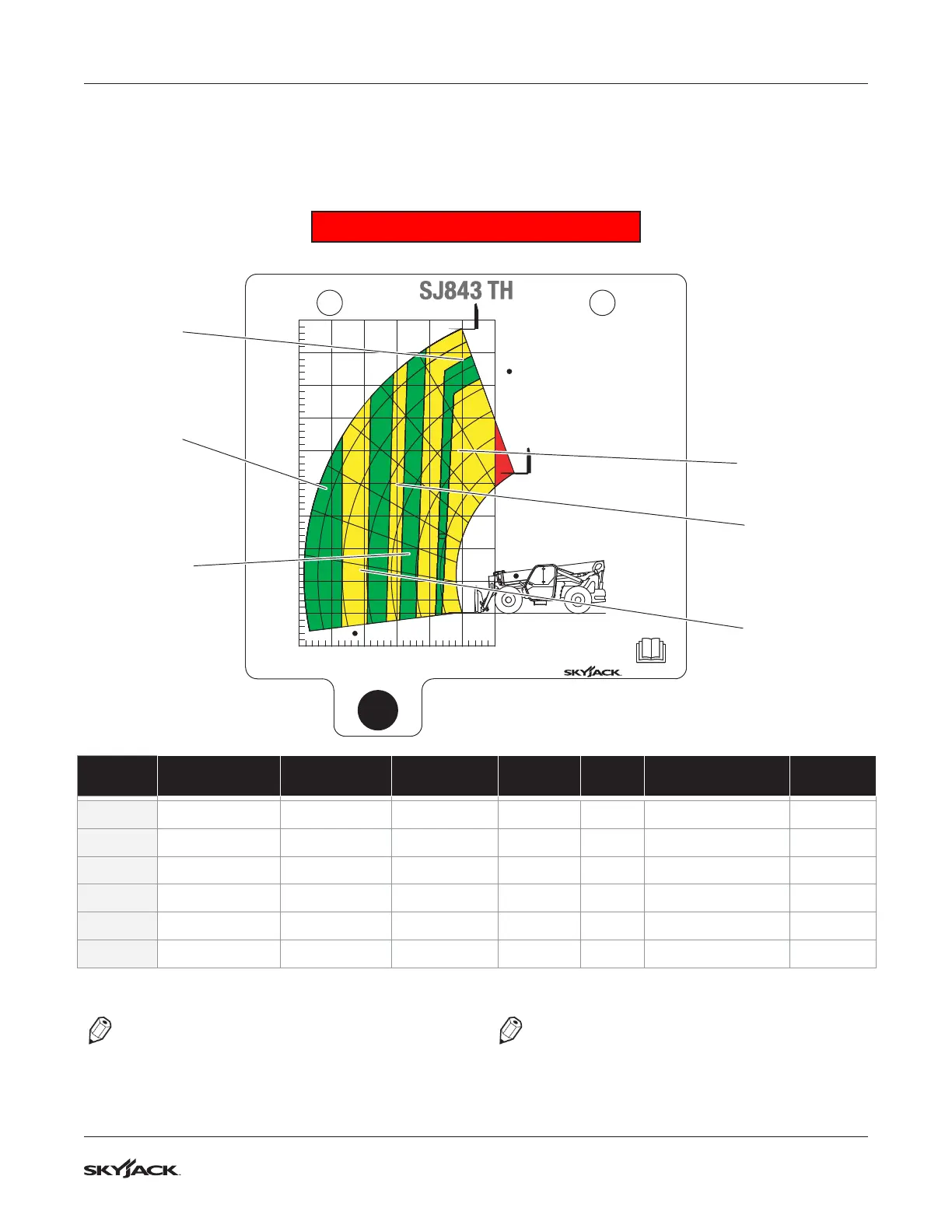

5.12-1 Examples on Reading the Capacity Chart
The Operator must verify that the capacity chart corresponds with both telehandler and attachment model
number.
The following scenarios show various conditions the operator may encounter:
NOTE
This is a sample capacity chart only! DO NOT use
this capacity chart. Use chart inside cab.
NOTE
If the intersection occurs on a bold line
separating the capacity regions, the smaller of the
two capacity values must be used.
SAMPLE ONLY - USE CHART IN CAB
Example 4
Example 5
Example 3
Example 1
Example 6
Example 2
2
PAGE 3
3000 LBS
Carriages: 48, 60, & 72 Inch Wide
Side Tilt Carriages
Forks: 2.25 x 5 x 48 Standard Taper
2.25 x 5 x 60 Standard Taper
2 x 5 x 48 Standard Taper
2 X 5 X 60 Standard Taper
1.75 x 7 x 48 Full Taper
1.75 x 7 x 60 Full Taper
Rated capacity at 24" load center
FORWARD REACH (FT)
LIFT HEIGHT (FT)
-5
45
40
35
0
30
25
20
15
10
5
0
30
25
20
15
10
5
7000 LBS
5000 LBS
8000 LBS
5900 LBS
4000 LBS
2000 LBS
In the event the load capacity of
the attachment or forks is less
than this load chart capacity, do
not exceed capacity marked on
the attachment or fork.
-7°
50°
40°
60°
70°
30°
20°
10°
0°
G
F
E
D
C
B
B
C
D
E
F
G
1400 LBS
No operation
zone
Examples Load Weight
Forward
Reach
Lift Height
Boom
Angle
Boom Capacity OK to Lift
1 7200 lb (3 266 kg) 6 ft (1.8 m) 25 ft (7.6 m) 54° C 8000 lb (3 629 kg) YES
2 5700 lb (2 585 kg) 15 ft (4.6 m) 20 ft (6.1 m) 34° D 4000 lb (1 814 kg) NO
3 3600 lb (1 633 kg) 21 ft (6.4 m) 7 ft (2.1 m) 9° E 2000 lb (907 kg) NO
4 5500 lb (2 495 kg) 5 ft (1.5 m) 38 ft (11.6 m) 67° F 5900 lb (2 676 kg) YES
5 1380 lb (626 kg) 26 ft (7.9 m) 17 ft (5.2 m) 22° G 1400 lb (635 kg) YES
6 5100 lb (2 313 kg) 12 ft (3.7 m) 10 ft (3 m) 19° C 5000 lb (5 000 kg) NO
