Section 4 – Pre-operation Visual & Daily Maintenance Inspections

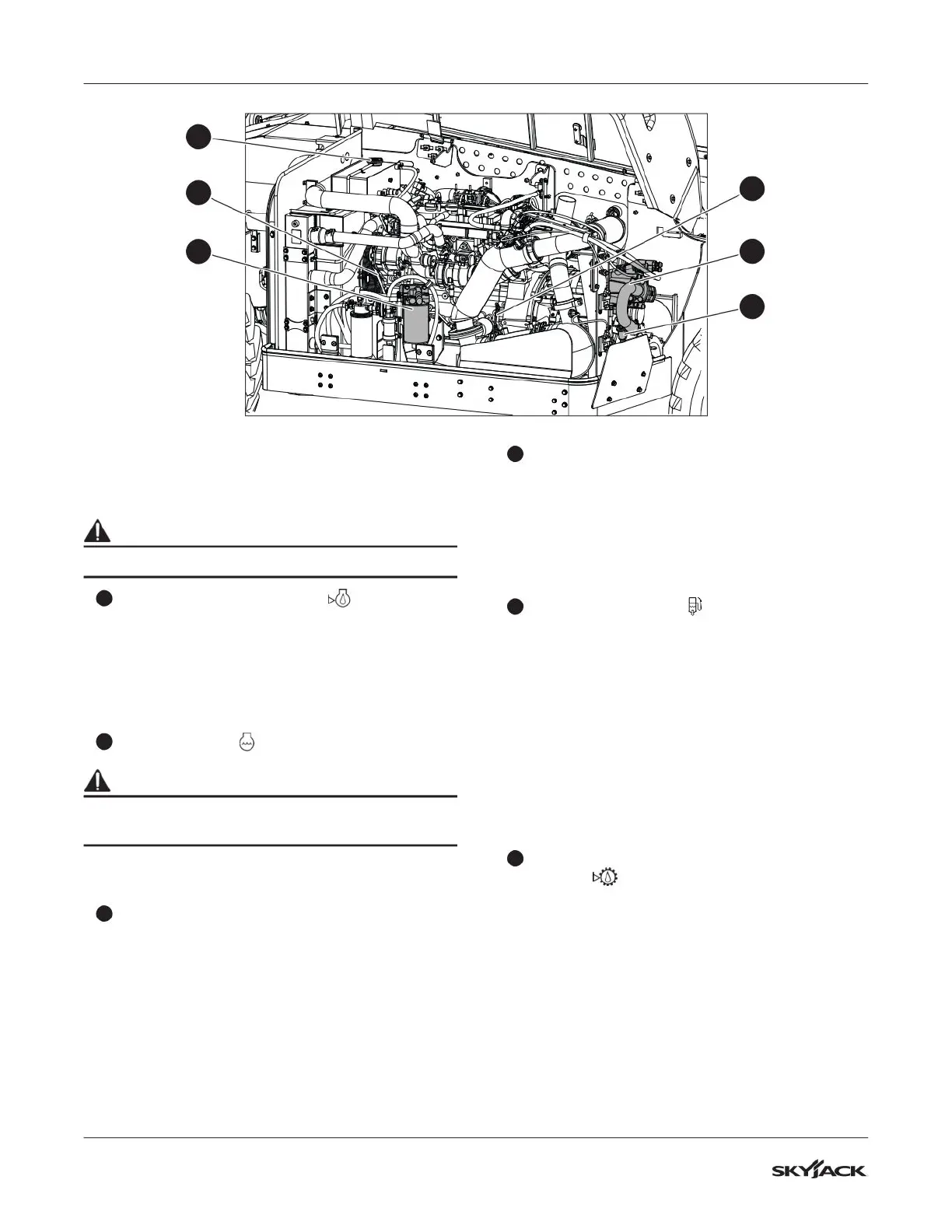

4.2-7 Engine Compartment
▪
Ensure compartment cover is secure and in
proper working order.
WARNING
Beware of hot engine components.
1
Engine Oil Level on Dipstick
Maintaining the engine components is essential
to good performance and service life of the
telehandler.
▪
Oil level should be between the “L” low and
“H” high marks. Add oil as needed. Refer to
Section 7.4 for recommended oil type.
2
Engine Coolant
WARNING
Pressurized uid present in radiator. Never open
radiator cap when engine is hot.
▪
Check coolant level on radiator.
▪
Add coolant as required.
3
Belts
▪
Ensure belts are in good working condition
and have correct tension. Replace if belts are
cracked, frayed, or have chunks of material
missing. Refer to service manual for proper
replacement procedure.
4
Hydraulic Oil Pump
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure all bolts are properly tightened.
▪
Ensure all ttings and hoses are properly
tightened and there is no evidence of hydraulic
oil leakage.
5
Fuel/Water Separator
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure all ttings and hoses are properly
tightened and there is no evidence of fuel
leaks.
▪
Drain water by opening water drain plug at
bottom of lter. Close tightly after inspection.
4.2-8 Transmission
▪
Ensure transmission shifter is working properly
and there is no evidence of damage.
6
Check oil level on Transmission Oil
Dipstick :
1. With park brake engaged and transmission
shifter in “N” neutral position, start engine.
2. Oil level should be in the “safe” zone. Add
oil as needed. Refer to Section 7.4 for
recommended oil type.
2
4
6
1
