Section 3 – Familiarization Optional Attachments
3.6-7 Fork Positioner

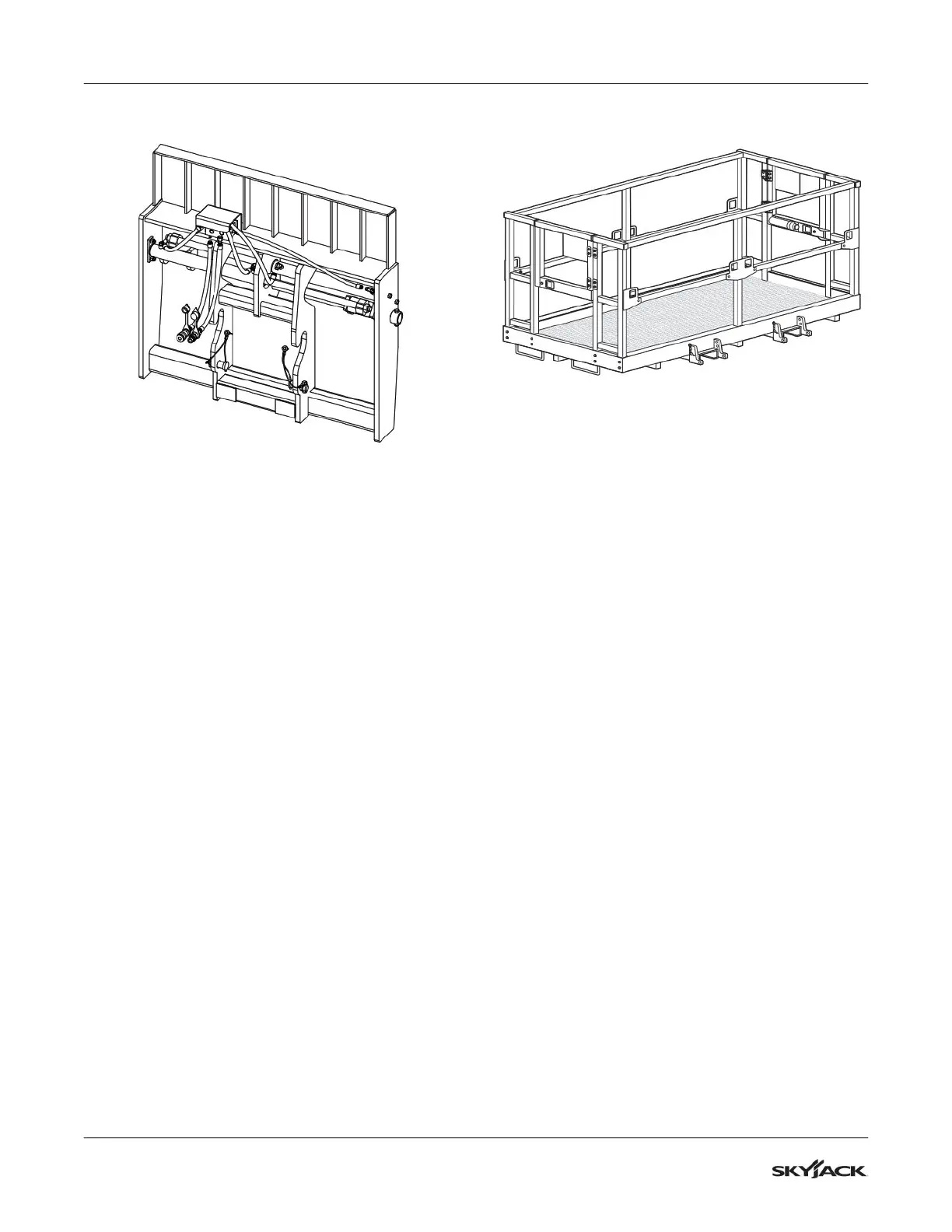

Figure 16 Fork Positioner
The fork positioner attachment allows operators to
accurately and easily adjust the distance between
forks to suit different size pallets.
Installation Procedure
1. Remove fork attachment or other attachment
from boom and connect fork positioner
attachment (refer to Section 5.13-1 and Section
5.13-2).
2. Connect auxiliary hydraulic hoses.
Operation
1. To operate using the Standard Multi-functional
Joystick:
▪
To move forks further apart, hold left auxiliary
function button down.
▪
To bring forks closer together hold right
auxiliary function button down.
2. To operate using the Premium Multi-functional
Joystick (if equipped):
▪
To move forks further apart, hold auxiliary
function switch up.
▪
To bring forks closer together, hold auxiliary
function switch down.
3. Handle load the same as regular fork attachment
(refer to Section 5.8 and Section 5.9).
3.6-8 Personnel Work Platform
Figure 17 Personnel Work Platform
Personnel work platforms enable occupants, their
equipment and materials to be safely lifted to elevated
working positions.
Refer to Section 5.16 and the operating manual of the
personnel work platform for details on safely installing
and operating the work platform.
