216201ADA SJ643 TH & SJ843 TH
38
Section 4 – Pre-operation Visual & Daily Maintenance Inspections
4.2 Visual & Daily
Maintenance Inspections
Before performing the visual and daily maintenance
inspections, ensure that the telehandler is parked on a
rm level surface.
Begin the visual and daily maintenance inspections
by checking each item in sequence for the conditions
listed in this section.
WARNING
To avoid injury, do not operate a telehandler until
all malfunctions are corrected.
WARNING
To avoid possible injury, ensure telehandler power
is off during your visual and daily maintenance
inspections.
NOTE
While performing visual and daily inspections
in different areas, be aware to also inspect all
switches, electrical and hydraulic components.
4.2-1 Labels
Refer to the Section 8 – Labels in this manual and
determine that all labels are in place and are legible.
4.2-2 Electrical
Maintaining the electrical components is essential to
good performance and service life of the telehandler.
Ensure proper operation of all gauges.
Inspect the following areas for chafed, corroded and
loose wires:
▪
boom wiring harnesses
▪
frame wiring harnesses
▪
cab wiring harnesses
Ensure electrical devices are properly secured with no
signs of visible damage. Ensure there are no loose or
missing parts.
4.2-3 Hydraulic
Maintaining the hydraulic components is essential to
good performance and service life of the telehandler
Perform a visual inspection and check for leaks
around the following areas:
▪
hydraulic tank, lter(s), ttings, hoses, pump,
and frame surface
▪
all hydraulic cylinders
▪
all hydraulic manifolds
▪
underside of the frame
▪
ground area under the telehandler

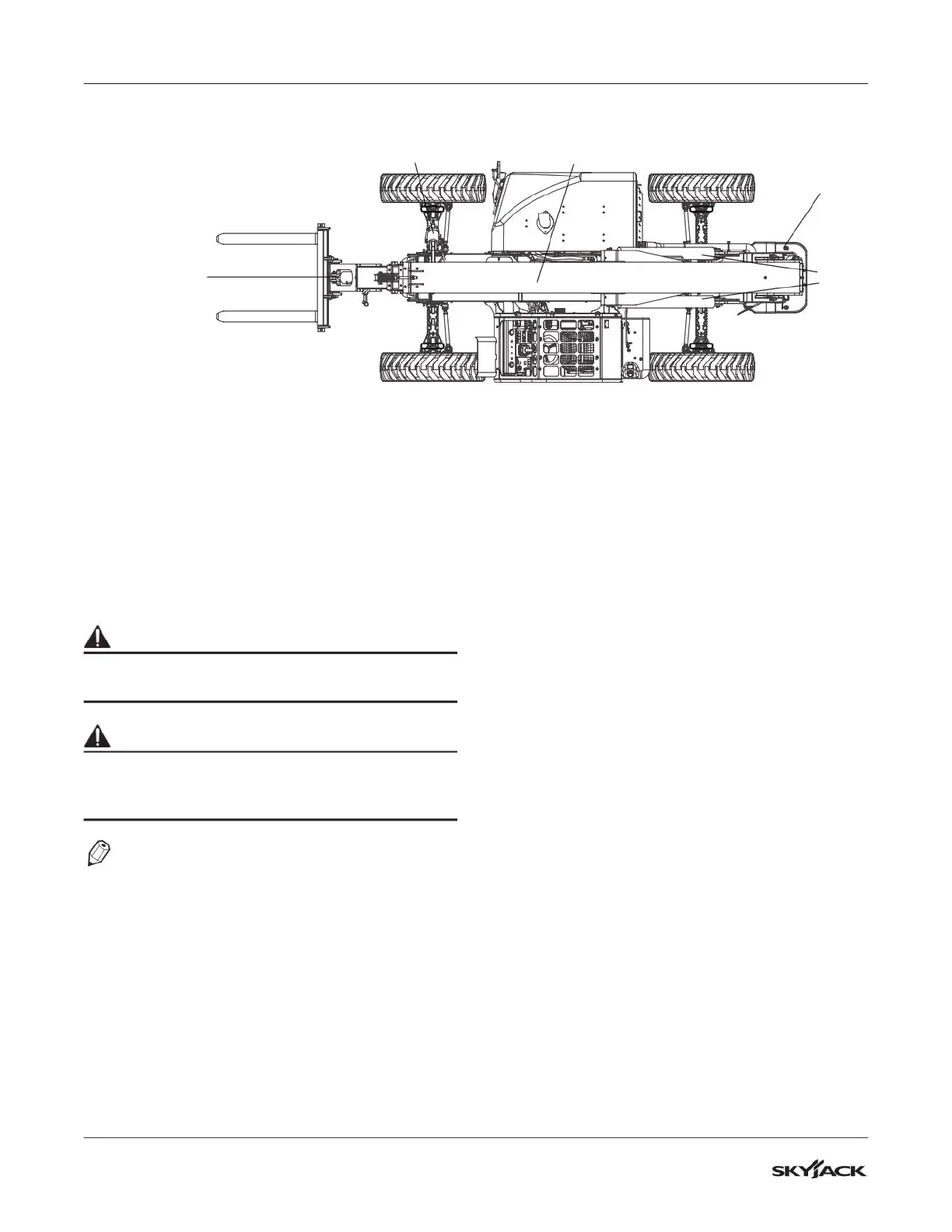

4.2-4 Cylinders
Ensure all cylinders are properly secured and there is
no evidence of leakage or signs of visible damage.
Grease weekly and check pins and bushings to
ensure there is no evidence of damage.
Frame Level
Cylinder
Lift
Cylinders
Extension
Cylinder
Fork Tilt
Cylinder
Tilt
Compensation
Cylinder
