Optional Attachments Section 3 – Familiarization
3.6 Optional Attachments
The Skyjack TH series telehandler is designed
to accept a variety of optional “Quick Attach”
attachments aside from regular fork carriage
attachment.
3.6-1 Side Tilt Carriage

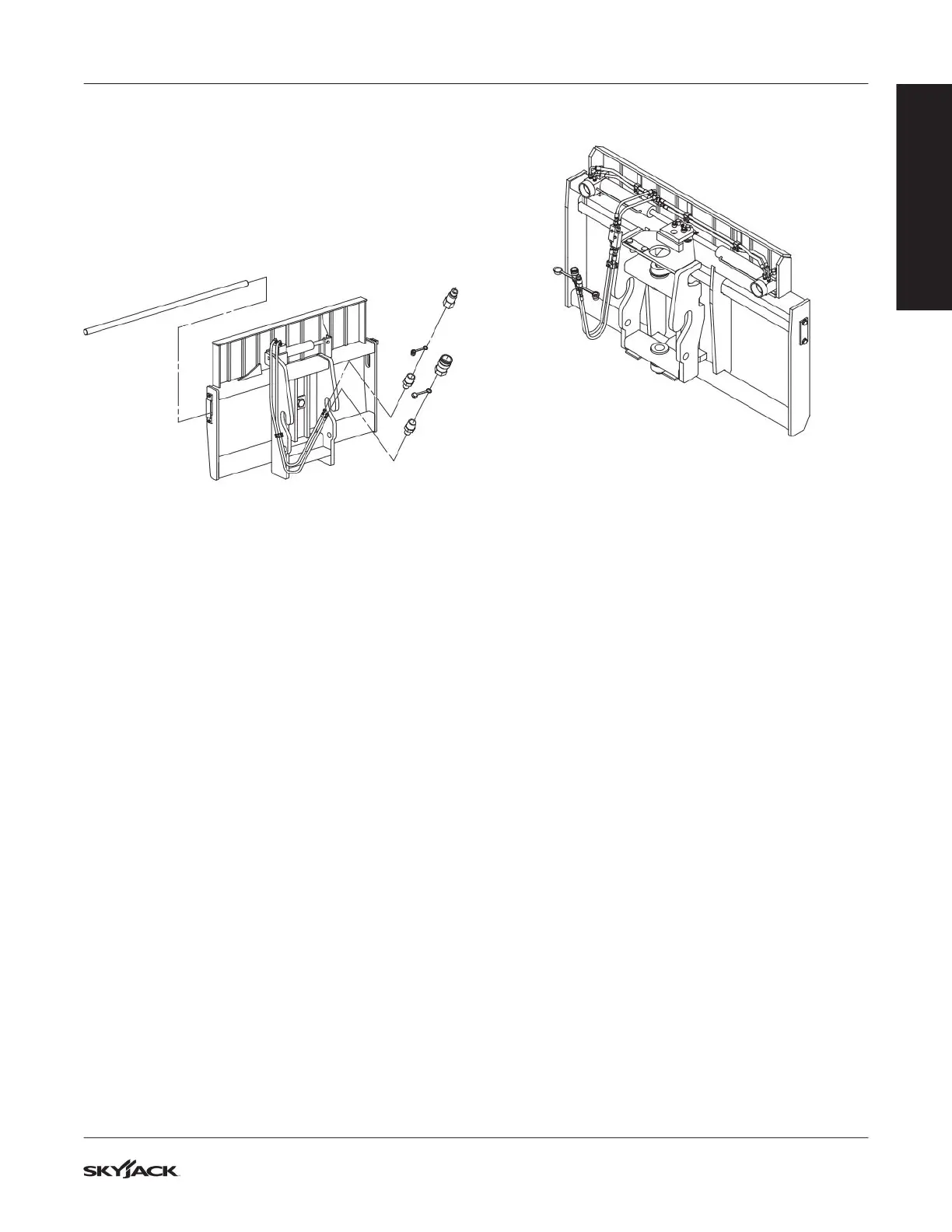

Figure 10 Side Tilt Carriage
The side tilt carriage allows carriage to tilt to either
side.
Installation Procedure
1. Remove fork attachment or other attachment
from boom and connect side tilt carriage
attachment (refer to Section 5.13-1 and Section
5.13-2).
Operation
1. Ensure the side tilt carriage attachment is
positioned perpendicular to the load.
2. To operate using the Standard Multi-functional
Joystick:
▪
To tilt carriage left, hold left auxiliary function
button down.
▪
To tilt carriage right hold right auxiliary function
button down.
3. To operate using the Premium Multi-functional
Joystick (if equipped):
▪
To tilt carriage left, hold auxiliary function
switch up.
▪
To tilt carriage right, hold auxiliary function
switch down.
4. Handle load the same as regular fork carriage
attachment (refer to Section 5.8 and Section
5.9).
3.6-2 Swing Carriage
Figure 11 Swing Carriage
Swing carriage allows forks to swing left or right,
reducing the needed turn angle of telehandler when
placing loads. This is used for maneuvering loads in
tight locations.
Installation Procedure
1. Remove fork attachment or other attachment
from boom and connect swing carriage
attachment (refer to Section 5.13-1 and Section
5.13-2).
2. Connect auxiliary hydraulic hoses to swing
carriage attachment cylinders.
Operation
1. Using optional attachment controller, ensure
the swing carriage attachment is positioned
perpendicular to the load.
2. To operate using the Standard Multi-functional
Joystick:
▪
To swing carriage left, hold left auxiliary
function button down.
▪
To swing carriage right hold right auxiliary
function button down.
3. To operate using the Premium Multi-functional
Joystick (if equipped):
▪
To swing carriage left, hold auxiliary function
switch up.
▪
To swing carriage right, hold auxiliary function
switch down.
4. Handle load the same as regular fork attachment
(refer to Section 5.8 and Section 5.9).
