216201ADA SJ643 TH & SJ843 TH
26
Section 3 – Familiarization Control Functions
P
N
FWD
REV
1 26
2
3
4
5
5 6 7 9 10 11 12 13 14 15
16
17
1819202122232425
8

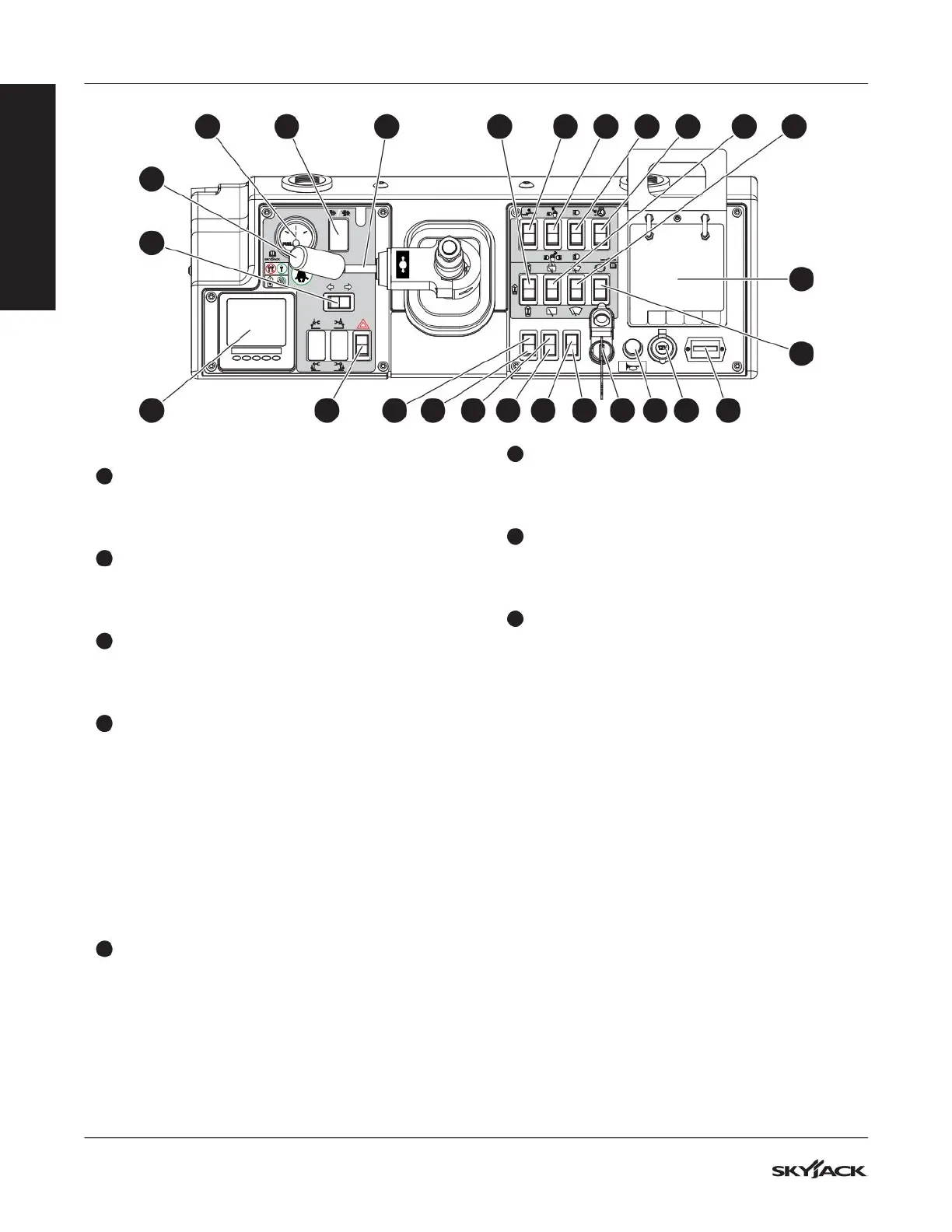

3.3-4 Operator’s Cab Dash Controls
1
Fuel Gauge: Indicates the amount of fuel in the
fuel tank. Fill the tank with ultra low sulfur diesel
fuel only when the indicator needle moves below
the 1/4 tank mark.
2
Transmission Range Selector (If equipped):
Located on the direction control lever. The
transmission has three speeds in either direction.
Rotate handle grip to select speed range.
3
Left and Right Turn Signals Switch (If
Equipped): This rocker switch controls left and
right turn signals located on both the front and
rear of the telehandler.
4
Engine Data Display Module: Allows the
operator to select the required engine data such
as engine RPM, engine temperature, voltage,
and visualize it in the following formats:
▪
Analogue display
▪
Digital data
▪
Graphics
▪
Multi-data (a combination of the above)
▪
Current alarm messages
(Refer to Section 5.11 for details).
5
Hazard Warning Light Switch (If Equipped):
The hazard warning light switch activates all four
turn signals to indicate an emergency situation.
6
Transmission Oil Temperature Indicator:
This red light indicator illuminates when the
transmission oil temperature is not within the
normal operating range.
7
Rear Axle Lock Indicator: This red light
indicates frame leveling is in slow/controlled
mode, or locked mode when park and/or service
brakes are applied.
8
Glow Plug Indicator: This light illuminates until
glow plugs have completed their timed cycle.
When the lamp goes out, the engine is ready to
be started.
FAMILIARIZATION
