Section 3 – Familiarization Control Functions
FAMILIARIZATION

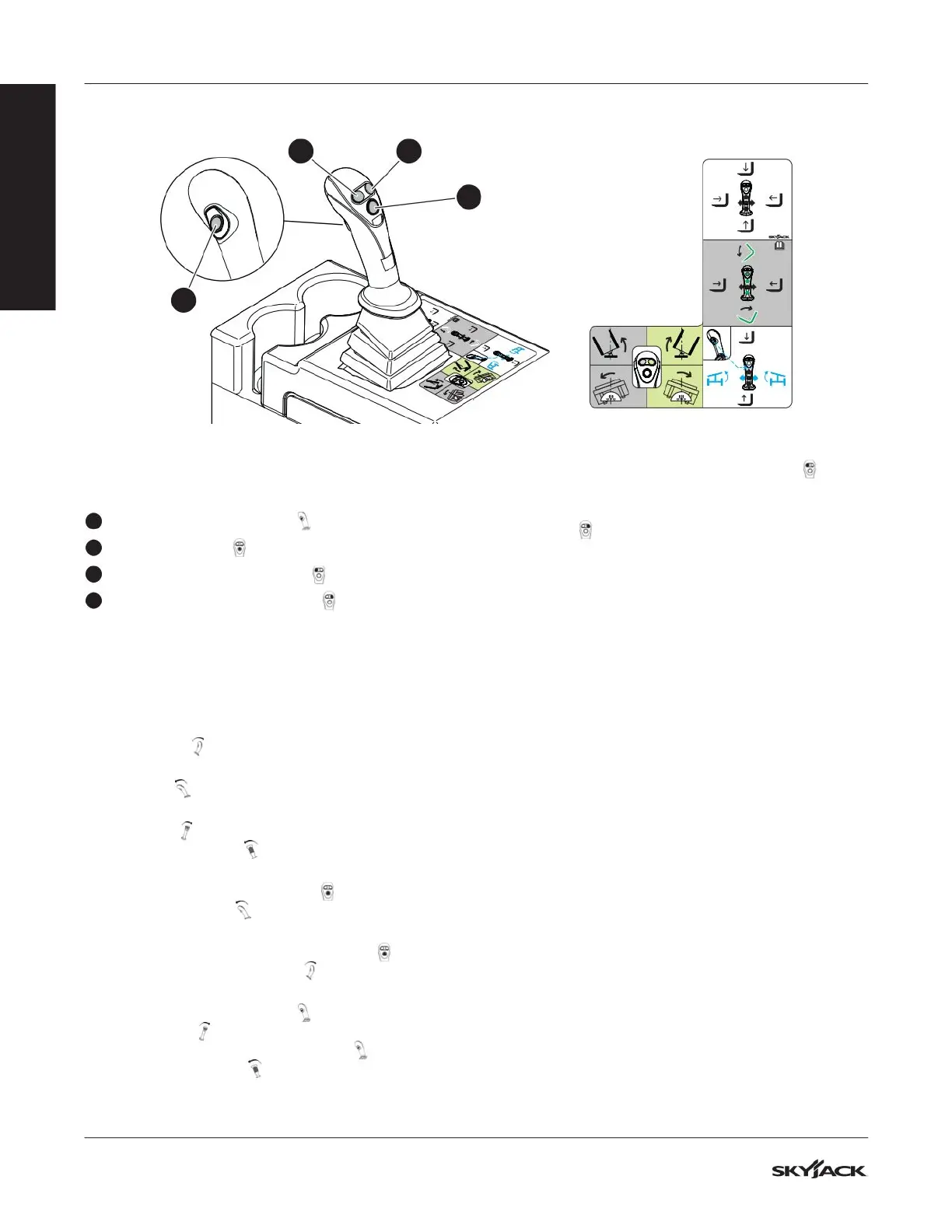

3.3-2 Standard Multi-functional Joystick
This dual-axis lever is a multi-functional control that
includes the following additional controls:
1
Frame Level Enable Switch
2
Tilt Enable Button
3
Left Auxiliary Function Button
4
Right Auxiliary Function Button
These controls allow boom operation (extend or
retract and up or down), frame leveling, fork tilt, and
auxiliary functions such as carriage side tilt or carriage
swing. The lever returns to neutral position when
released.
▪
Raise the boom by moving joystick
backward .
▪
Lower the boom by moving the joystick
forward .
▪
Extend the boom by moving the joystick to
the right . Retract the boom by moving the
joystick to the left .
▪
Tilt attachment forward by pressing and hold
attachment tilt enable button and moving
joystick forward .
▪
Tilt attachment backwards by pressing and
holding attachment tilt enable button and
moving joystick backward .
▪
Frame level right by pressing and holding
frame level enable switch and moving joystick
to the right . Frame level left by pressing and
holding frame level enable switch and moving
joystick to the left .
▪
Left auxiliary function (if equipped) is operated
by pressing and holding the left button .
▪
Right auxiliary function (if equipped) is
operated by pressing and holding the right
button .
3
1
4
2
Standard Multi-functional Joystick
