SECTION 6, Page 46 SJKB-40-D, SJKB-40-D/F
JUN. 1999

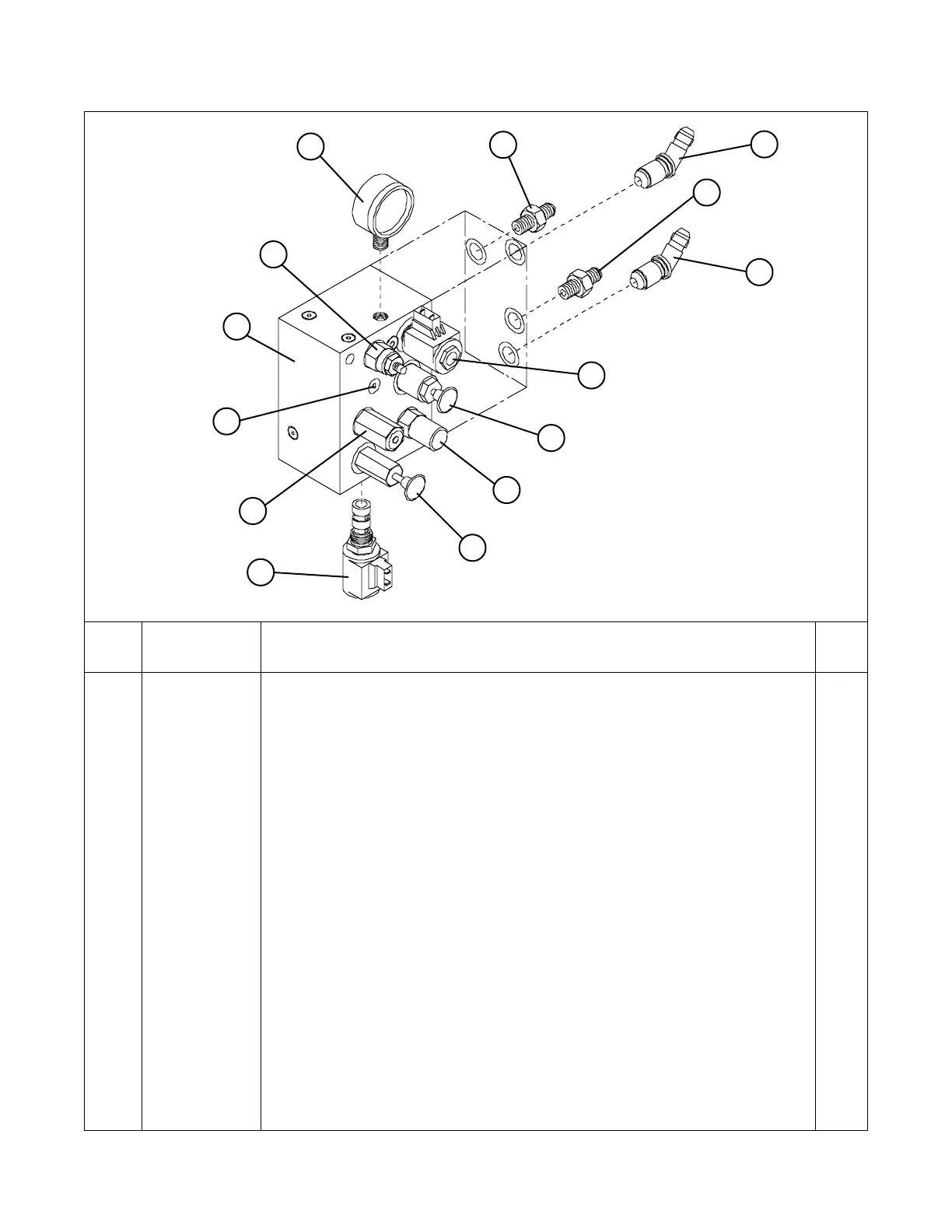

FIGURE 6-23. BRAKE MANIFOLD ASSEMBLY
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.
Ma40-619
(Ref.) ASSEMBLY, Brake manifold -
1 703725 • GAUGE, Pressure 800 psi 1
2 707234 • FITTING, Elbow 45° #6orb - #4 1
3 107742 • FITTING, Elbow 45° #6orb - #6 1
704716 • MANIFOLD, Brake 1
4 703188 • • BLOCK, Manifold 1
5 703189 • • VALVE, Brake 1
703803 • • • COIL, 12 Volt 1
6 703190 • • VALVE, Tilt braking 1
703803 • • • COIL, 12 Volt 1
7 703191 • • VALVE, Pressure reducing 1
8 703192 • • VALVE, Brake release override 1
9 703193 • • VALVE, Brake release hand pump 1
10 703194 • • VALVE, Adjustable relief 1
11 706026 • • VALVE, Needle 1
12 703197 • • VALVE, Shuttle 2
700764 • • PLUG, SAE #2 21
700765 • • PLUG, SAE #4 3
104437 • • PLUG, SAE #6 5
13 103069 • FITTING, Connector #6orb - #6 2
107742 • FITTING, Elbow 45° #6orb - #6 (Ford 1.3 Only) 2
12
11
10
9
8
7
6
5
4
3
2
1
13
13
