Skyjack SJKB-40-D - Page 160

SECTION 6, Page 47SJKB-40-D, SJKB-40-D/F JUN. 1999

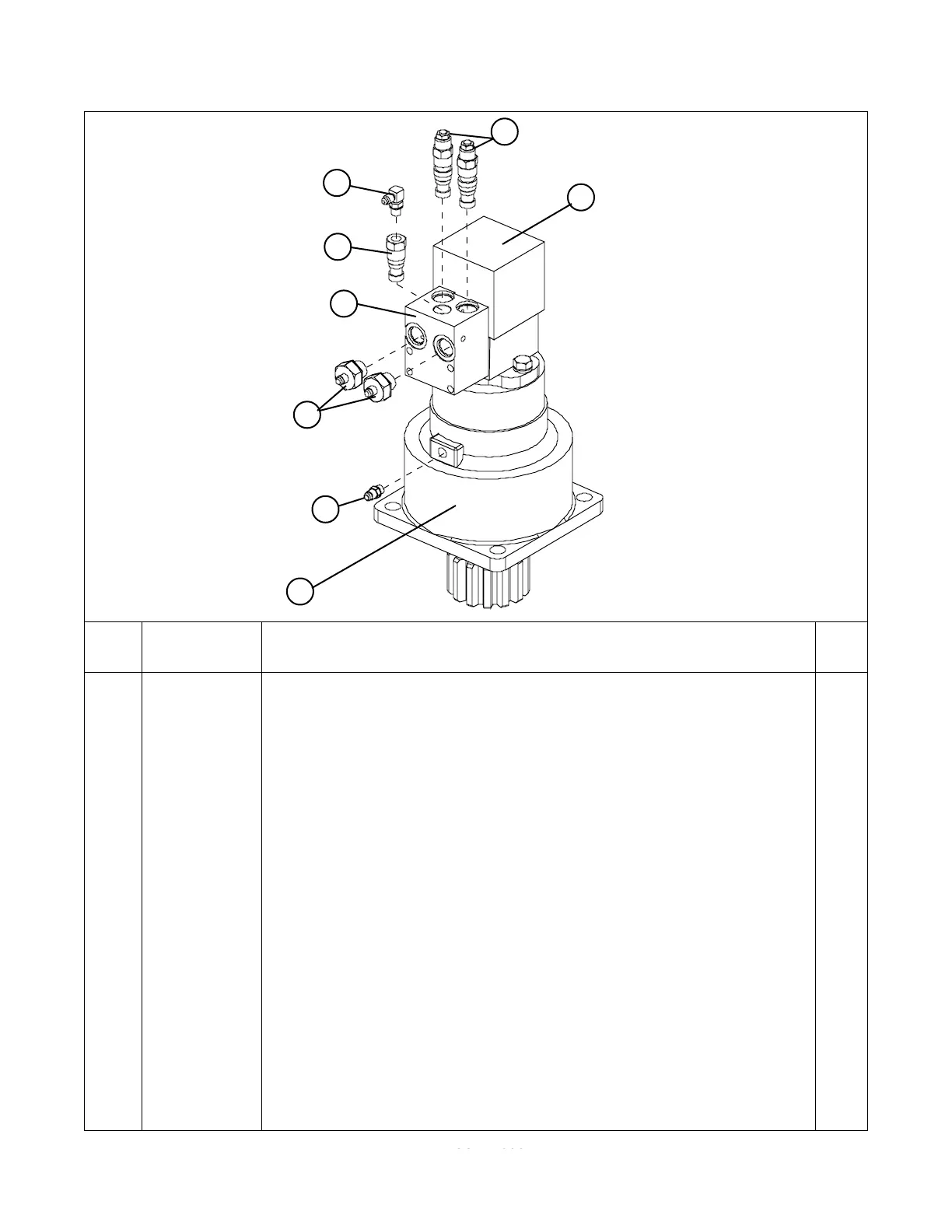

FIGURE 6-24. SPEED REDUCER ASSEMBLY
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.
704287
704287 ASSEMBLY, Speed reducer -
1 703019 • MANIFOLD, Rotation drive motor 1
707809 • BOLT, SHCS 5/16-18 x 3” lg. grade 5 4
103404 • WASHER, Lock 5/16” 4
2 706384 • VALVE, Counterbalance 2
3 707996 • FITTING, Connector #10orb - #4 2
4 701850 • FITTING, Elbow 90° #4orb - #4 1
5 701954 • FITTING, Connector #4orb - #4 1
6 703030 • VALVE, Shuttle cartridge 1
- 710868 • ASSEMBLY,Speed reducer/Hydraulic motor 1
7 702989 • • SPEED REDUCER 1
704222 • • • GASKET 1
704230 KIT, Seal 1
8 703973 • • MOTOR, Hydraulic 1
103909 • • BOLT, HHCS 1/2-13 x 1-1/4” lg. 2
103470 • • WASHER, Lock 1/2” 2
704237 KIT,Seal 1
9 704504 • ASSEMBLY, Hose (H1204 0009 00-0) (Not shown) 1
NOTE: Refer to Standard Hose Numbering System
(SECTION 5, Page 30) for explanation of hose
numbering.
