SECTION 6, Page 84
SJKB-40-D,SJKB-40-D/F
JUN. 1999
Index
No.
Skyjack
Part No.
Description
1 2 3 4 5 6 7
Units
per
Assy.

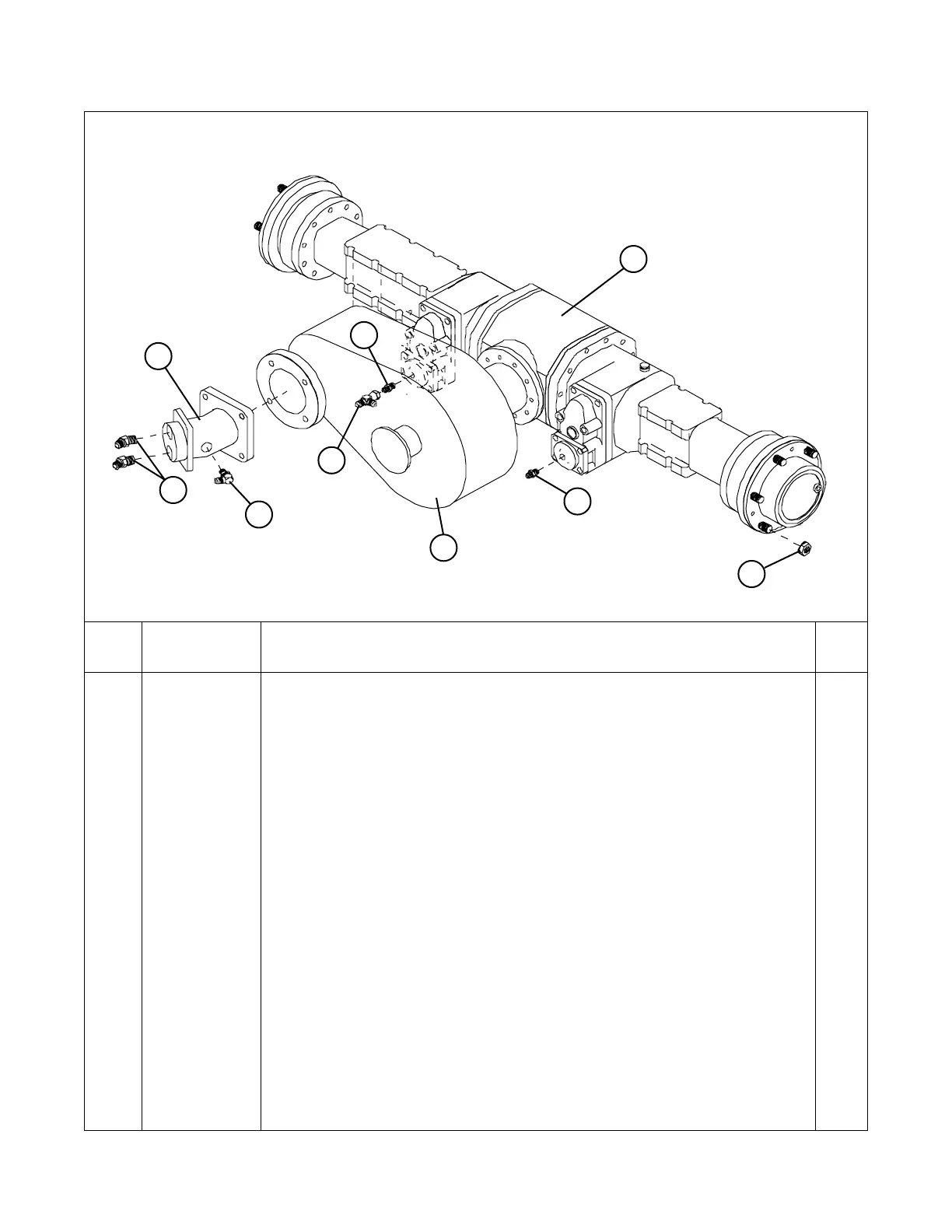

FIGURE 6-43. DRIVE AXLE ASSEMBLY (Optional 4x4)
Ma40-627
706266 DRIVE AXLE ASSEMBLY (Optional 4x4) -
1 704958 • DRIVE MOTOR 1
702191 • • BOLT, HHCS M14x2.0x45MM gr. 8.8 4
702192 • • WASHER, Lock 9/16 4
2 700498 • WHEEL NUT 18x1.5MM 16
3 706296 • DRIVE AXLE (For components, refer to Figure 6-45.) 1
4 (Ref.) • • TRANSFER CASE (For components, refer to Figure 6-44.) 1
5 702438 • FITTING, 90° #8orb-#12 1
6 707622 • FITTING, 45° #16orb-#12 2
7 700817 • FITTING, Connector #14orb-#6 2
8 702382 • FITTING, Swivel nut tee #6-#6 1
4
8
7
6
5
3
2
1
6
