Page 10
One speed control adjusts one direction of a
particular function and the opposite speed control
adjusts the other direction. They are adjustable by
using a small straight blade screwdriver and
turning the adjustment screw clockwise to de-
crease the speed and counterclockwise to
increase the speed. Refer to figure 1-21.

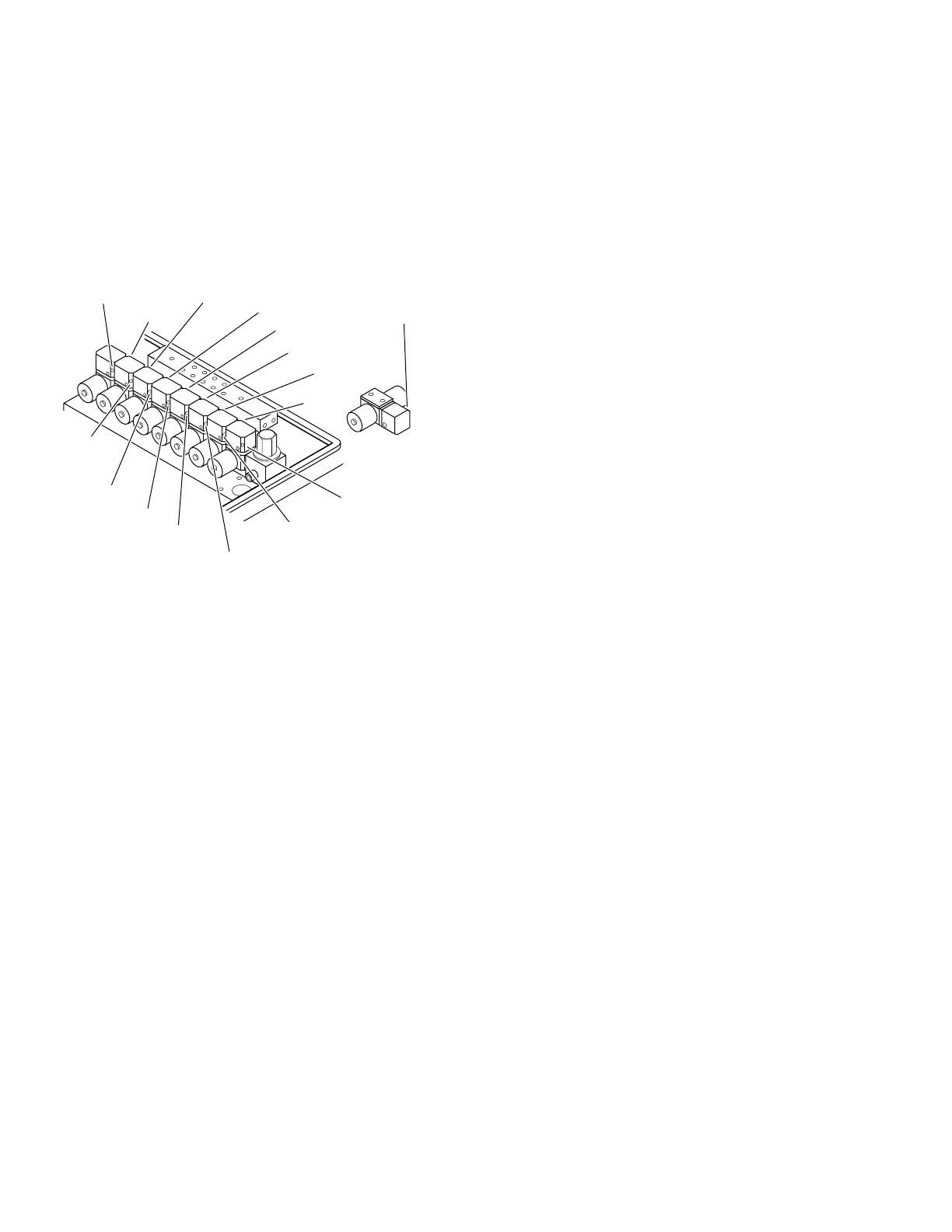

Figure 1-21.
Any control function should move in either direc-
tion at the same rate. If the rate of a certain function
is too slow, open the speed control slightly and
recheck. Use the second hand on a watch and time
a particular function. Match that time in the opposite
direction by opening or closing the speed control.
Approximate operating times are as follows:
Elevation Down 30 seconds
Lateral Tilt 7 seconds
Leg-Up 25 seconds
Leg-Down 15 seconds
Kidney Lift 7 seconds
Slide 20 seconds
A pressure gauge should be used to set the speed
of the back section, trendelenburg and flex control
functions.
To adjust:
1. Attach the pressure gauge onto the main oil
galley as shown in figure 1-20.
2. The gauge should read the following values
when operating the various control functions in
either direction. Turn the speed controls until
desired values are obtained.
Back Section Up 65KG/CM† 925PSI
Dn 65KG/CM† 925PSI
Trendelenburg Up 65KG/CM† 925PSI
Dn 65KG/CM† 925PSI
Flex 70KG/CM† 995PSI
Reflex 70KG/CM† 995PSI
NOTE
When adjusting Flex/Reflex speed con-
trols, set Reflex last.
Elevation - There is not a speed adjustment for
raising the table. The speed control will only affect
the rate of descent and it should equal the rate of
elevation.
TABLE DOWN
TREND
TILT RIGHT
REFLEX
BACK UP
BRAKE
LEG DOWN
KIDNEY UP
SLIDE
HEAD
SLIDE
FOOT
KIDNEY
DOWN
LEG UP
BACK DOWN
FLEX
TILT LEFT
REV.
TREND
