Page 23
3-12. Flexible Hose Identification and Place-
ment
The flexible hydraulic hoses used in the table are
number coded to aid in the correct placement of the
hoses from the plumbing terminal to their respec-

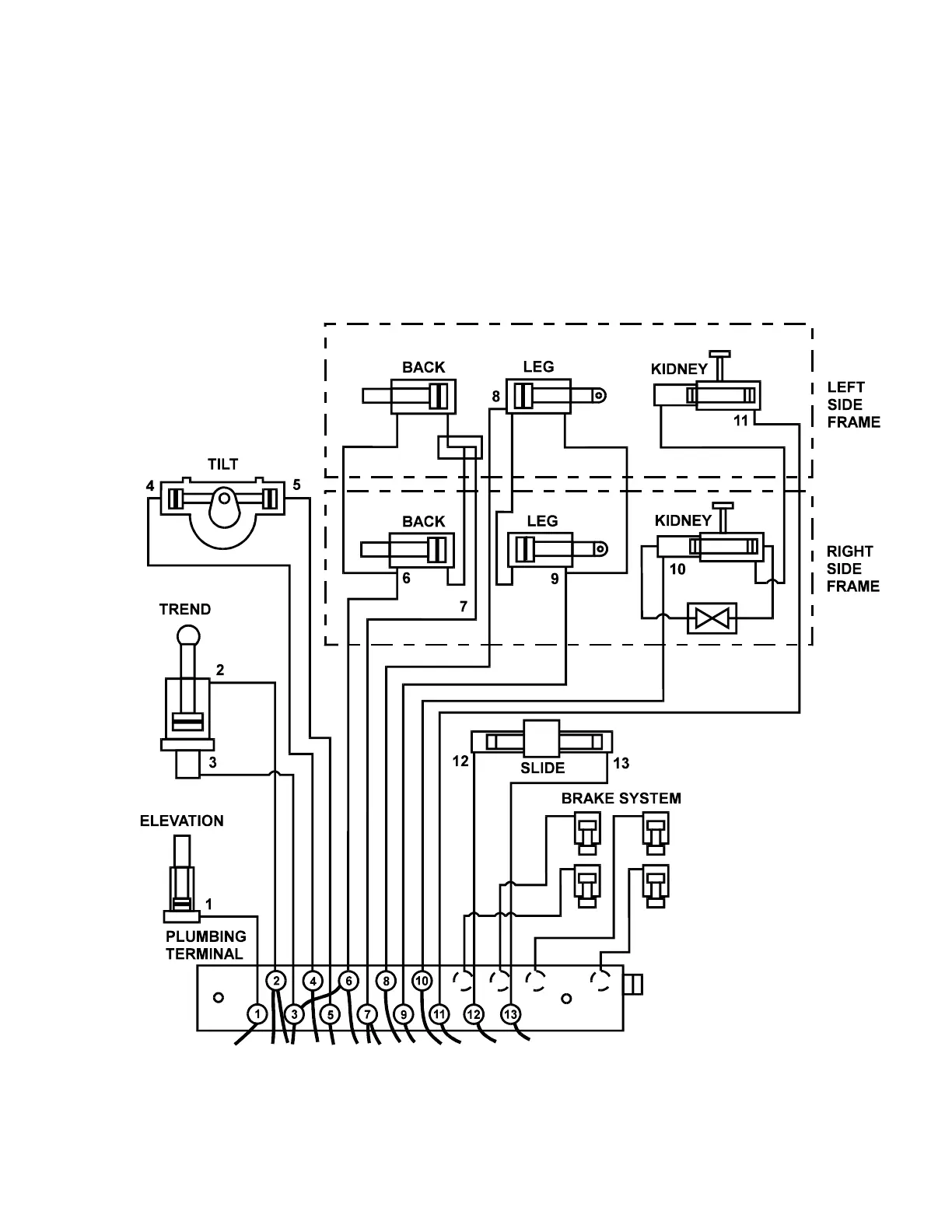

tive hydraulic cylinders. Figure 3-10 shows the
correct placement of the flexible hydraulic hoses
and their respective number codes.
