Page 35
OHM
PIN NO
1 - 2
1 - 3
2 - 3
Approx. 5 ohms
Approx. 4 ohms
Approx. 8 ohms
METER
The kidney lift has a back section-up inhibit switch
to prevent the table back section from damaging
the kidney lift when the lift is raised. The back
section still has the capability to be lowered and
raised, but will not raise more than 45° above
horizontal until the kidney lift is completely down. If
the back section is raised more than 45° above
horizontal, the system will not allow the kidney lift to
be raised.
The slide function has inhibit switches to prevent
damage to the back and leg sections. If the back
section is below horizontal the top will not slide
toward the foot end. If the leg section is lowered
more than 45° below horizontal the top will not slide
toward the head end. Likewise, if the top is slid
toward the foot end, the back section will not go
below horizontal. If the top is slid toward the head
end, the leg section will not go more than 45° below
horizontal.
The return-to-level/inhibit system consists of 12
micro-switches, an electrical connector, 2 terminal
strips and the related wiring. The micro-switches
are mounted on or adjacent to the function they
control and are wired for normally open or normally
closed operation. The micro-switches are cam or
lever actuated and can be adjusted at the individual
switch mounting brackets. See figure 5-12.
3. Use the R x 1 scale of the ohmmeter and
measure the resistance between the pins located
in the pump connector CN15. See figure 5-11.

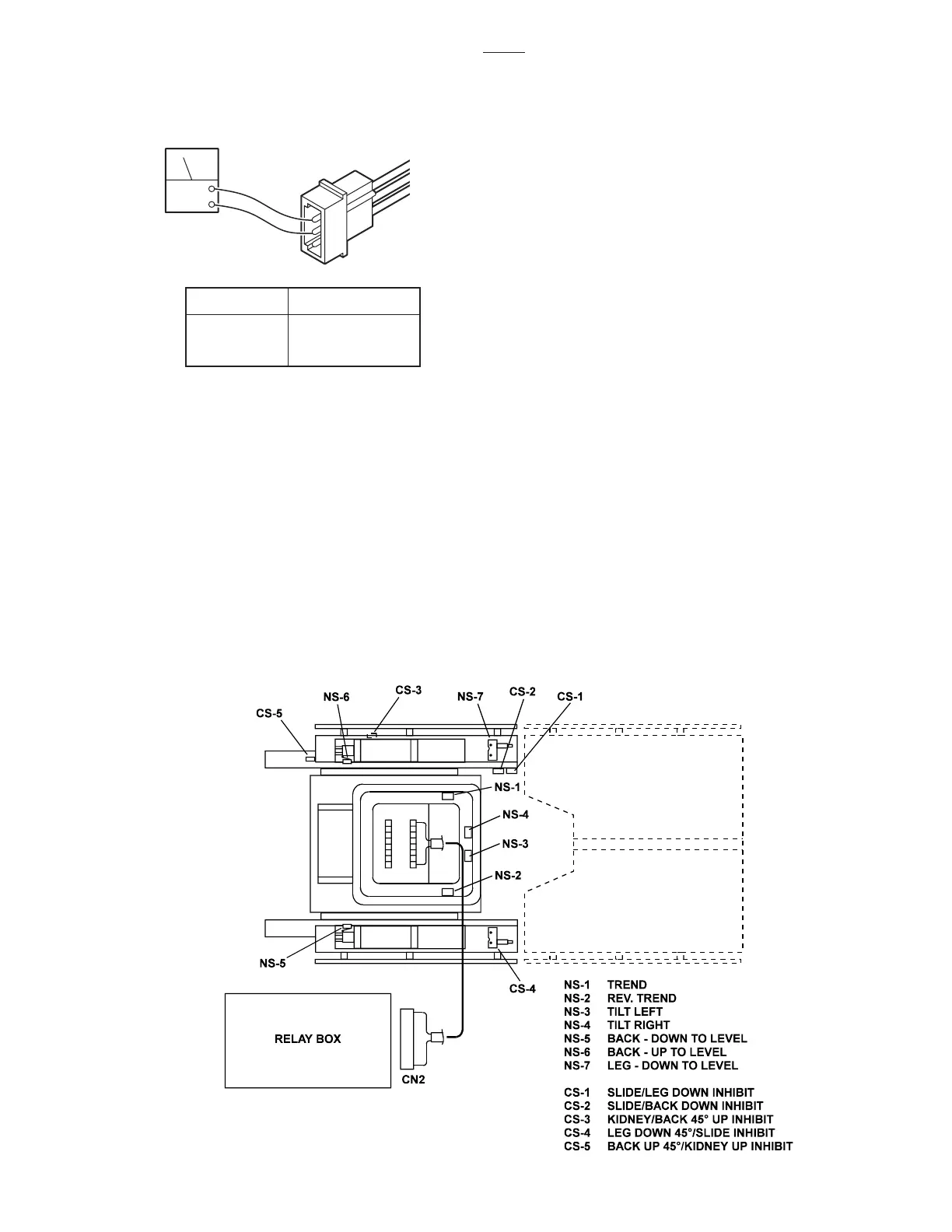

Figure 5-11. Pump Connector CN15
g. Test Results:
If you do not receive the correct meter readings, the
motor or wiring is defective.
5-7. Return-to-Level Micro-Switches.
The return-to-level feature is activated by a single
button on the pendant control and automatically
levels the major table functions, lateral tilt, tren-
delenburg, flex, back section, and leg section.
Figure 5-12.
3500
