Skytron ELITE Series Maintenance Manual

Page 37
NS-3. Lateral Tilt-Left
Test at pins 3 & 14
Table Switch Meter
Position Position Reading
Level Open Infinity
Tilt Right Open Infinity
Tilt Left Closed 0
When table is inTilt-Left Position, NS-3
brings the top back to level.

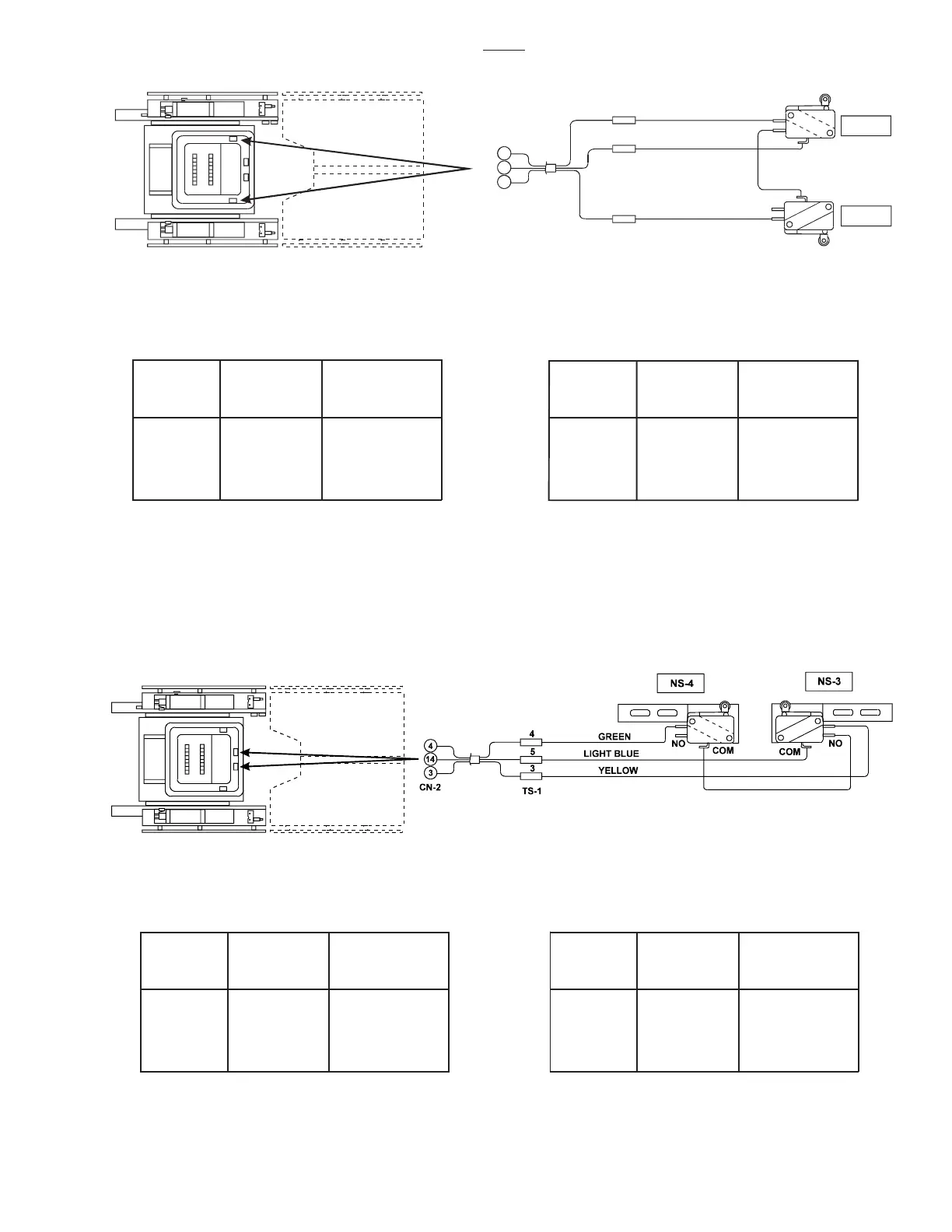

Figure 5-15. Lateral Tilt Return Switches
Figure 5-14. Trendelenburg Return Switches
NS-4. Lateral Tilt-Right
Test at pins 4 & 14
Table Switch Meter
Position Position Reading
Level Open Infinity
Tilt Right Closed 0
Tilt Left Open Infinity
When table is in Tilt-Right Position, NS-4
brings the top back to level.
NS-1. Trendelenburg
Test at pins 1 & 14
Table Switch Meter
Position Position Reading
Level Open Infinity
Head Up Open Infinity
Head Dn Closed 0
When table is in Trendelenburg Position,
NS-1 brings the top back to level.
NS-2. Reverse Trendelenburg
Test at pins 2 & 14
Table Switch Meter
Position Position Reading
Level Open Infinity
Head Up Closed 0
Head Dn Open Infinity
When table is in Reverse Trendelenburg
Position, NS-2 brings the top back to
level.
CN-2
2
14
1
1
5
2
TS-1
WHITE
NC
NO
COM
NS-1
NS-2
COM
NC
NO
LIGHT BLUE
BLUE
3500
