SMA Solar Technology AG Electrical Connection
Technical Description SI5048-TEN093630 29
6 Electrical Connection

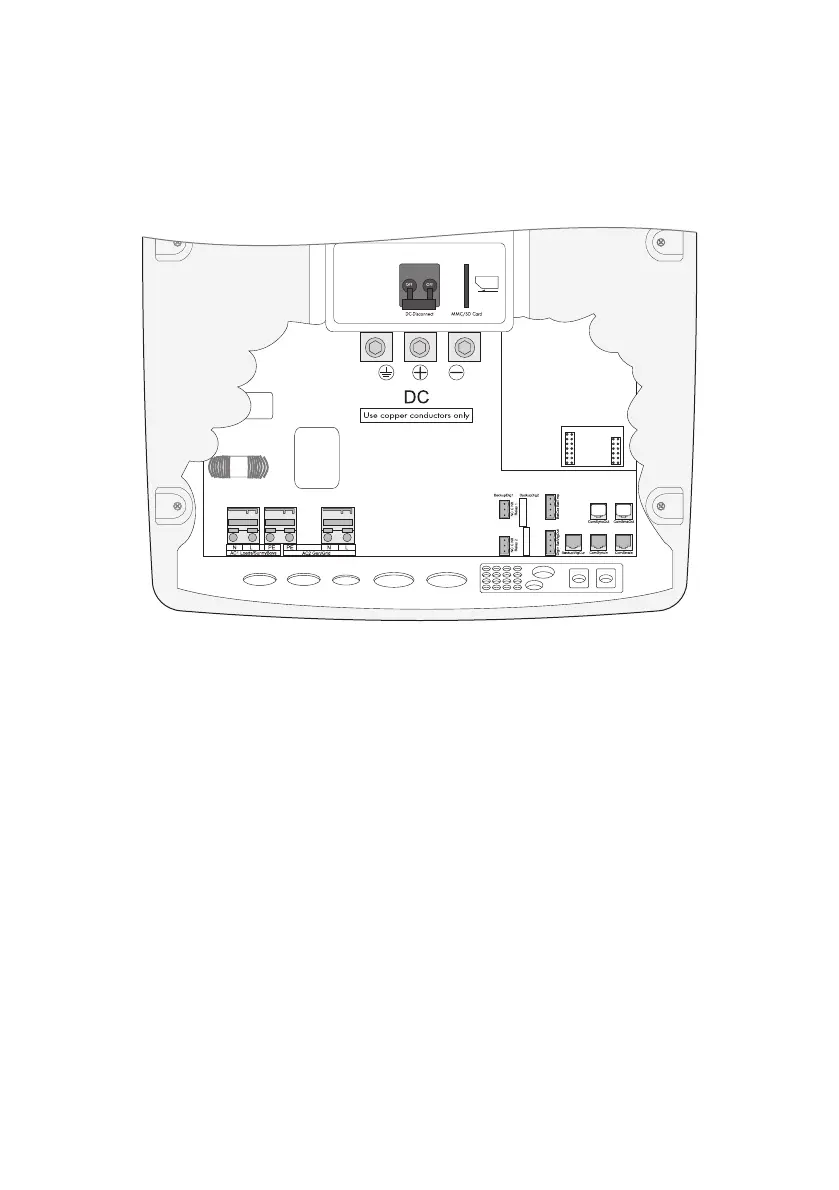

All cables are fed through the openings on the bottom side of the device (see next illustration) and
connected to the appropriate connection terminals on the Sunny Island.
Use the provided cable screw connections to fasten the cables inside the Sunny Island enclosure in a
manner conforming to the appropriate standards. The metric-thread cable screw connections
guarantee a dust-free and waterproof installation of the cables in the enclosure and also provide
strain relief for the cable connection. Close all unused openings in the enclosure using the appropriate
filler plugs.
Obtain an overview of the different components and connection areas of the Sunny Island
2.2”At a glance” (page17)).
