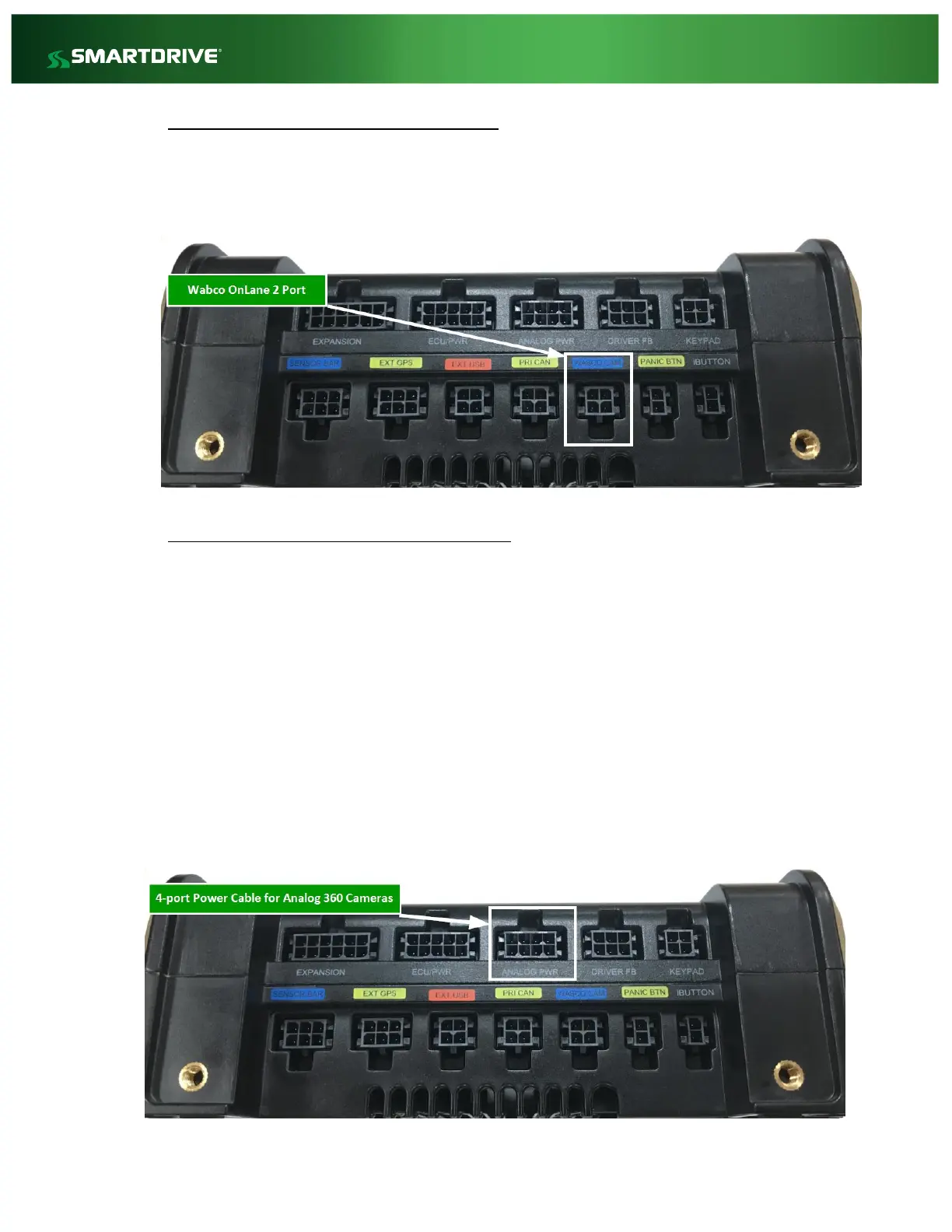

Wabco OnLane 2 Camera Support (where installed)
SR4 supports the use of a Wabco OnLane 2 Camera as the Forward-facing camera. Use of a Wabco OnLane 2
Camera is optional. If a camera is connected to the Wabco Cam port, that camera will be used as the Forward-
facing camera. If no camera is connected to the Wabco Cam port the camera connected to the DCAM-1 port
will be the Forward-facing Camera. Most installations will not include the use of a Wabco OnLane 2 Camera.
Analog Cameras (360) – ANALOG1 through ANALOG4
It is important to understand that every 360 installation is unique. There are many different configurations
depending on the 3
rd
party Analog Cameras that are utilized. The best resource for your specific installation is
your VSA (Vehicle Specification Assesment) for the vehicle make/model. If you do not have a copy of your
VSA, please contact your SmartDrive Project Manager and they will provide it for you.
SR4 currently supports up to 2x Third Party Analog Cameras. In the Future support will be added for up to 4x
Analog Cameras. When utilizing Analog Cameras they should be plugged into the ACAM ports in order. Ex –
First Analog Camera = Analog1, Second Analog Camera = Analog2, and so on.
Powering Analog Cameras –
The recommended method for powering Analog Cameras is to utilize the 4-port Power Cable
(Part # 104-0002-0042-00). The 4-port Power Cable connects to the ‘ANALOG PWR’ port on
the back of the controller. Power will be passed through the SR4 Controller to connected
To Next Page
