Smartgen HGMS61 User Manual

HGMS61 Genset Controller User Manual Page 20 of 47

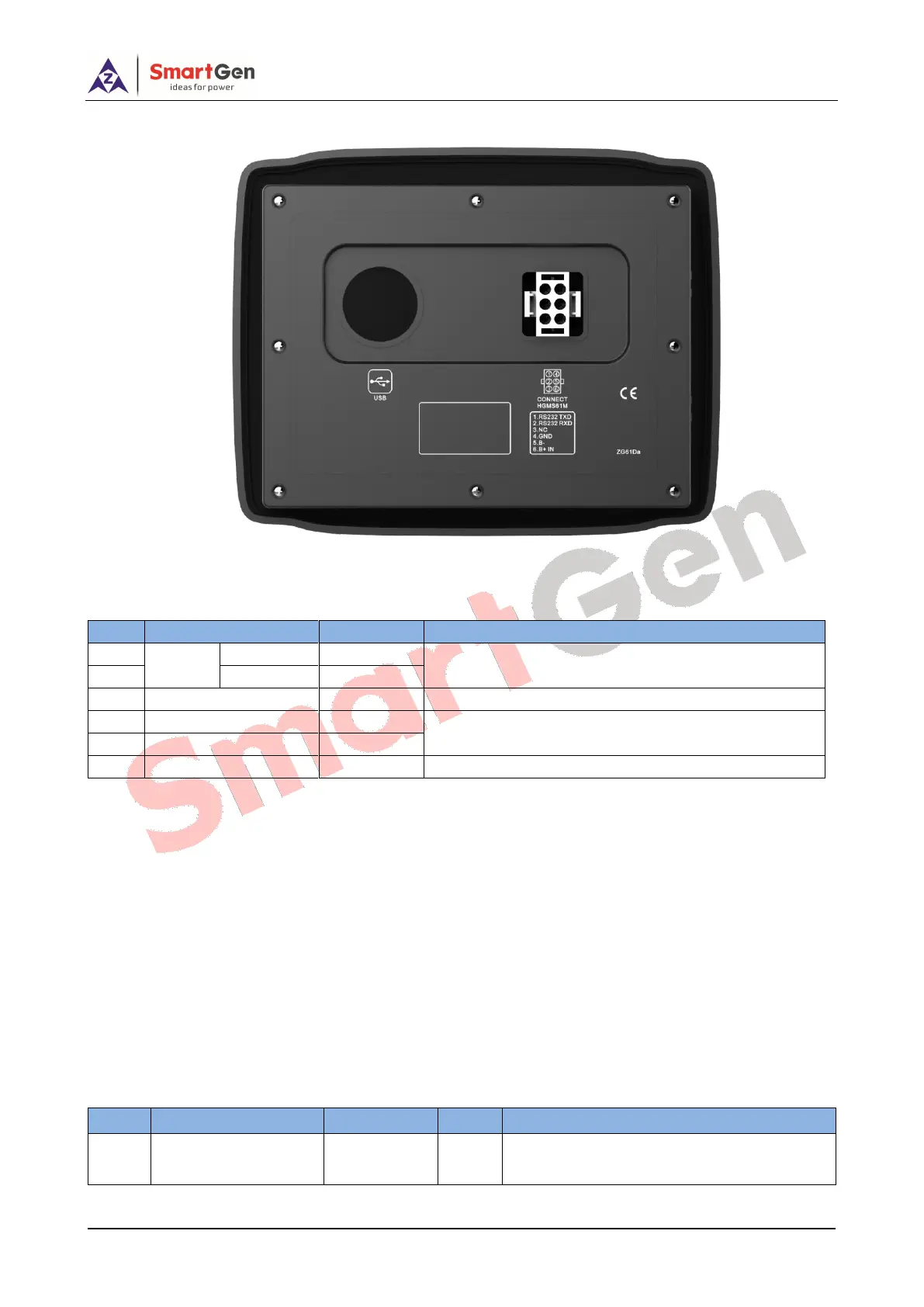

6.2 HGMS61D CONTROLLER REAR PANEL
Fig.3- HGMS61D Controller Rear Panel Drawing
Table 10– HGMS61D Terminal Connection Description
No.
Function
Cable Size
Description
1
RX232
TXD
0.5mm
2
Connect to master controller HGMS61M.
Connect to shielded cable to Terminal 4 GND.
2
RXD
0.5mm
2
3
NC
4
GND
1.5mm
2
Negative post of controller power.
5
B-
1.5mm
2
6
B+
1.5mm
2
Positive post of controller power.
7 PARAMETER RANGE AND DEFINITION
7.1 PARAMETER CONTENT AND RANGE TABLE
Table 11 – Parameter Content and Range
No.
Items
Range
Default
Description
1
Start Delay
(0~3600)s
1
Time from mains abnormal or remote start
signal is active to start genset.
