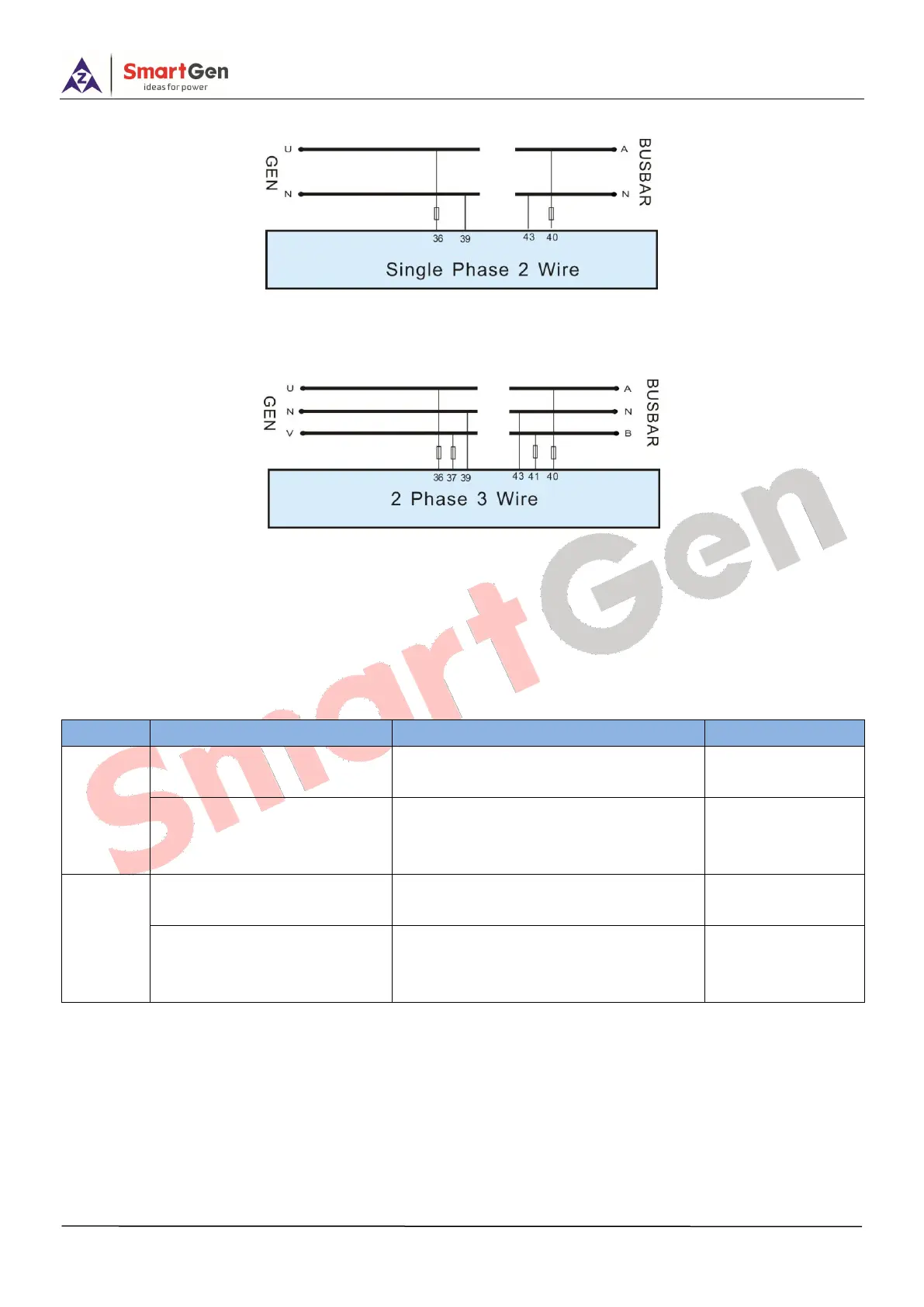

9.3.3 AC WIRE CONNECTION (SINGLE PHASE 2 WIRE)
Fig.6 – Single Phase 2 Wire Connection
9.3.4 AC WIRE CONNECTION (2 PHASE 3 WIRE)
Fig.7 – 2 Phase 3 Wire Connection
9.3.5 ANALOG INPUT
HMC6 FREQ IN and VOLT IN ports support -10V~10V analog voltage input function. External power supply
must be fitted when input signal.
Table 18 - FREQ IN and VOLT IN Function Description
Function
Description
External Setpoint Trigger Bar
Input Voltage
FREQ IN+
External frequency adjust
Single unit running or generator breaker
is opened.
+/-10V DC
External active power adjust
HMC6 is paralleled with shore
power/shaft generator/busbar and need
consistent power output.
+/-10V DC
VOLT IN+
External voltage adjust
Single unit running or generator breaker
is opened.
+/-10V DC
External reactive power adjust
HMC6 is paralleled with shore
power/shaft generator/busbar and need
consistent power output.
+/-10V DC
