HMC6 Power Management Controller User Manual Page 39 of 87
Analog Quantity feedback is shown in the figure below:

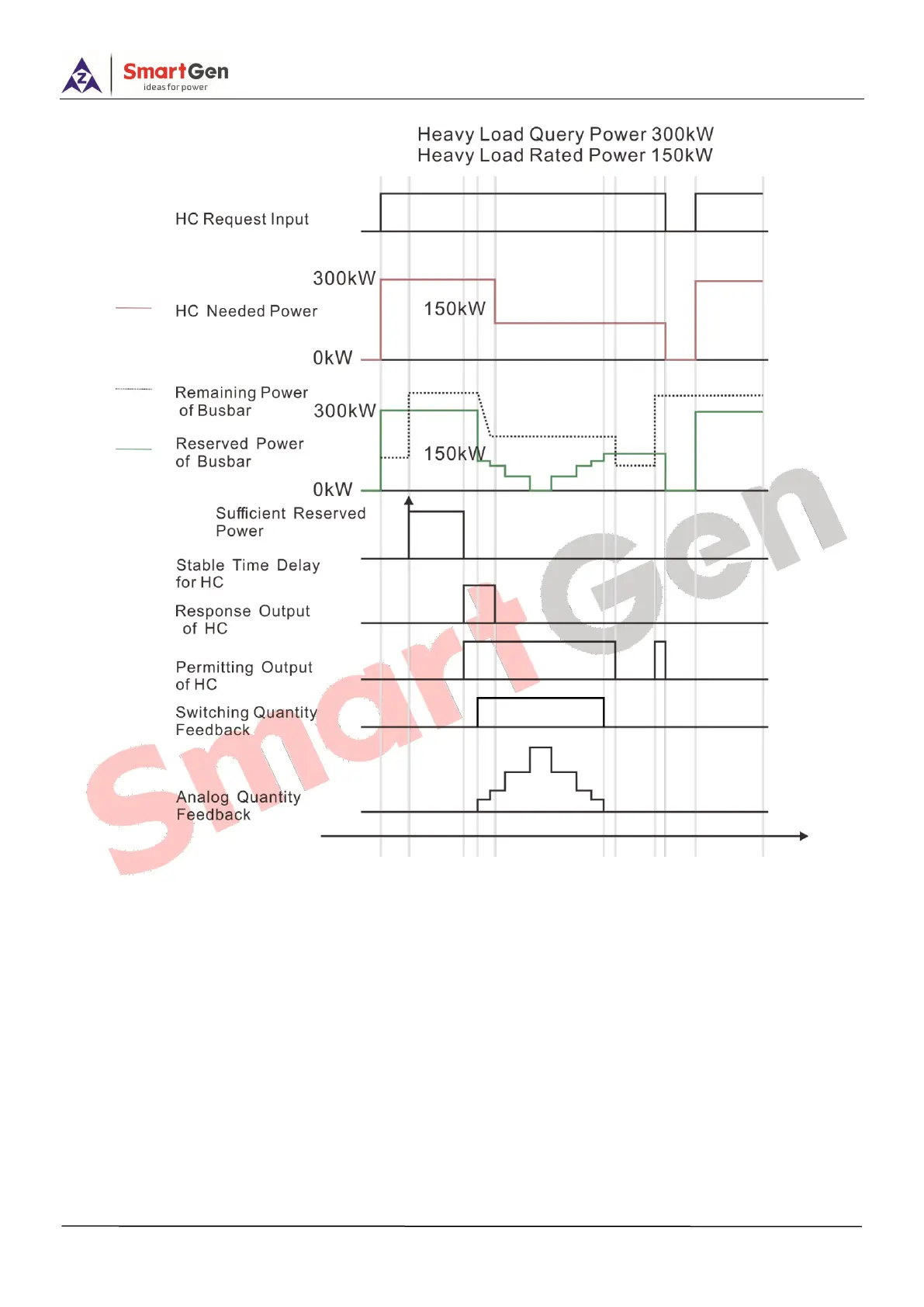

Fig. 14 – Analog Heavy Consumer Sequence Diagram
10.5 TRIP OF NON ESSENTIAL LOAD (NEL)
The trip of Non Essential Load (NEL) groups is carried out in order to protect the busbar. Each HMC6
controller is able to handle three non-essential load trip (NEL). Trip priority is: NEL1> NEL2> NEL3. If the
active power or current has exceeded the set value, the corresponding NEL will trip after the trip delay, and
the warning alarm will be initiated. NEL trip can be reuse after alarm response only.
