8.4.5 HRSH300-A-20/40-

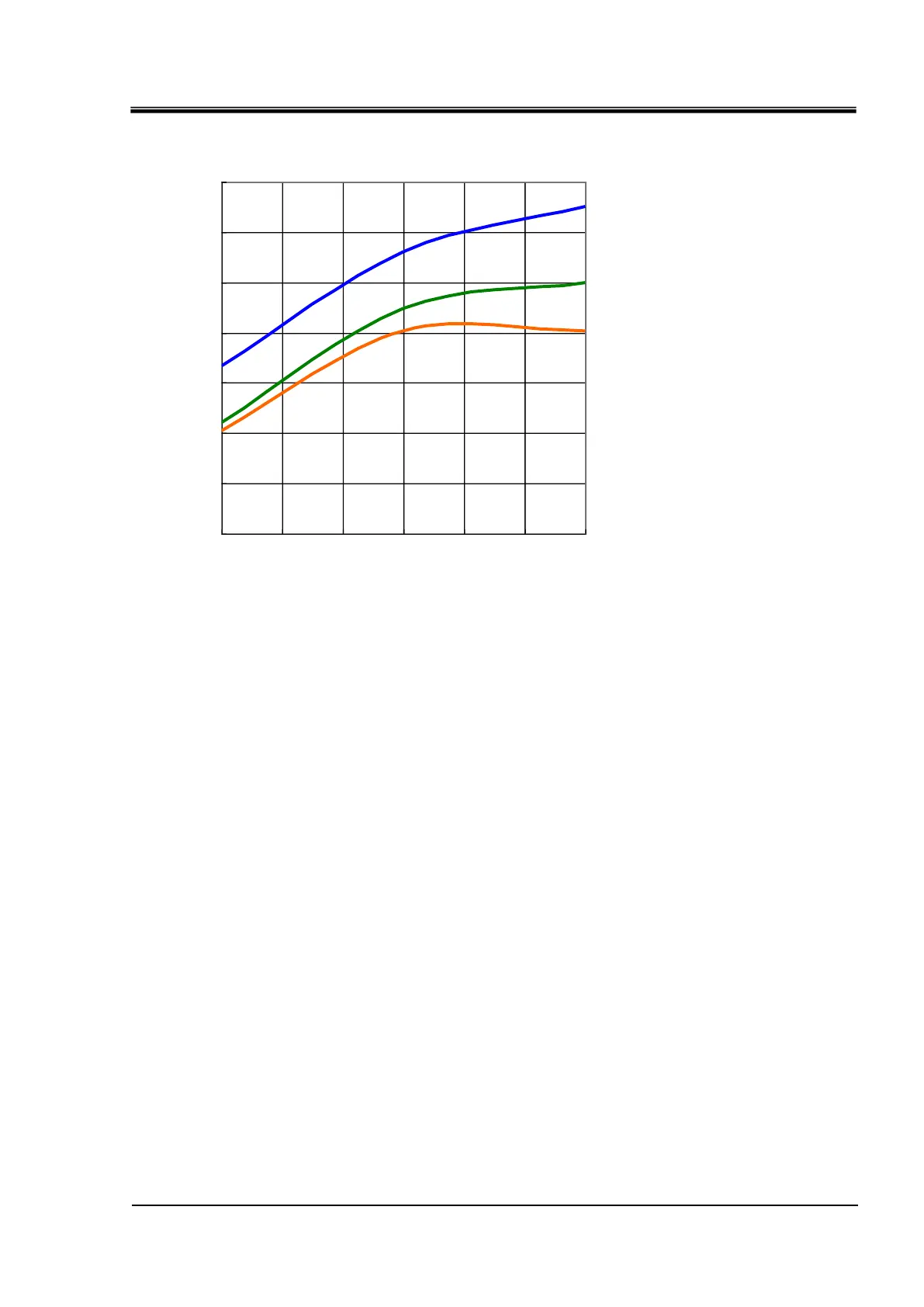

Fig. 8-11: Cooling Capacity (HRSH300-A-20/40-)
0
5
10
15
20
25
30
35
5 10 15 20 25 30 35
Circulating fluid temperature [
o
C]
Cooling capacity [kW]
Ambient temperature: 32
o
C
Ambient temperature: 43
o
C
Ambient temperature: 45
o
C
