Chapter 5 Display and Setting of Various Functions
HRSH Series 5.8 Ready Completion (TEMP READY) Signal
5-19

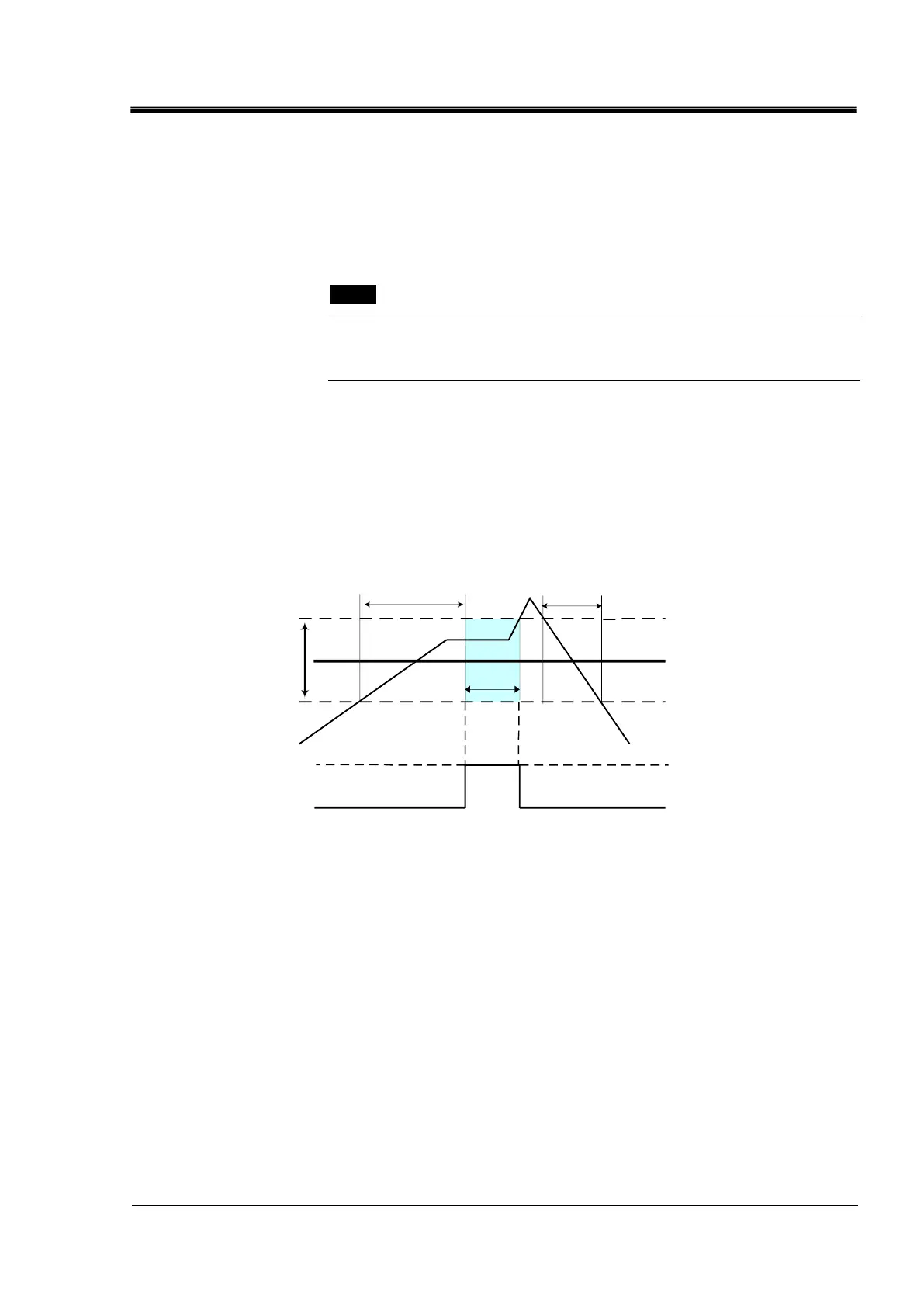

Circulating fluid
Set temperature 20
o
C
Ready Completion Signal
Upper limit tenp. 22
o
C
READY band width
±2
o
C
Circulating fluid
Temparature
60 sec.
Shorter than
60sec.
Ready Completion
(TEMP READY)
Signal
Signal On
Signal OFF
Ready Completion Signal
lower limit tenp. 18
o
C
5.8 Ready Completion (TEMP READY) Signal
5.8.1 Ready completion (TEMP READY) signal
This function sets a bandwidth for the set circulating fluid temperature (range
between the upper and lower limit temperatures) to notify the user by
communication that the circulating fluid temperature has reached the band
range. The default setting of this function is “OFF”.
[Tips]
This function is available when contact input/output and serial communication
is being used. Refer to the Communications Operation Manual for further
details.
An example is shown below:
Set circulating fluid temperature:
20
o
C
READY bandwidth (range between the
upper and lower limit temperatures):
±2
o
C
READY time:
60 seconds
Preparation for operation will be completed 60 seconds after the circulating
fluid temperature reaches the range of 18
o
C to 22
o
C.
