HRSH Series 8.4 Cooling Capacity
8-17
8.4.8 HRSH200-W-20/40-

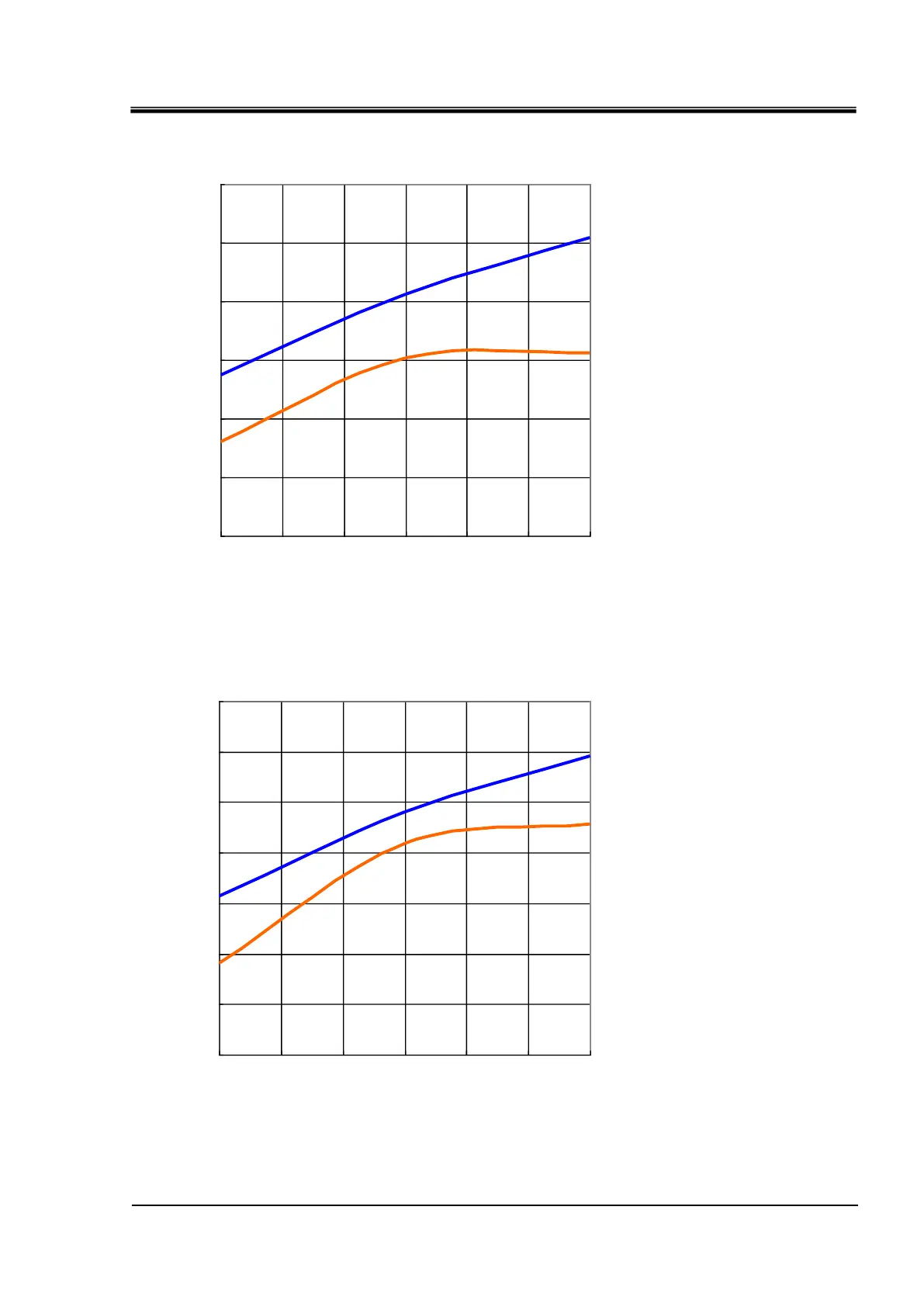

Fig. 8-14: Cooling Capacity (HRSH200-W-20/40-)
8.4.9 HRSH250-W-20/40-
Fig. 8-15: Cooling Capacity (HRSH250-W-20/40-)
0
5
10
15
20
25
30
35
5 10 15 20 25 30 35
Circulating fluid temperature [
o
C]
Cooling capacity [kW]
0
5
10
15
20
25
30
5 10 15 20 25 30 35
Circulating fluid temperature [
o
C]
Cooling capacity [kW]
Facility water temperature: 32
o
C
Facility water temperature: 40
o
C
Facility water temperature: 32
o
C
Facility water temperature: 40
o
C
