HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
5.9 Offset Function HRSH Series
5-26

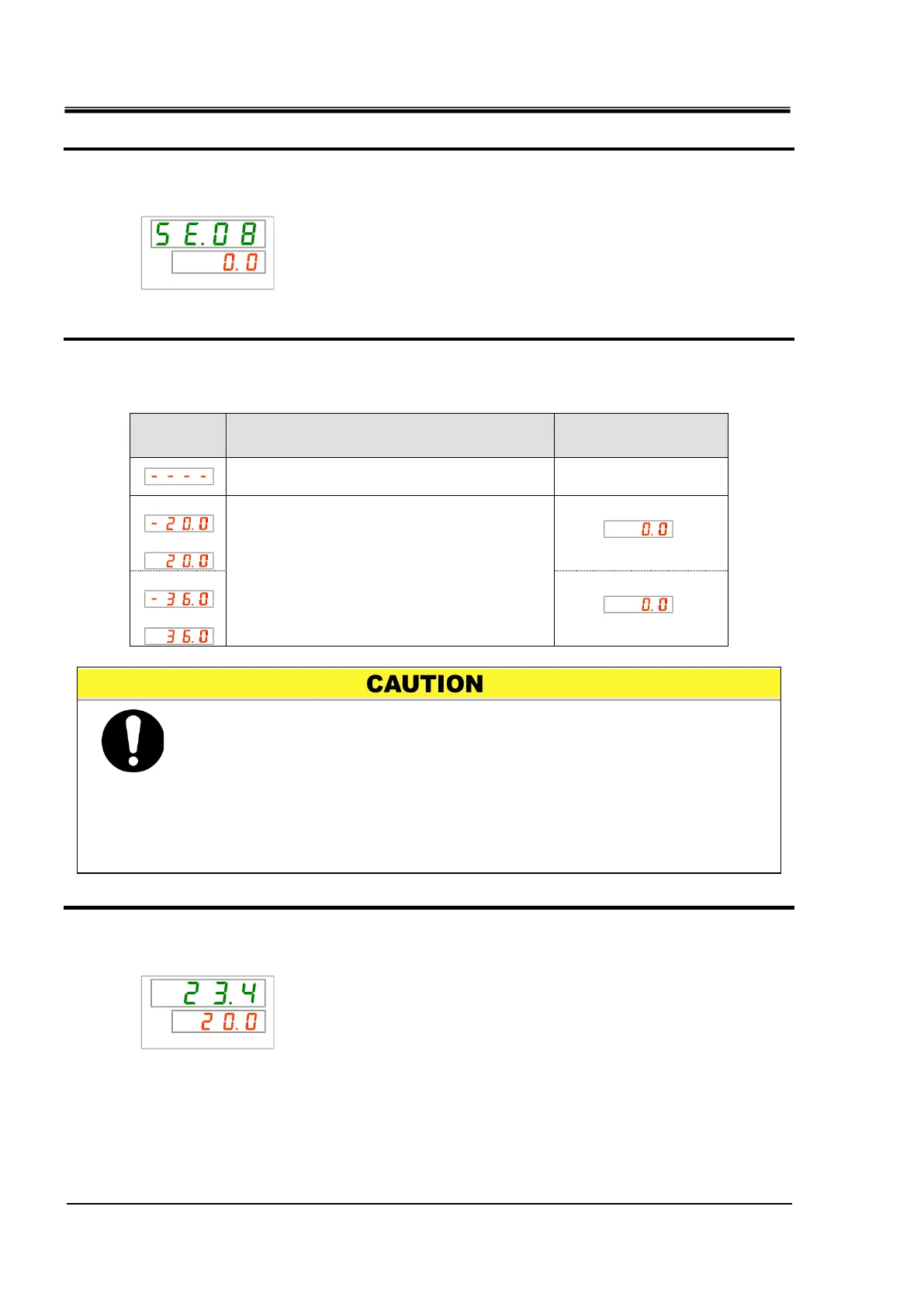

Setting/Checking: Offset temperature
4. Press the [SEL] key once.
Setting screen of offset temperature appears on the digital display.
5. Set offset temperature with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.9-4 Offset temperature setting
Set value
Explanation
Default
Setting and checking are not available when offset
mode setting is OFF.
Centigrade
to
Offset temperature is set.
Setting temperature unit for Centigrade: 0.1
o
C
Setting temperature unit for Fahrenheit: 0.1
o
F
Fahrenheit
to
6. Press the [MENU] key once.
Returns to the main display (which shows the circulating fluid temperature).
PV
SV
PV
SV
⚫ This function adjusts the offset temperature in accordance with the
circulating fluid discharge temperature.
⚫ Circulating fluid temperature is controllable in the range of 5.0
o
C to
35.0
o
C (41.0
o
F to 95.0
o
F).
⚫ Note that when the circulating temperature is set to 5.0
o
C (41
o
F) and
the offset temperature is set to -20.0
o
C (-36.0
o
F), some of the offset
modes automatically adjust the offset temperature to 0.0
o
C (0.0
o
F).
