GW2145 - GW1160 - GW4060 - GW4190
6.2.2 DETERGENT LEVEL SENSORS - OPTIONAL
The appliance can be fitted with level sensors integral in the detergent intake pipe, Smeg product "WD-LS xxx"
(Level Sensor; the value of xxx may vary depending on the suction nozzle configuration required, for GW1160,
GW4060: WD-LS3060).
Contact Smeg for advice about the accessory best suited to your needs and your device.
WARNING
The electrical connection to level sensors must be made using the terminal board provided inside
the rear crosspiece (each peristaltic pump has a terminal for connection of the relative level
sensor).
This procedure must be carried out by Smeg authorised technical staff.

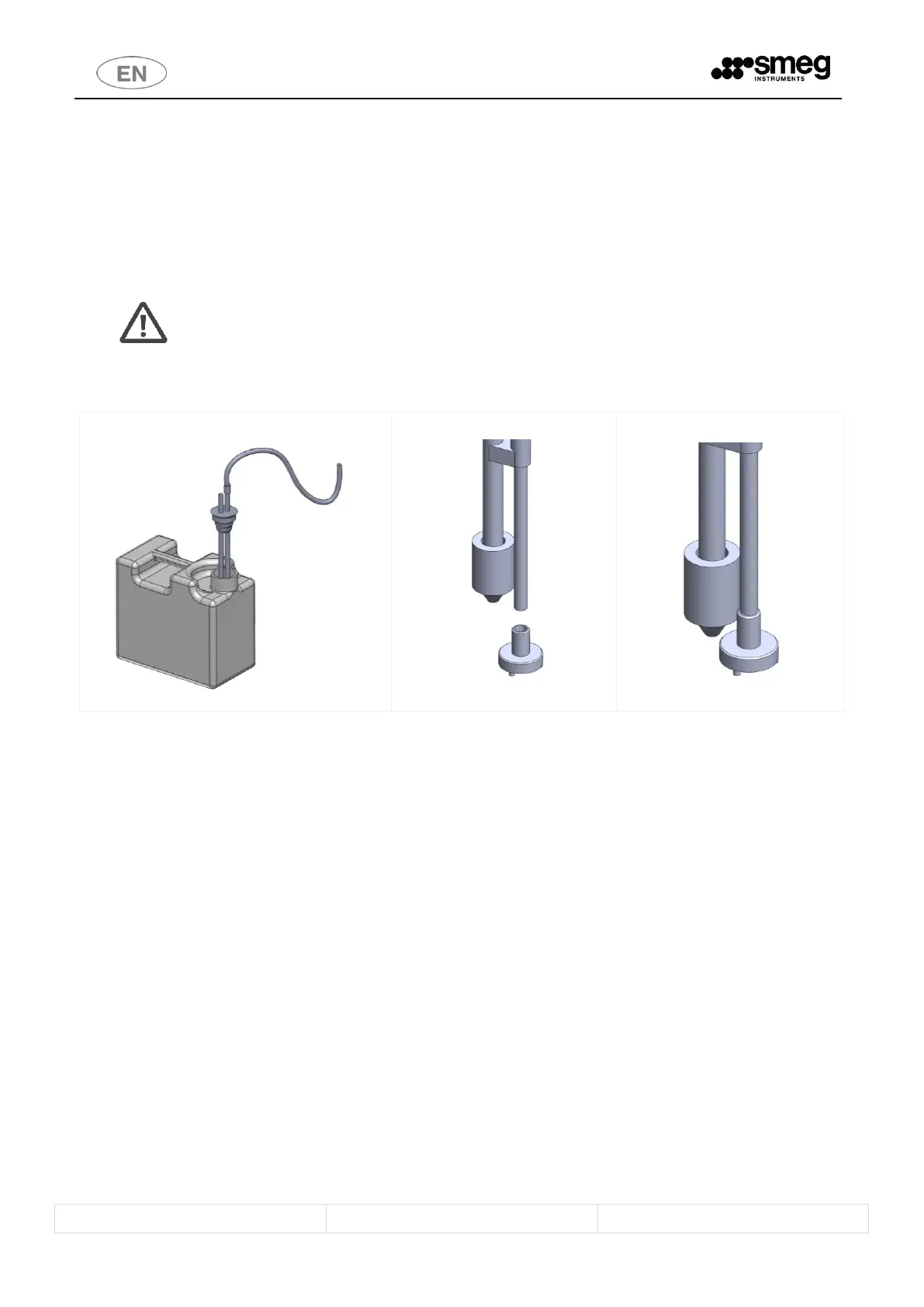

fig. 39 – Configuration with LEVEL SENSOR: Detergent suction nozzle with integral level sensor. The suction nozzle is complete with filter: make sure
that the filter is always correctly positioned to ensure no lumps are drawn in.
