11 PRODUCT DIMENSIONS - MEASUREMENTS IN mm
Preliminary note
The dimensions given below are nominal ones; when providing a housing space always consider at least + 5mm ( 0.2
inch ) per dimension to create a minimum space necessary, for the extraction of the machine from the housing, for
maintenance operations.
11.1 GW2145
The appliance can be requested with top for built-in installation for special requirements.
In this case, the product is 20 mm shorter than the stated height.
CONFIGURAZIONE
A
B
C
D
E
F
STANDARD
620
600
30
450
850
> 10
STANDARD + PAD1
730 / 770
600
30
450
850
>10
11.2 GW1160, GW4060 SERIES
The appliance can be requested with top for built-in installation for special requirements.
In this case, the product is 30 mm shorter than the stated height.

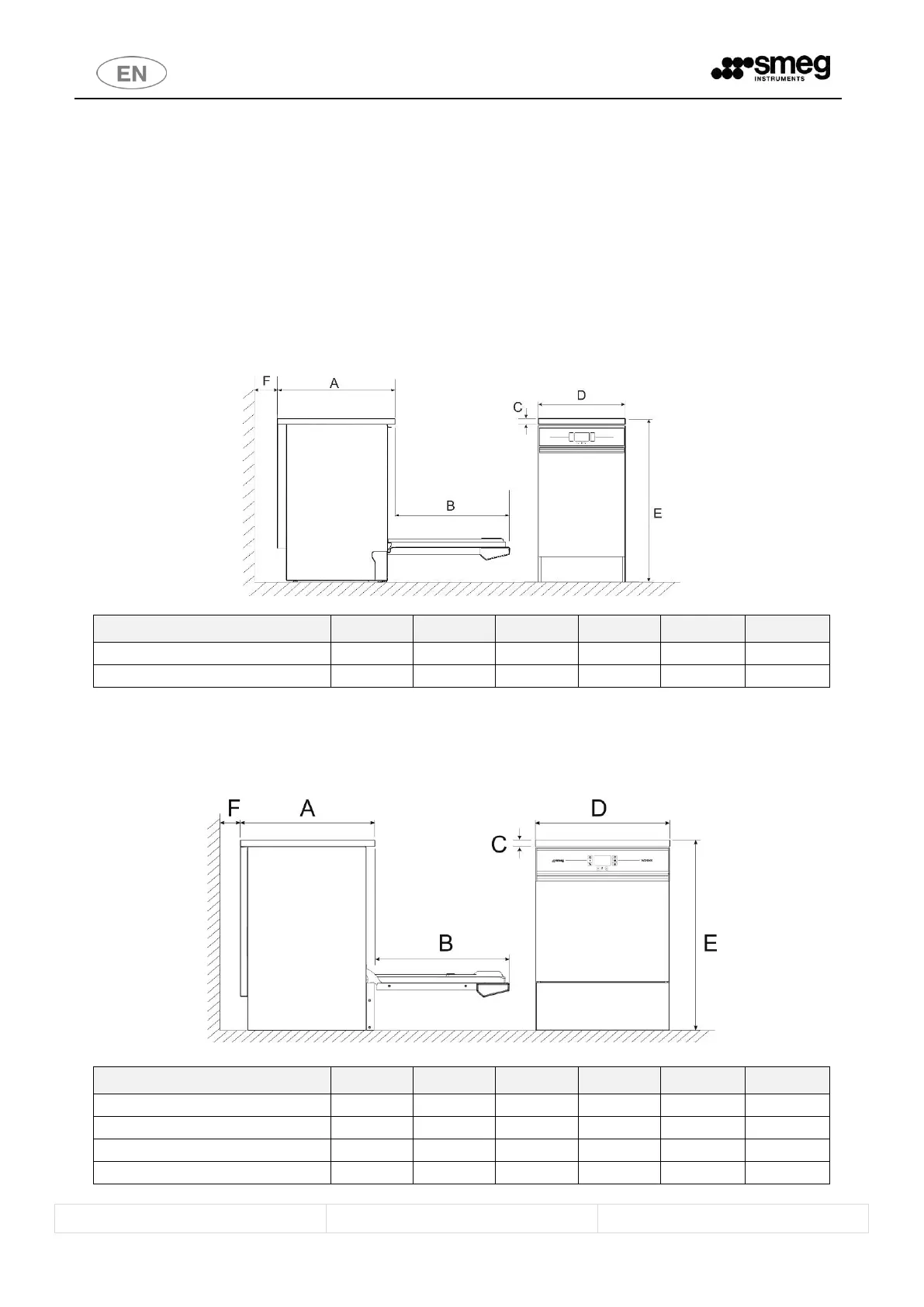

fig. 48 – Product overall dimension diagram
VERSION
A
B
C
D
E
F
STANDARD
600
600
30
600
850
> 10
STANDARD + AQUASTOP
600
600
30
600
857
> 10
STANDARD + PAD1
710 / 750
600
30
600
850
>10
STANDARD + P3
660
600
30
600
850
> 10
