14.2 WATER DRAIN
Appliance drain hoses:
Rubber fitting for hose connector diameter 21mm (1/2").
WATER DRAIN CONNECTION
The appliance is equipped with one or more drain hoses, depending on the model.
The drain hoses are identified as:
- d - appliance drain hose – d (drain)
- cd - steam condenser drain hose – cd (condenser drain)
The diagram and summary table are provided below.

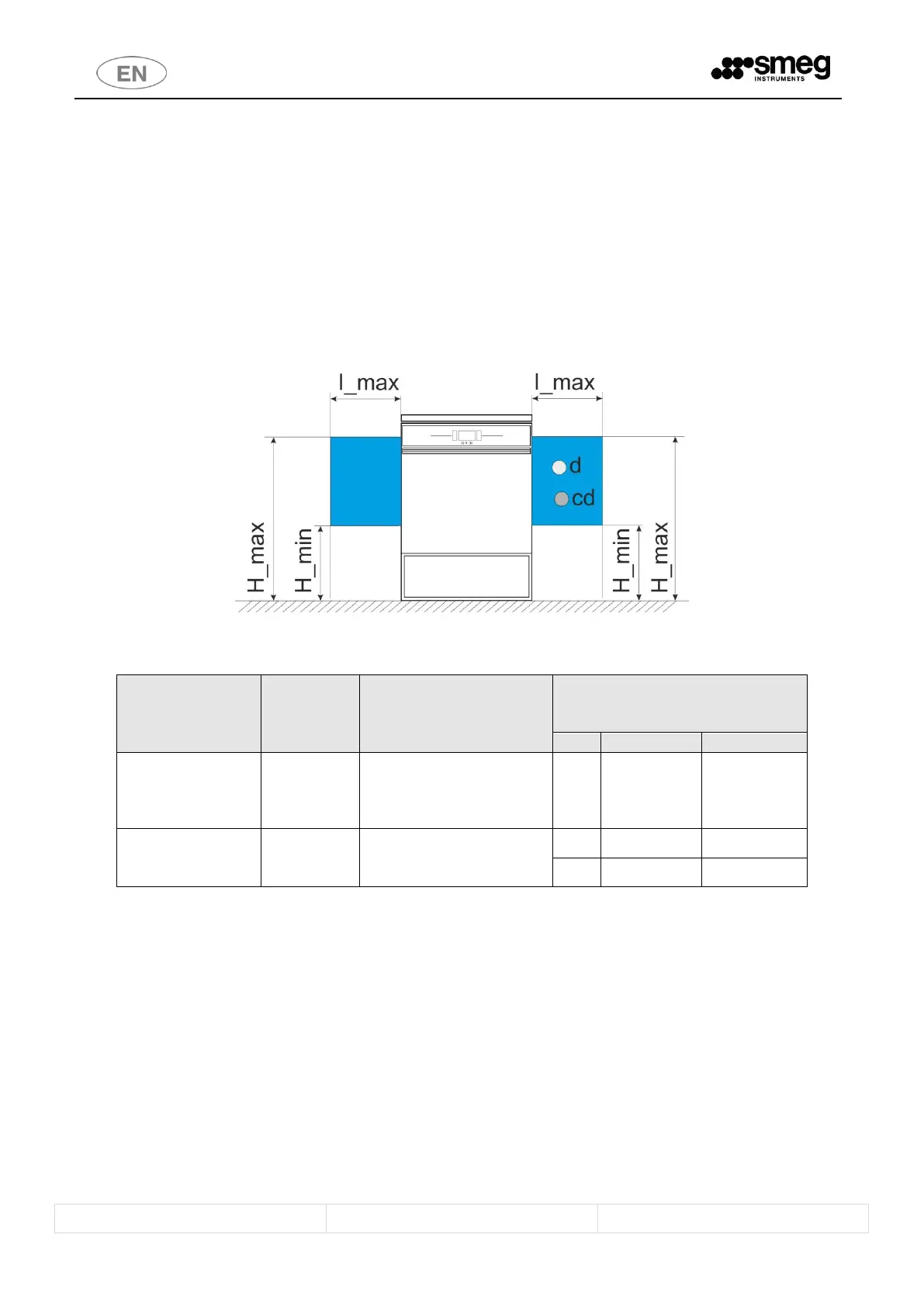

fig. 56 – Diagram. The water drain connections may be on the right or left of the appliance, always considering the maximum distance “I_max”.
MODELS
No. OF
DRAIN
HOSES
Distance "I_max"
Maximum Distance
between drain and side of
appliance [cm]
DRAIN TYPE AND HEIGHT “H”
ABOVE APPLIANCE INSTALLATION
SURFACE [cm]
Type
Hmin
Hmax
GW2145
GW1160 xxx
GW4060 xxx
GW4090 xxx
1
50
d
65
80
GW1160 Cxx
GW4060 Cxx
GW4090 Cxx
2
50
d
65
80
cd
65
80
Note about product “families”
Suffix "C" indicates "equipped with steam condenser."
Any additional suffixes ".." may vary depending on the appliance version.
