10.2 PRODUCT DIMENSIONS - MEASUREMENTS IN MM
10.2.1 WD2145
The device can be requested with top for built-in installation for special requirements.
In this case, the product is 20 mm shorter than the stated height.
VERSION
A
B
C
D
E
F
STANDARD
620
600
30
450
850
> 10
STANDARD + PAD1
730 / 770
600
30
450
850
>10
10.2.2 WD1160, WD4060
The appliance can be requested with top for built-in installation for special requirements.
In this case, the product is 30 mm shorter than the stated height.

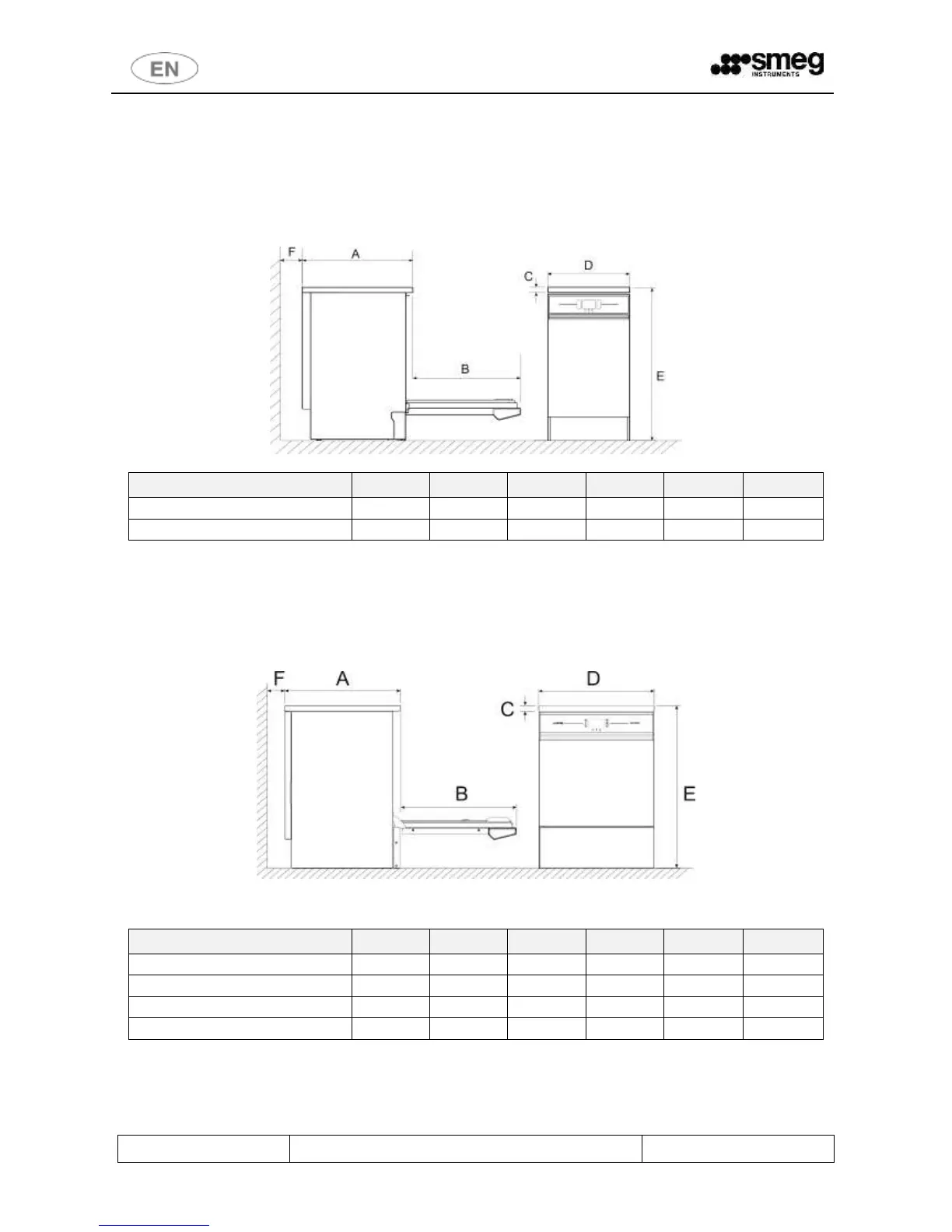

fig. 47 – WD1160, WD4060 - Product overall dimension diagram
VERSION
A
B
C
D
E
F
STANDARD
600
600
30
600
850
> 10
STANDARD + ACQUASTOP
600
600
30
600
857
> 10
STANDARD + PAD1
710 / 750
600
30
600
850
>10
STANDARD + P3
660
600
30
600
850
> 10
