10.5.6 WATER DRAIN
Appliance drain hoses:
Rubber fitting for hose connector diameter 21mm (1/2").
WATER DRAIN CONNECTION
The appliance is equipped with one or more drain hoses, depending on the model.
The drain hoses are identified as:
- d - appliance drain hose – d (drain)
- cd - steam condenser drain hose – cd (condenser drain)
The diagram and summary table are provided below.

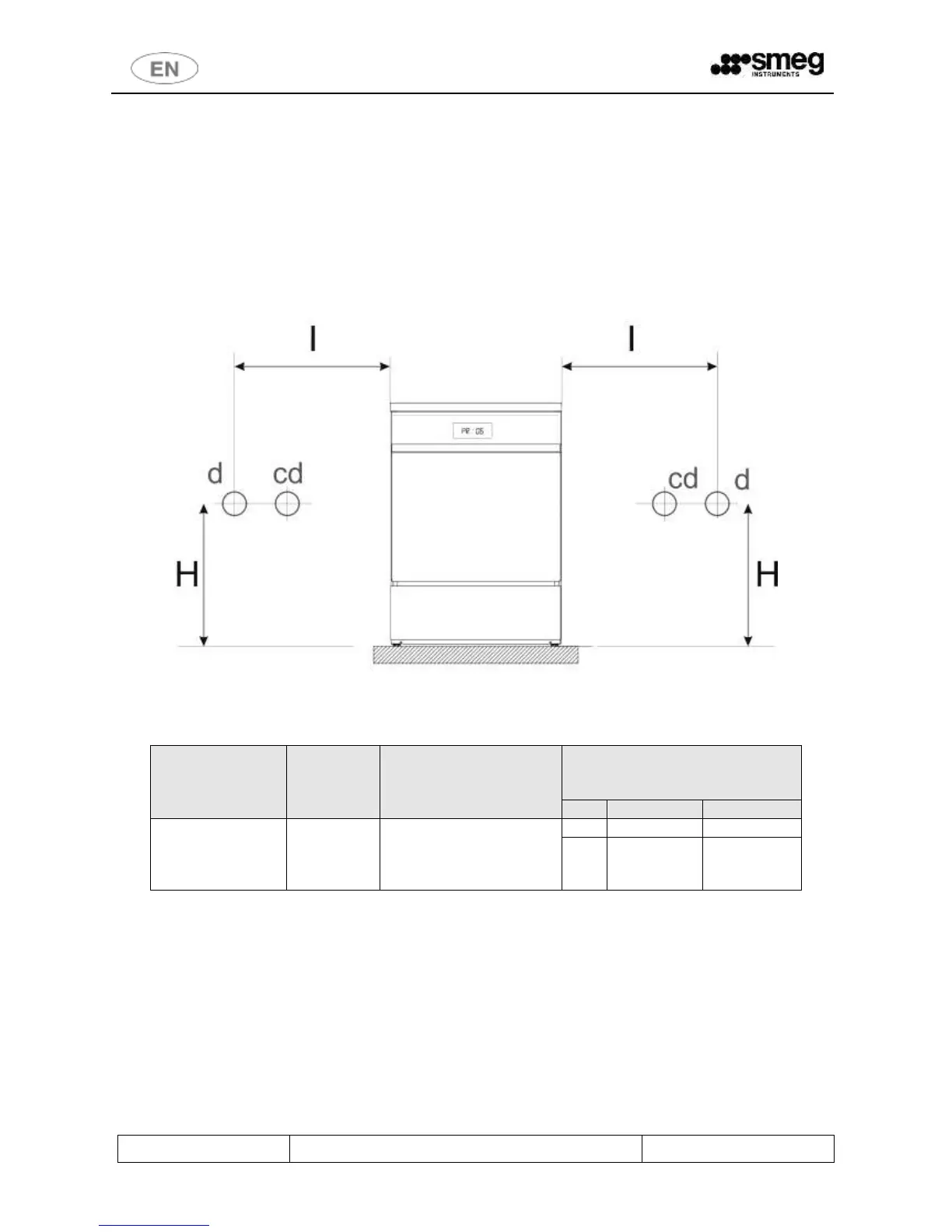

fig. 52 – Diagram. The water drain connections may be on the right or left of the appliance, always considering the maximum distance “I
