Smeg WD2145 - Rear Appliance Connections

User Manual
WD2145-WD1160-WD4060-WD4190
Page 74 - 85
LIFTING AND TRANSPORT
Before shipment from the factory, the base of the appliance is fixed to a pallet used for both lifting and transport.
When moving the appliance around, a forklift truck or pallet truck must be used.

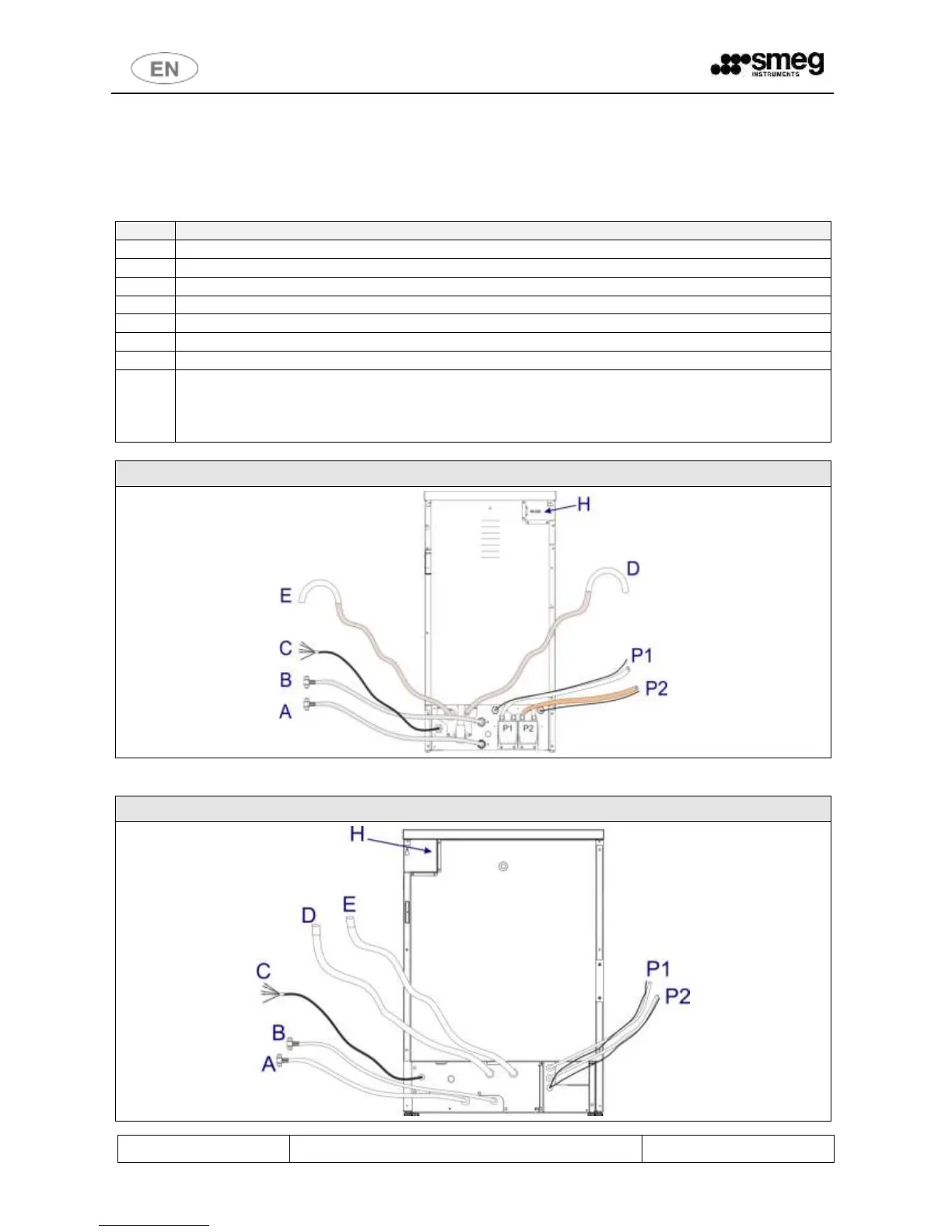

10.3.1 CONNECTIONS ON THE BACK OF THE APPLIANCE
ID.
DESCRIPTION
A
Demi water intake hose
B
Mains water intake hose
C
Electricity supply cable
D
Steam condenser exhaust hose
E
Appliance drain hose
P1
Peristaltic pump P1 intake hose and P1 can detergent level sensor cable
P2
Peristaltic pump P2 intake hose and P2 can detergent level sensor cable
H
RS-232 port for PC or printer connection
Cables with connectors for correct connection are provided with the following accessories:
1. “WD-PRINTE” printer
2. PC connection cable, for communication of data by means of TRACELOG software.
WD2145
WD1160, WD4060
