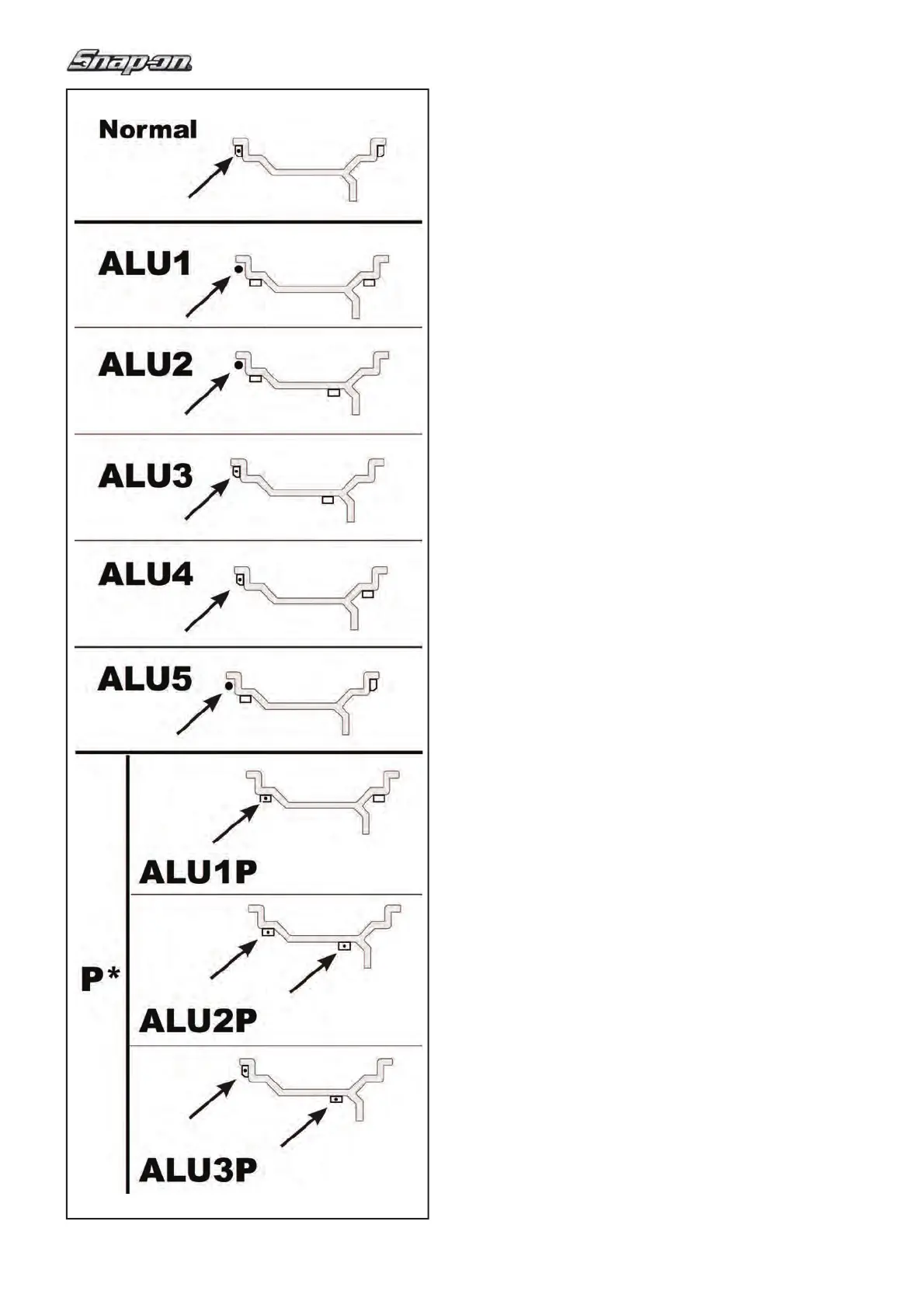

5.3.2 Data required for weight application
Normal Offset Distance (rim machine)
Rim nominal diameter
Rim nominal width
Alu 1 Offset Distance (rim machine)
Rim nominal diameter
Rim nominal width
Alu 2 Offset Distance (machine rim)
Rim nominal diameter
Alu 3 Offset Distance (rim machine)
Rim nominal diameter
Alu 4 Offset Distance (rim machine)
Rim nominal diameter
Rim nominal width
Alu 5 Offset Distance (rim machine)
Rim nominal diameter
Rim nominal width
Alu 1P Position for weight application on the left
shoulder
Rim nominal width
Alu 2P Weight application positions
Alu 3P Weight application position
*position detected by the gauge arm for weight
application
