16
EEWB334A
P3
P5
P7
P4
P6
P8
P11
P13
P12
P1
P2
A
A
B
C
C
• Pictographs •

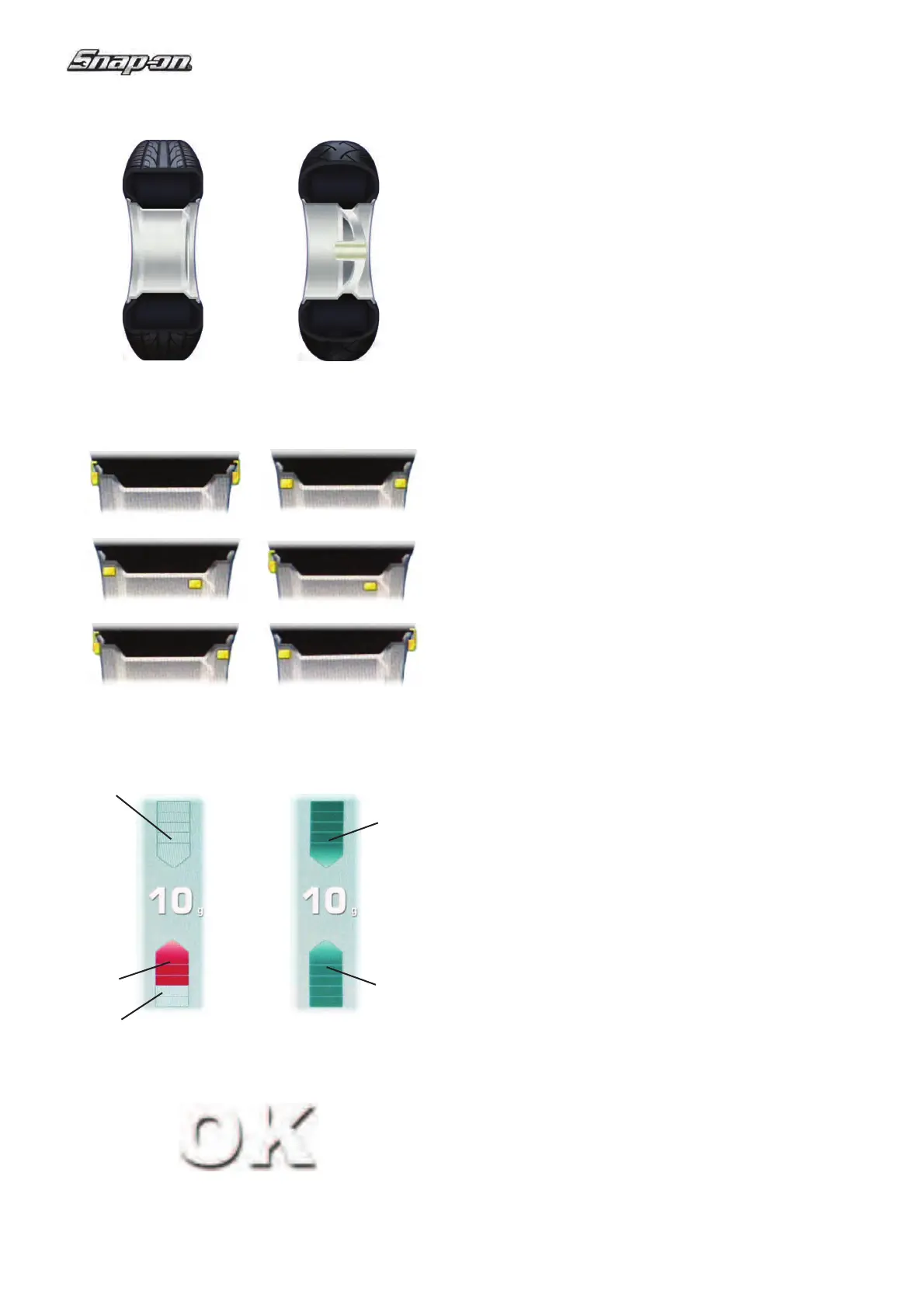

4.2 Pictographs – Symbols
Pictographs are viewed on the screen in all ! elds: In
i
nformation ! elds, menu ! elds, and in the display ! eld.
P1 Wheel type 1 – standard - nominal size in inches
or millimetres
P2 Wheel type 2 - motorcycle wheel
P3 Alu 0 - normal - Standard balancing mode
P4 Alu 1
P5 Alu 2,
Alu 2P
P6 Alu 3, Alu 3P
P7 Alu 4
P8 Alu 5
P11 Display of inbalance measured and direction
indicator (red arrows or arrows head)
A
No color: greater distance from position
B Red: rotation direction to reach the position, the
higher the number of lit segments the more the
wheel must be rotated.
P12 Correction position reached (green arrows)
C Green: compensation position reached, hold the
wheel in this position to apply the weight.
P13 C
orrection position for both correction planes
reached.
