Snap-On EEWB334A - Weight Application and Measurement Methods

23
EEWB334A
5.3 W e i g h t a p p l i c a t i o n a n d
Measurement methods

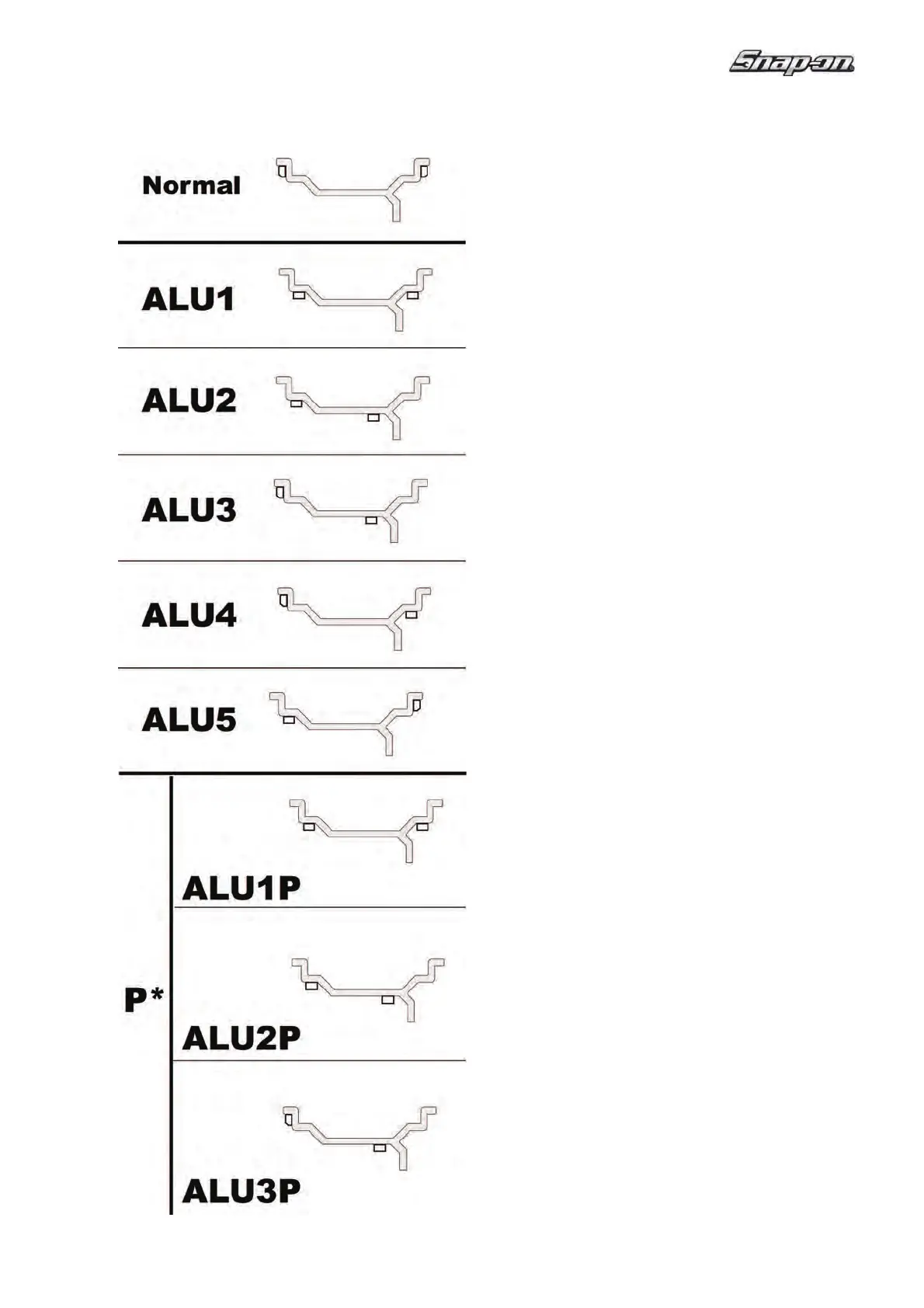

5.3.1 Weight application positions
Normal Standard positioning of weights, spring
weights on the rim edges (steel).
Alu 1 Symmetrical application of stick-on weights
on rim shoulders (aluminium).
Alu 2 Stick-on weights - Stick-on weight on rim
shoulder, stick-on weight hidden inside rim
channel (aluminium).
Alu 3 Spring weight on rim left edge, stick-on
weight inside rim channel (aluminium).
Alu 4 Spring weight on rim left edge, stick-on
weight on rim right shoulder (aluminium).
Alu 5 Spring weight on rim right edge, stick-on
weight on rim left shoulder (aluminium).
Alu 1P Stick-on weights - Stick-on weights on rim
shoulders (aluminium).
Alu 2P Stick-on weights - Stick-on weight on rim
shoulder, stick-on weight hidden inside rim
channel (aluminium).
Alu 3P Spring weight on rim left edge, stick-on
weight inside rim channel (aluminium).
*position detected by the gauge arm for weight
application
