CHAPTER 4
DIAGNOSTICS
The Diagnostics menu offers the technicians tools to troubleshoot and diagnose problems
with the aligner only. These diagnostic routines will not diagnose all problems that could
arise. The technician should also become familiar with the proper hookup and voltage that
is supplied to this unit.
Before troubleshooting the V3D Pro42 UHR system it is very important that you check to make sure the cor-
rect wheel clamps are selected in the Preference Menu. It is possible that a user could inadvertantly change
the wheel clamp type not knowing the consequences. This could cause the service technician to improperly
troubleshoot and diagnose a problem. Having the incorrect wheel clamp may be the problem.

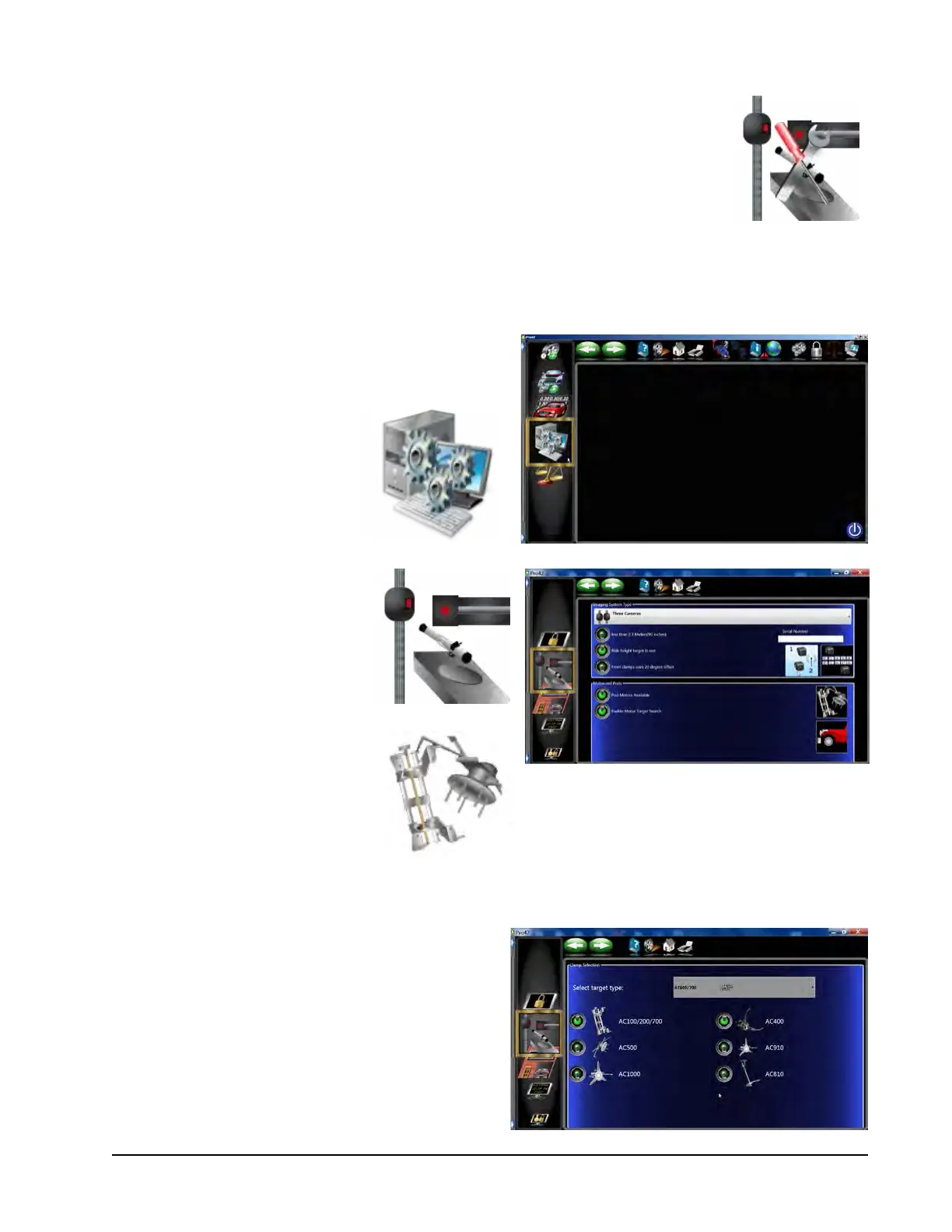

1. From the Main Menu select the Preference Icon.
2. Select the System Conguration
Icon.
3. Click on the “Clamp Selection”
Icon.
4. If the AC200 wheel clamp is selected no other wheel
clamp is available.
There are several types of wheel clamps.
To Next Page
