Diagnostics
ALIGNER DIAGNOSTIC
The information from this screen is used for
both eld service and engineering.

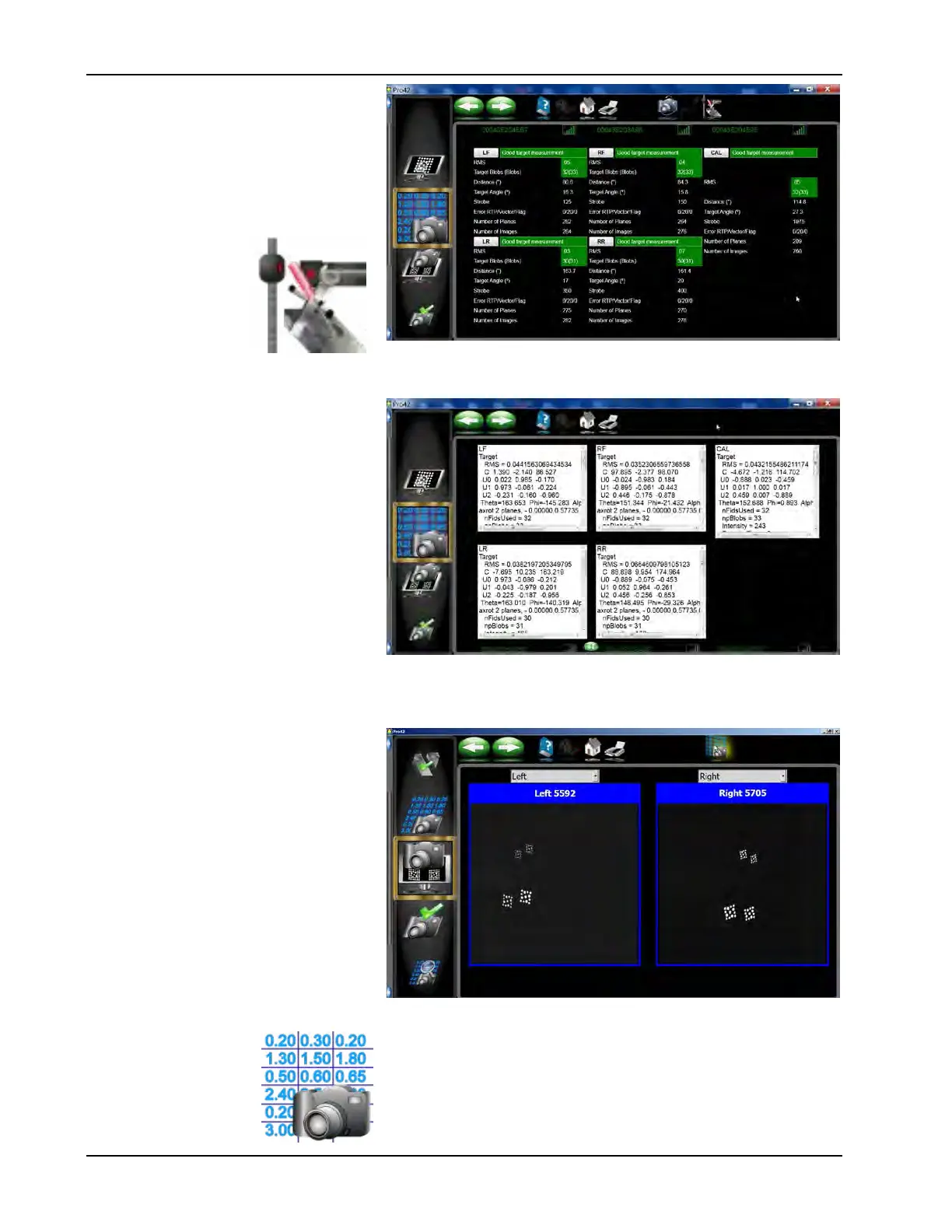

CAMERA VIEW
This screen shows the view as seen by
the camera. This is a good tool to use to
verify live images. The user can also use
the <CTRL-ALT-P> function to capture im-
ages and live data for export purposes.
This screen displays a count of the re-
ceived images over each sides display.
If one camera is sending a lot less im-
ages than another ±15%, this may be an
indication of a camera problem. However
in V3400 systems the cameras can be
turned on individually.
By clicking on the camera diagnostic icon on the toolbar the user can manually control camera functions.
