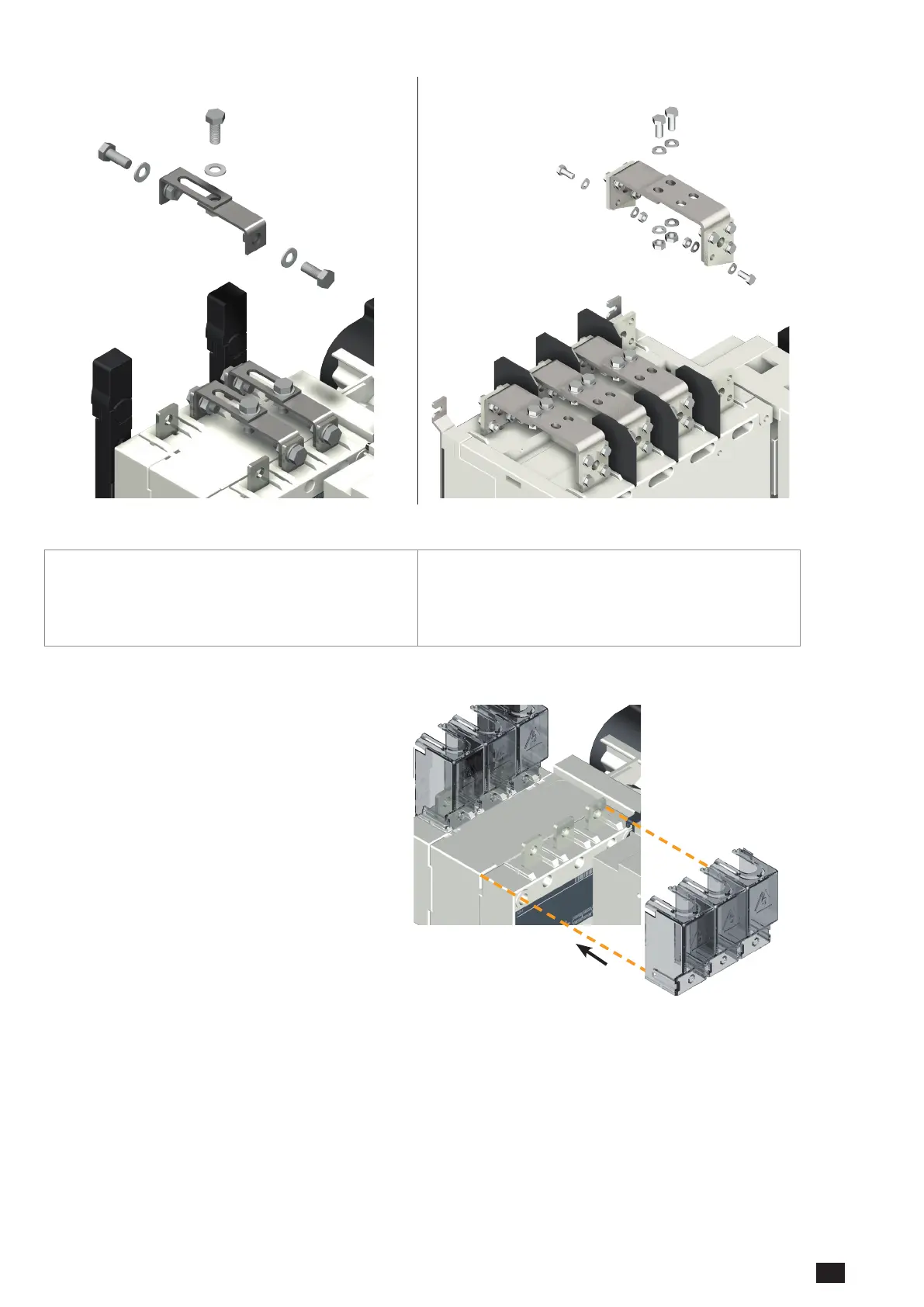

6.3.2. Bridging bar installation
125 A to 630 A 800 A to 1600 A
Itispossibletomountthebridgingbarsoneithersideoftheswitch
Recommended tightening torque:
M6: 4,5 N.m
M8: 8,3 N.m
M10: 20 N.m
M12: 40 N.m
Maximum tightening torque:
M6: 5,4 N.m
M8: 13 N.m
M10: 26 N.m
M12: 45 N.m
6.3.3. Terminal shrouds
Available from 125 A to 630 A
Frame B3 to Frame B5:
• Upstream, downstream, front or rear
mounting.
• When tted with bridging bars only
the front terminal shrouds are to be
installed.
