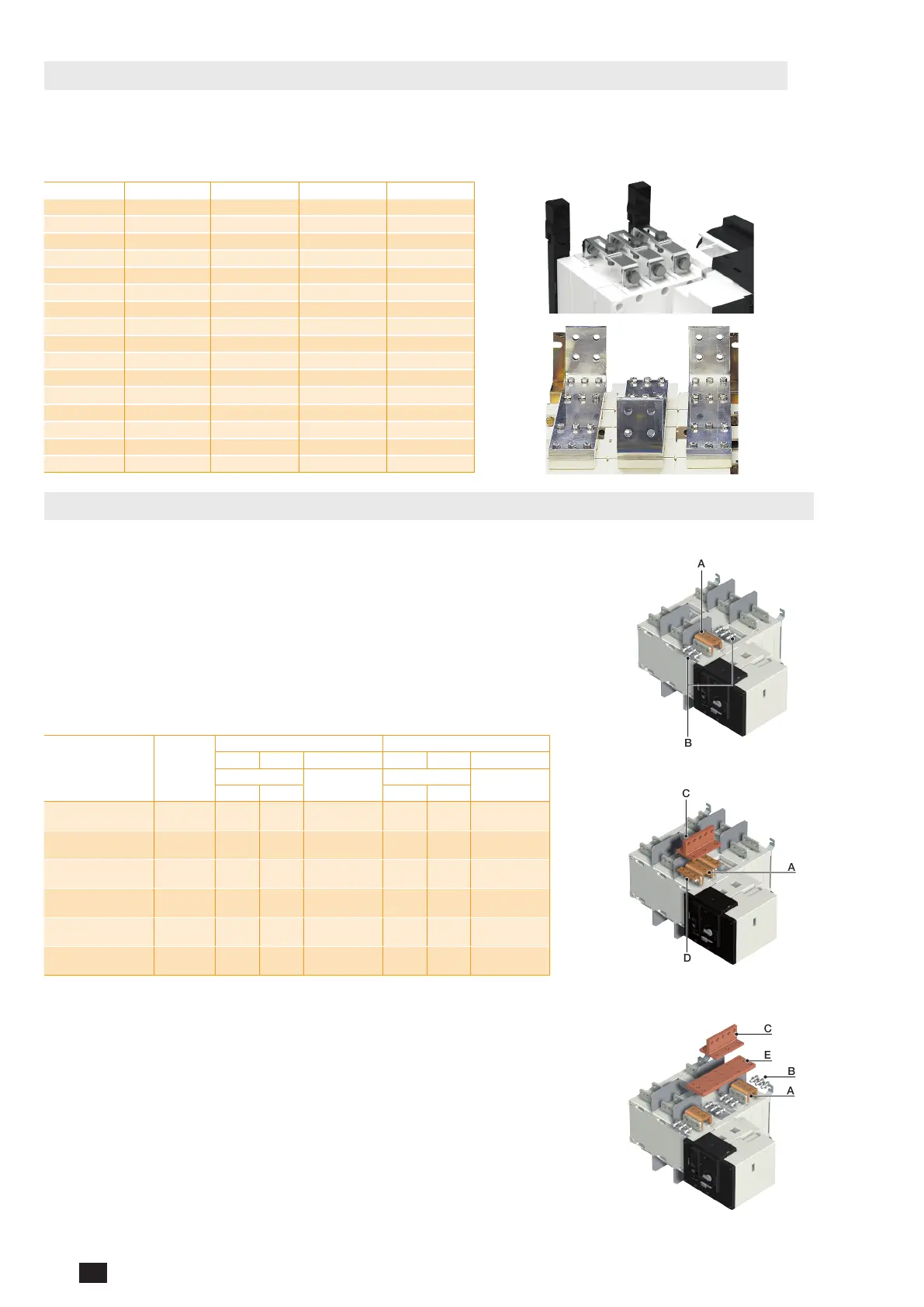

13.4. Bridging bars
Use
For bridging power terminals on the top or bottom side of the switch.
One piece required per pole.
Rating(A) Framesize No.ofpoles Section(mm) Reference
125 … 200 B3 3 P 20 x 2.5
4109 3019
125 … 200 B3 4 P 20 x 2.5
4109 4019
250 B4 3 P 25 x 2.5
4109 3025
250 B4 4 P 25 x 2.5
4109 4025
315 … 400 B4 3 P 32 x 5
4109 3039
315 … 400 B4 4 P 32 x 5
4109 4039
500 B5 3 P 32 x 5
4109 3050
500 B5 4 P 32 x 5
4109 4050
630 B5 3 P 50 x 5
4109 3063
630 B5 4 P 50 x 5
4109 4063
800 … 1000 B6 3 P 50 x 6
4109 3080
800 … 1000 B6 4 P 50 x 6
4109 4080
1250 B6 3 P 60 x 8
4109 3120
1250 B6 4 P 60 x 8
4109 4120
1600 B7 3 P 90 x 10
4109 3160
1600 B7 4 P 90 x 10
4109 4160
A
B
Fig. 1
A
D
C
Fig. 2
C
E
B
A
Fig. 3
Use
Enables:
- connection between the two power
terminals of the same pole for 2000 to
3200 A ratings (Fig. 1 and Fig 2)
- up or downstream bridging connection
(Fig. 3).
For 3200 A rating, the connection pieces
(part A) are delivered bridged from factory.
Bolt sets must be ordered separately.
Further details for these specific
accessories are available in the user guide
downloadable from www.socomec.com.
The numbers given in the table below refer to the contact connection.
Part
number
2000 – 2500 A 3200 A
Fig.1 Fig.2 Fig.3 Fig.1 Fig.2 Fig.3
Connection
OutagebridgeI
and II
Connection
OutagebridgeI
and II
Flat Onsite Flat Onsite
Connection
part A
2619 1200
1 1 2
(2)
included included included
Screw kit 35mm
part B
2699 1201
1
(1)
2
(2)
1
(1)
2
(2)
Screw kit 45mm
part B
2699 1200
1
(1)
1
(1)
T + screw kit
part C
2629 1200
1 1 1 1
Bracket + screw kit
part D
2639 1200
1 1
Bar + screw kit
part E
4109 0320
1 1
Then multiply the quantity by the number of contacts you need.
(1)
Choose the right length according to the width of the bars in place. If more than 20 mm, use
45 mm screws.
(2)
For the bridging setup you need 2 parts for each pole as the contacts of units I and II are
connected.
For example, for a 4 P 2500 A with onsite upstream connection (Fig. 2) and downstream
bridging (Fig. 3), please order
16 x 2619 1200 12 x 2629 1200
8 x 2699 1201 4 x 4109 0320
8 x 2639 1200
13.5. Copper bar connection kits
