6.3.9. Padlocking key interlocks

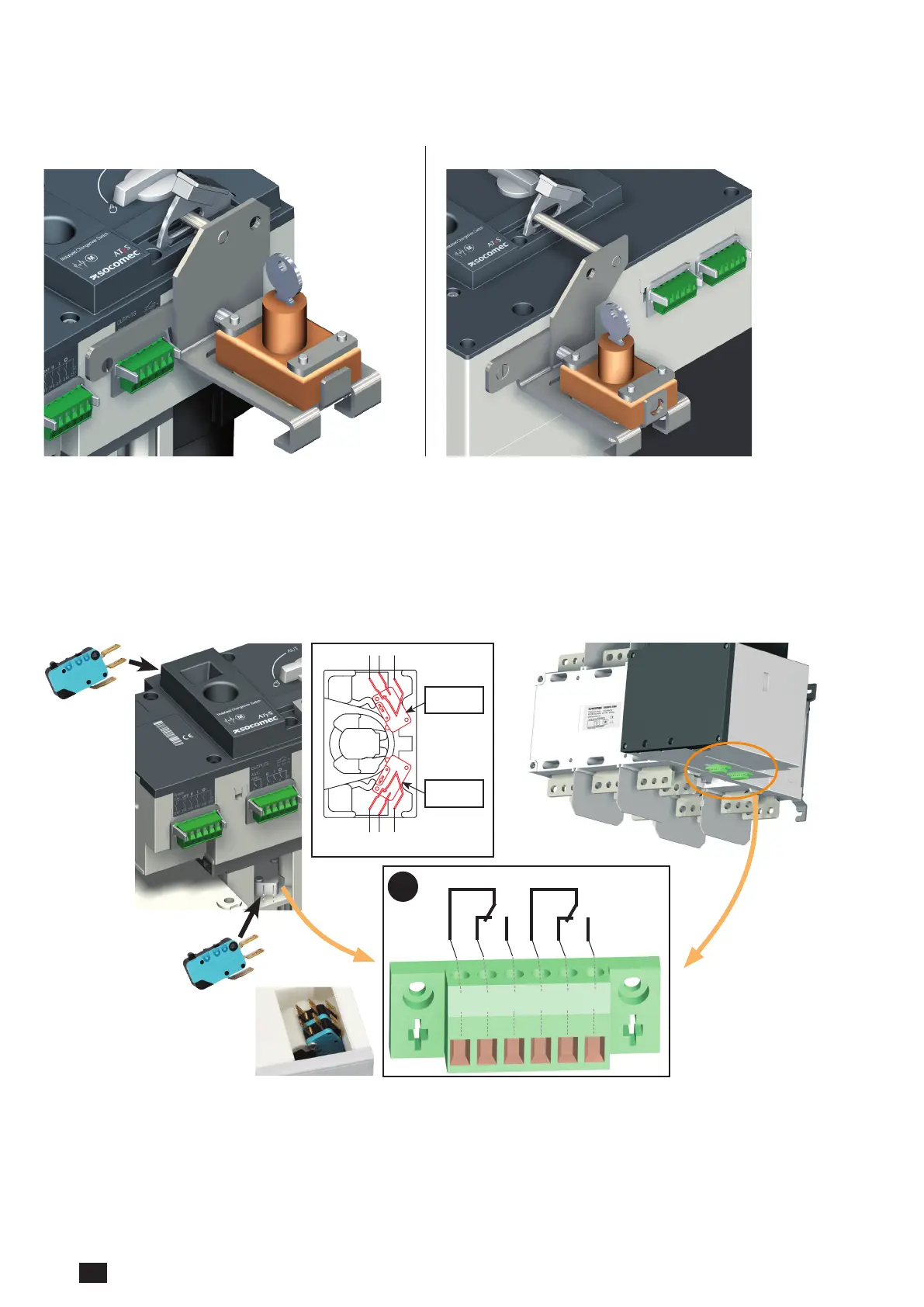

Intended for locking the electrical control and the backup control in position 0 using a RONIS EL11AP lock. As standard, key
locking is in the 0 position.
Optionally and when including the option “padlocking in 3 positions” key locking will be in positions I, 0 or II
125 A TO 630 A 800 A TO 3200 A
6.3.10. Additional auxiliary contacts
Intended for pre breaking and signaling of positions I and II:
A maximum of 2 NO/NC additional auxiliary contacts can be tted for each position. (Customer assembly may be
required.)
82
92
84
94
81
91
(fast-on)
Pos II
Pos I
81
81
82
84
91
92
94
Pos I
Pos II
82
84
91
92
94
2x
(1)
125 A to 630 A (Optional) 800 A to 1600 A (Optional)
2000 A to 3200 A (Standard)
(1)
When mounting one auxiliary contact on position I or II, use the short screws provided.
When mounting two auxiliary contacts on position I or II, use the long screws provided.
