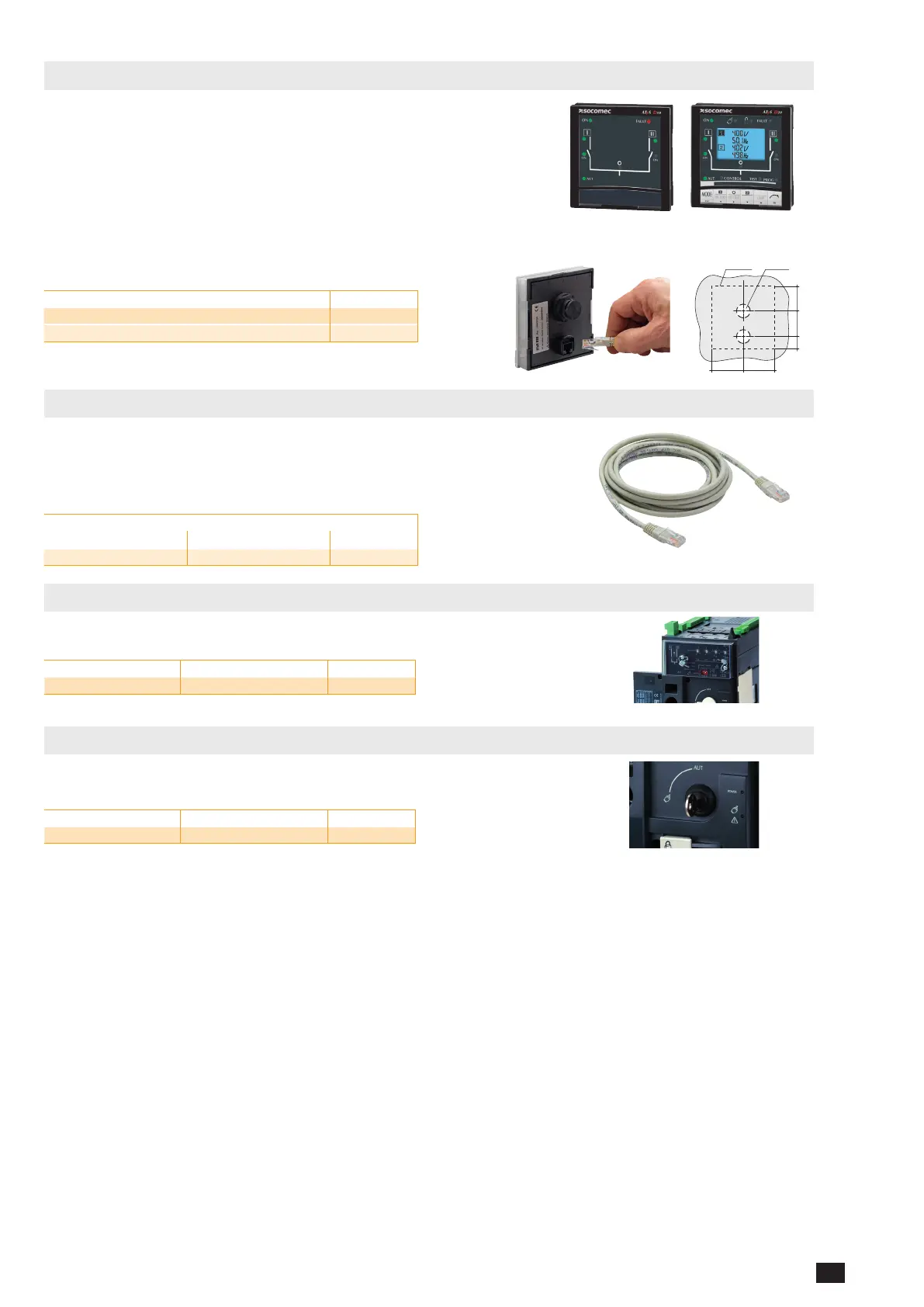

13.15. Remote interface
Interfaces are powered from the ATyS
Ø 22.5
40 3620
==
96 x 96
Drillings
Use
To remotely display source availability and
position indication typically used on the front
of a panel when the product is enclosed.
Interfaces are powered from the ATyS transfer
switch via the RJ45 connection cable.
Maximum cable length: 3 m.
D10 - for ATyS d, t and g
To display source availability and position
indication on the front panel of an
enclosure. Protection degree: IP21.
D20 - for ATyS p
In addition to the functions of the ATyS D10,
the D20 displays measurements and enables
control and configuration from the front of a
panel.
Protection degree: IP21.
Door mounting
2 holes Ø 22.5. ATyS transfer switch
connection via RJ45 cable, not isolated.
Cable available as an accessory.
Descriptionofaccessories Reference
D10
9599 2010
D20
9599 2020
13.16. Connection cable for remote interface
acces_209_a_2_cat
Use
To connect between a remote interface
(type D10 or D20) and an ATyS transfer
switch (ATyS d, t, g or p).
Characteristics
RJ45 8 wire straight-through, non isolated
cable. Length 3m.
ForATySd,t,gandp
Type Length Reference
RJ45 cable 3 m
1599 2009
atys_870_a
13.17. Sealable cover
Use - for ATyS t and g
Prevents access to the ATyS t and g configuration potentiometers and DIP switches (seals supplied).
Rating(A) Framesize Reference
125 … 3200 B3 … B8
9599 0000
atys_869_a
13.18. Auto/Manual key selector
Use
Replaces the standard Auto/Manual selector knob with a key selector, providing added
security by preventing unauthorised use of product. Customer assembly required.
Rating(A) Framesize Reference
125 … 3200 B3 … B8
9599 1007
