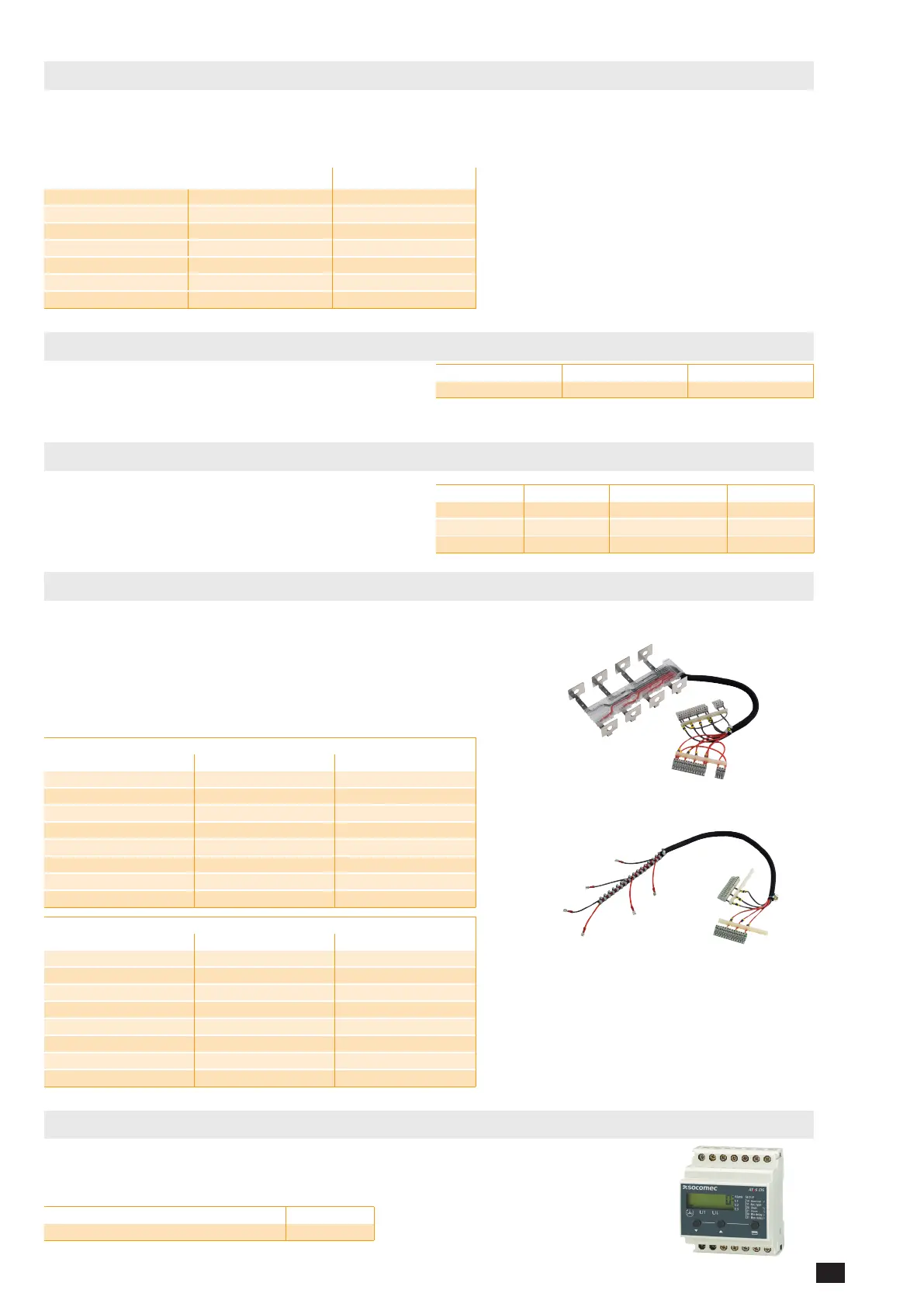

13.6. Solid neutral
Use
The connection kit enables the connection between the input and output
neutrals, without any need to switch the neutral.
Rating(A) Framesize Reference
125 … 200 B3
9509 0012
200 … 315 B4
9509 0025
400 B4
9509 0040
500 … 630 B5
9509 0063
800 … 1000 B6
9509 0080
1250 B6
9509 0120
1600 B7
9509 0160
13.7. Autotransformer 400/230 VAC
Use
For applications without neutral, this autotransformer
provides the 230 VAC required to power these ATyS
products.
Rating(A) Framesize Reference
125 … 3200 B3 … B8
1599 4064
13.8. DC power supply
Use
Allows an ATyS to be supplied from a 12, 24 or 48 VDC source.
To be positioned as close as possible to the DC power supply source.
Rating(A) Framesize Operatingvoltage Reference
125 … 3200 B3 … B8 12 VDC / 230 VAC
1599 5012
125 … 3200 B3 … B8 24 VDC / 230 VAC
1599 5112
125 … 1600 B3 … B7 48 VDC / 230 VAC
1599 5212
13.9. Voltage sensing and power supply kit
From 125 to 630 A
From 800 to 3200 A
ForATySt,gandp-3poles
Rating(A) Framesize Reference
125 … 200 B3
1559 3012
250 B4
1559 3025
315 … 400 B4
1559 3040
500 … 630
B5
1559 3063
800 … 1000 B6
1559 3080
1250 B6
1559 3120
1600 B7
1559 3160
2000 … 3200 B8
1559 3200
ForATySt,gandp-4poles
Rating(A) Framesize Reference
125 … 200 B3
1559 4012
250 B4
1559 4025
315 … 400 B4
1559 4040
500 … 630
B5
1559 4063
800 … 1000 B6
1559 4080
1250 B6
1559 4120
1600 B7
1559 4160
2000 … 3200 B8
1559 4200
Use
For power supply and voltage
measurement (4 wire, three-phase) for the
ATyS t, g and p.
Routing of the conductors is controlled,
which means that no specific protective
device is necessary for these connections.
The kit can be fitted on the top or bottom
of the switch.
Note: the 3-pole version does not
integrate the power supply.
13.10. Voltage relay
Use
The ATyS DS is a voltage relay for monitoring a
three-phase power supply source.
The fault relay will close as soon as a fault is
detected on the supply being monitored.
Rating(A) Reference
DS
192X 0056
